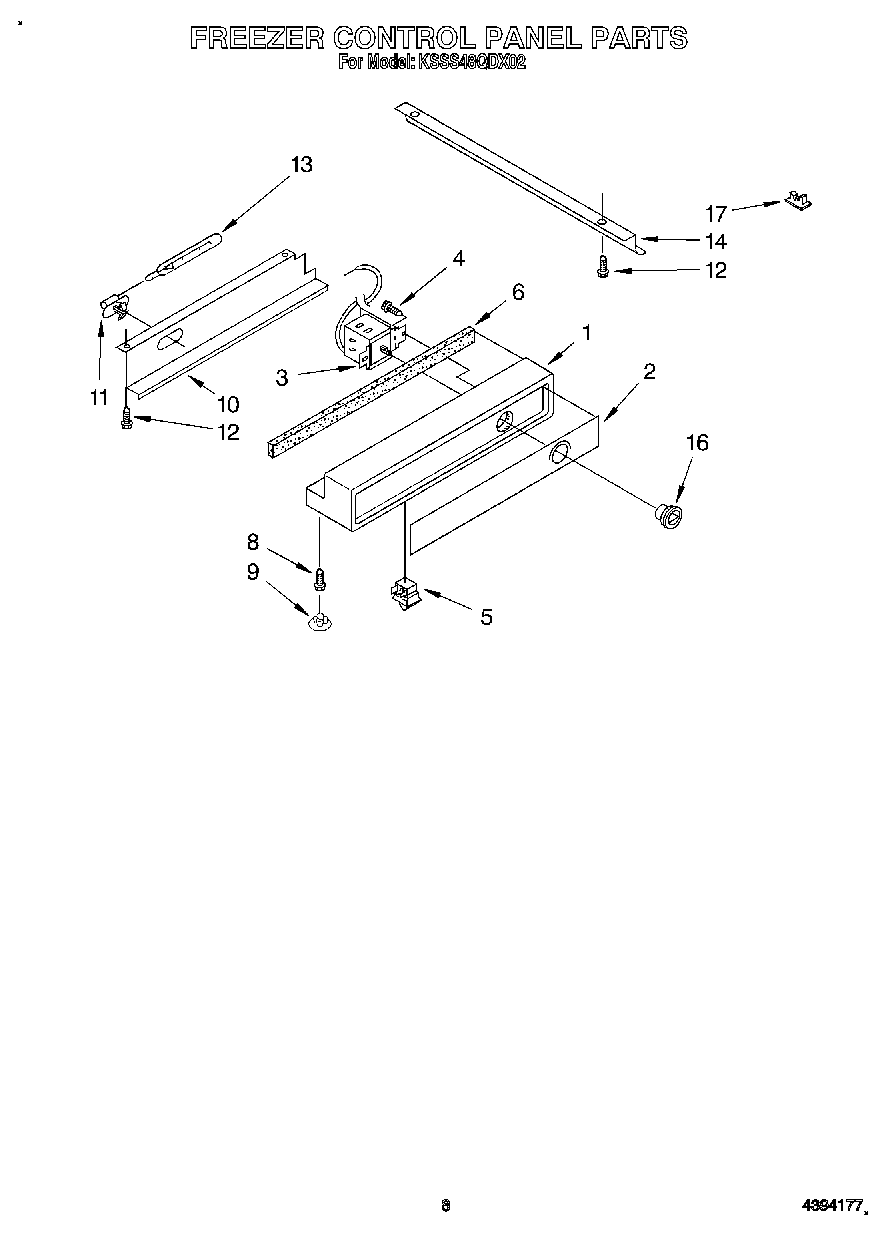

KSSS48QDX02 06 – FREEZER CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Inlay, Control Panel
3	WP1113466 Whirlpool Refrigerator Thermostat
4	Screw, 8-32 x 3/8
5	W11457217 Whirlpool Refrigerator Rocker Switch Combination
6	Seal, Control Panel
8	Screw (3)
9	Hole Plug (3)
10	Shield, Control Panel
11	Socket, Light
12	W11624204 Whirlpool Screw
13	WP548049 Whirlpool Refrigerator Light Bulb
14	Channel, Wiring
16	Knob, Thermostat
17	CLIP, WIRING
