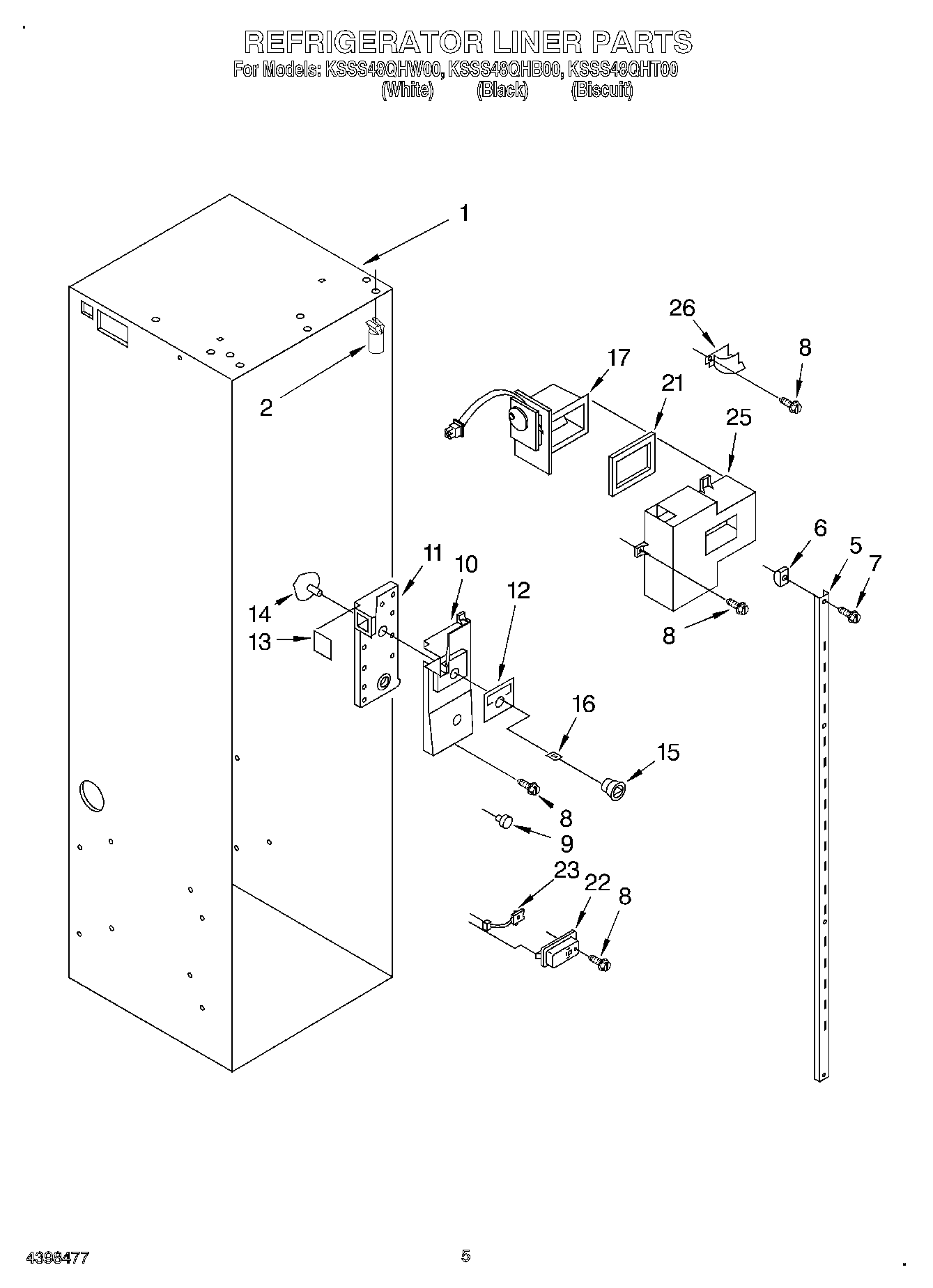

KSSS48QHB00 04 – REFRIGERATOR LINERadmin2025-04-26T12:14:07+00:00KSSS48QHB00 04 – REFRIGERATOR LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Spacer, Control Panel (3) |
| 5 | Ladder, Shelf (2) |
| 6 | 520965 Whirlpool Refrigerator Support |
| 7 | Screw, 8 x 1-1/4 (3) |
| 8 | W11624204 Whirlpool Screw |
| 9 | Hole Plug |
| 10 | Meat Pan, Air Duct Cover |
| 11 | Meat Pan, Air Duct |
| 12 | Inlay, Control Meat Pan |
| 13 | Seal, Air Duct |
| 14 | Damper Control, Meat Pan |
| 15 | Control Knob, Meat Pan |
| 16 | Retainer, Knob |
| 17 | Air Baffle Assembly |
| 21 | Seal |
| 22 | 1116793 Whirlpool Refrigerator Cover |
| 23 | Thermistor |
| 25 | Air Baffle Cover |
| 26 | 2003577 Whirlpool Refrigerator Guard |
