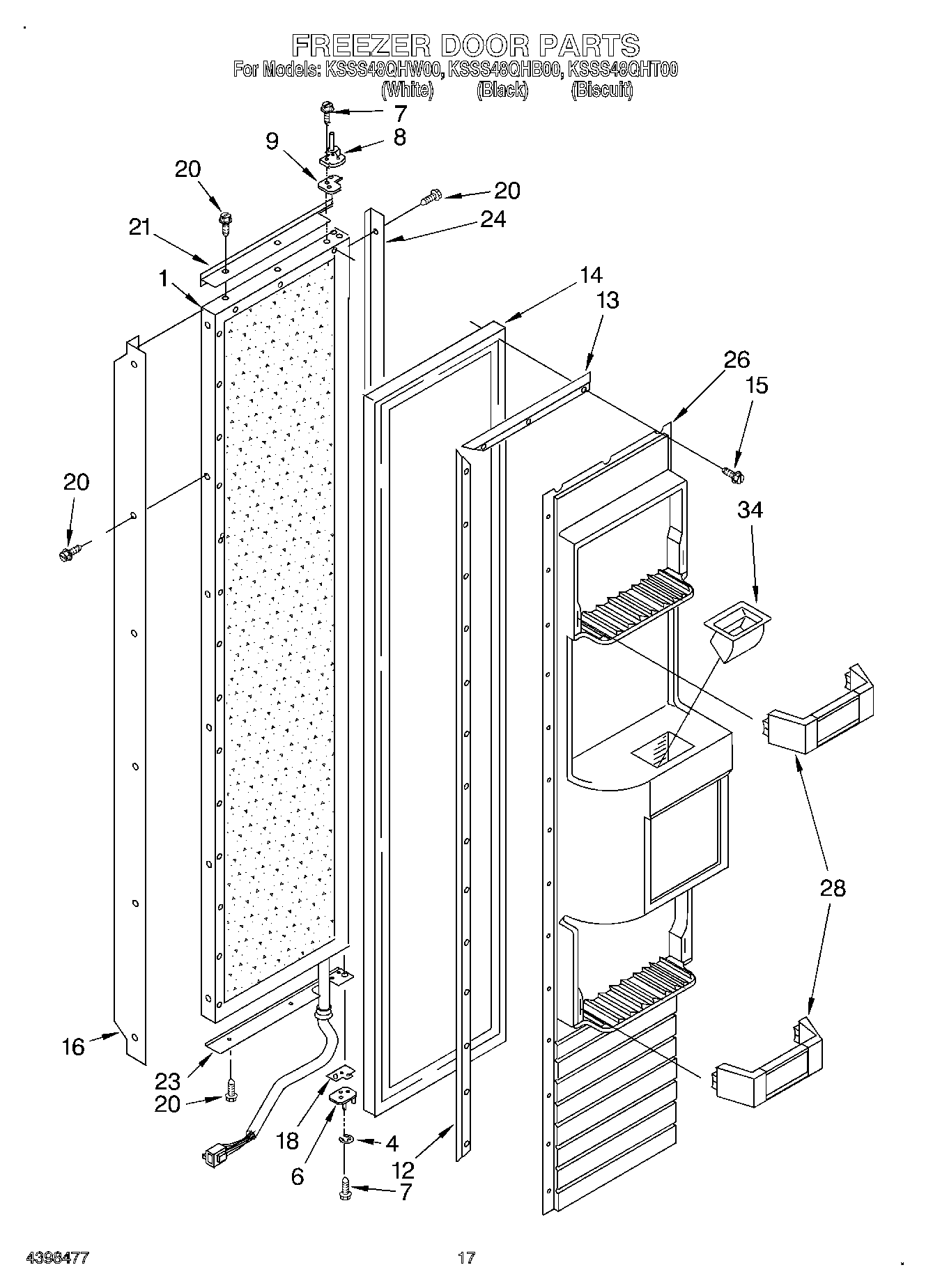

KSSS48QHT00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (Black)
1	Freezer Door Panel (Includes Insulation) (White)
1	Freezer Door Panel (Includes Insulation) (Biscuit)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188319A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Etched Aluminum)
16	Handle, Door (Biscuit)
16	Handle, Door (White)
18	Door, Spacer
20	Screw (White)
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim (Top) (Black)
21	Trim (Top) (Biscuit)
21	Trim (Top) (White)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (White)
23	Trim (Bottom) (Biscuit)
24	Trim (Side) (White)
24	Trim (Side) (Black)
24	Trim (Side) (Biscuit)
26	Panel, Interior Door
28	Shelf Bin (4)
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
