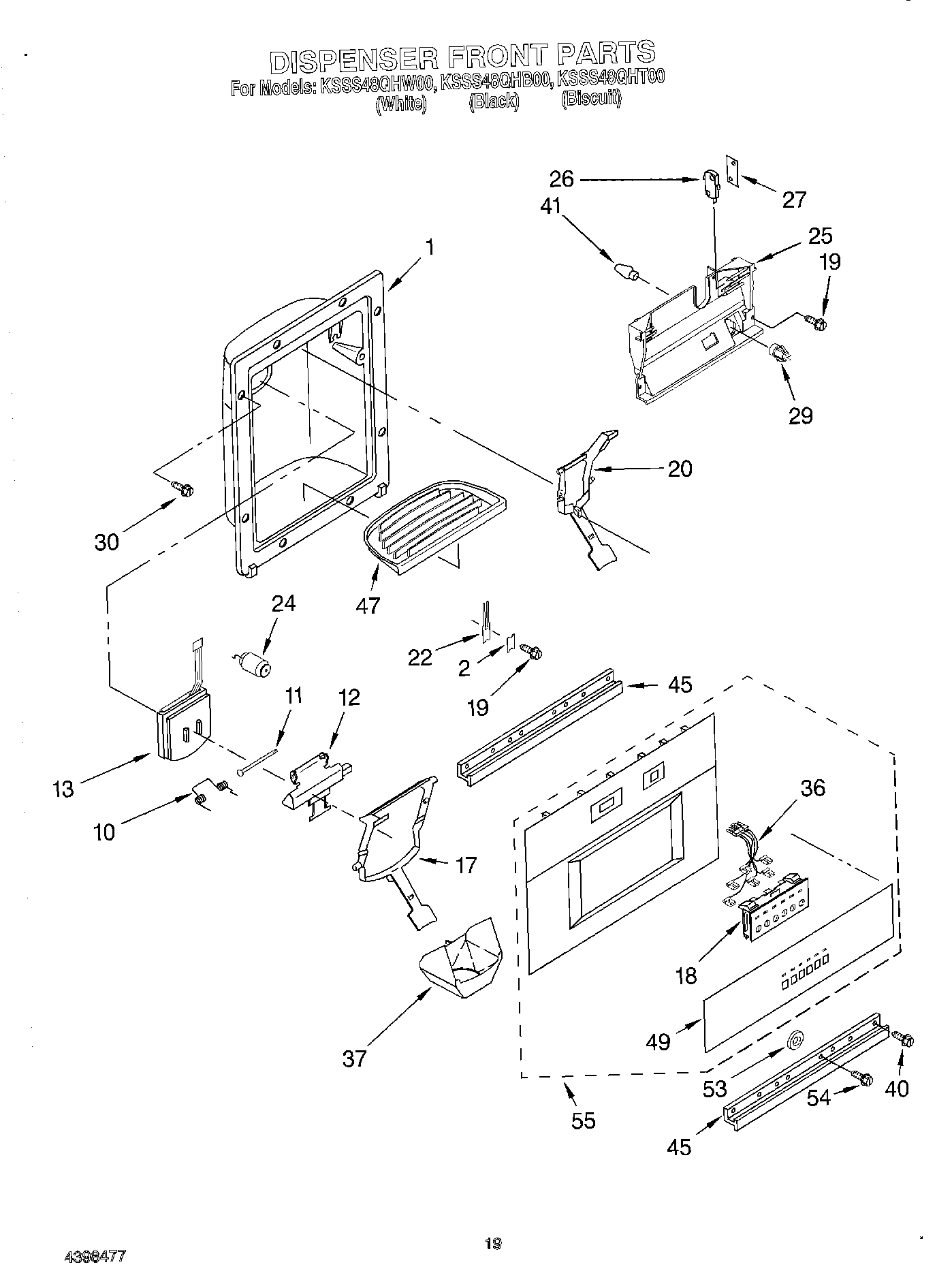

KSSS48QHW00 13 – DISPENSER FRONT

Products

Position	Product
1	Housing, Dispenser (Not a Serviceable Part)
2	WP2195051 Whirlpool Refrigerator Clip
10	WPW10224328 Whirlpool Refrigerator Spring
11	WP2196195 Whirlpool Refrigerator Door Pin
12	Door Mechanism Assembly
13	Door, Ice
17	Lever, Ice Dispenser (White (White Shadow Pad))
17	Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
17	Lever, Ice Dispenser (Black (Storm Grey Pad))
18	Switch Assembly (Also Order Item 49)
19	WP3400906 Whirlpool Refrigerator Screw
20	WPW10152858 Whirlpool Refrigerator Dispenser Arm
22	WP2194719 Whirlpool Refrigerator Clip
24	Delay Mechanism
25	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
26	WP2162361 Whirlpool Switch
27	Spacer, Switch (2)
29	2180200 Whirlpool Refrigerator Socket
30	WP489128 Whirlpool Refrigerator Screw
36	2311650 Whirlpool Refrigerator Wire Harness
37	WP2180224 Whirlpool Dispenser Funnel Guide
40	WP488729 Whirlpool Refrigerator Door Screw
41	WP22002263 Whirlpool Dryer 10W Light Bulb
45	Trim, Front (2) (Black)
45	Trim, Front (2) (Biscuit)
45	Trim, Front (2) (White)
47	WP2180325 Whirlpool Dispenser Grille
47	Grille, Overflow
47	Grille, Overflow (Biscuit)
49	Overlay, Cover (Black)
49	Overlay, Cover (Biscuit)
49	Overlay, Cover (White)
53	W10903204 Whirlpool Refrigerator Washer
54	W10759522 Whirlpool Screw
55	Front Cover Assembly (Includes Items 18, 36, & 49) (White)
55	Front Cover Assembly (Includes Items 18, 36 & 49) (Black)
55	Front Cover Assembly (Includes Items 18, 36, & 49) (Biscuit)
