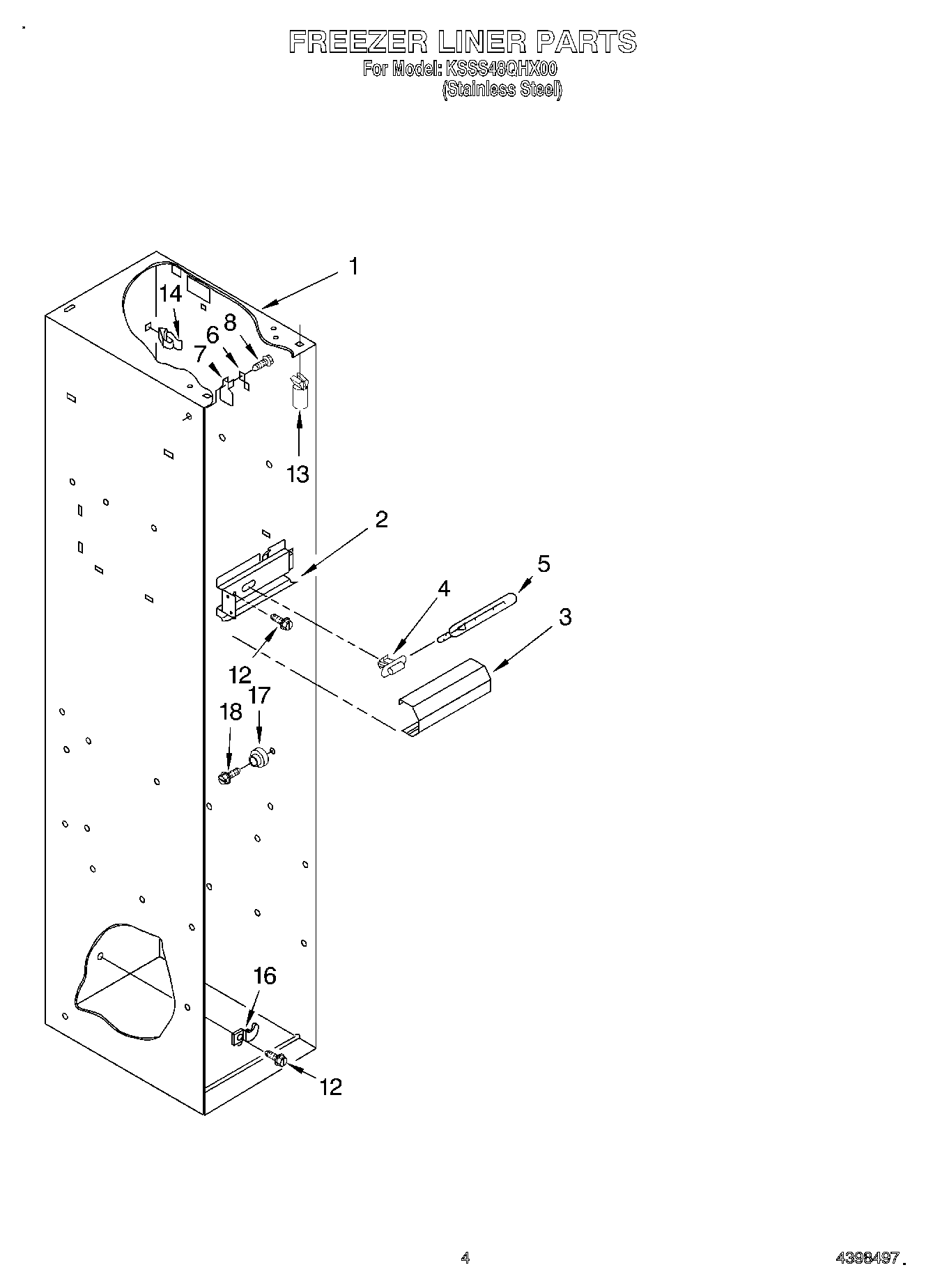

KSSS48QHX00 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Bracket, Light
3	Lens
4	Socket, Light
5	WP548049 Whirlpool Refrigerator Light Bulb
6	Support Clip
7	Grommet, Screw (2)
8	SCREW
12	W11624204 Whirlpool Screw
13	Spacer, Control Panel (3)
14	2215823 Whirlpool Refrigerator Clip
16	1112260 Whirlpool EV Support
17	Shelf Stud
18	Screw
