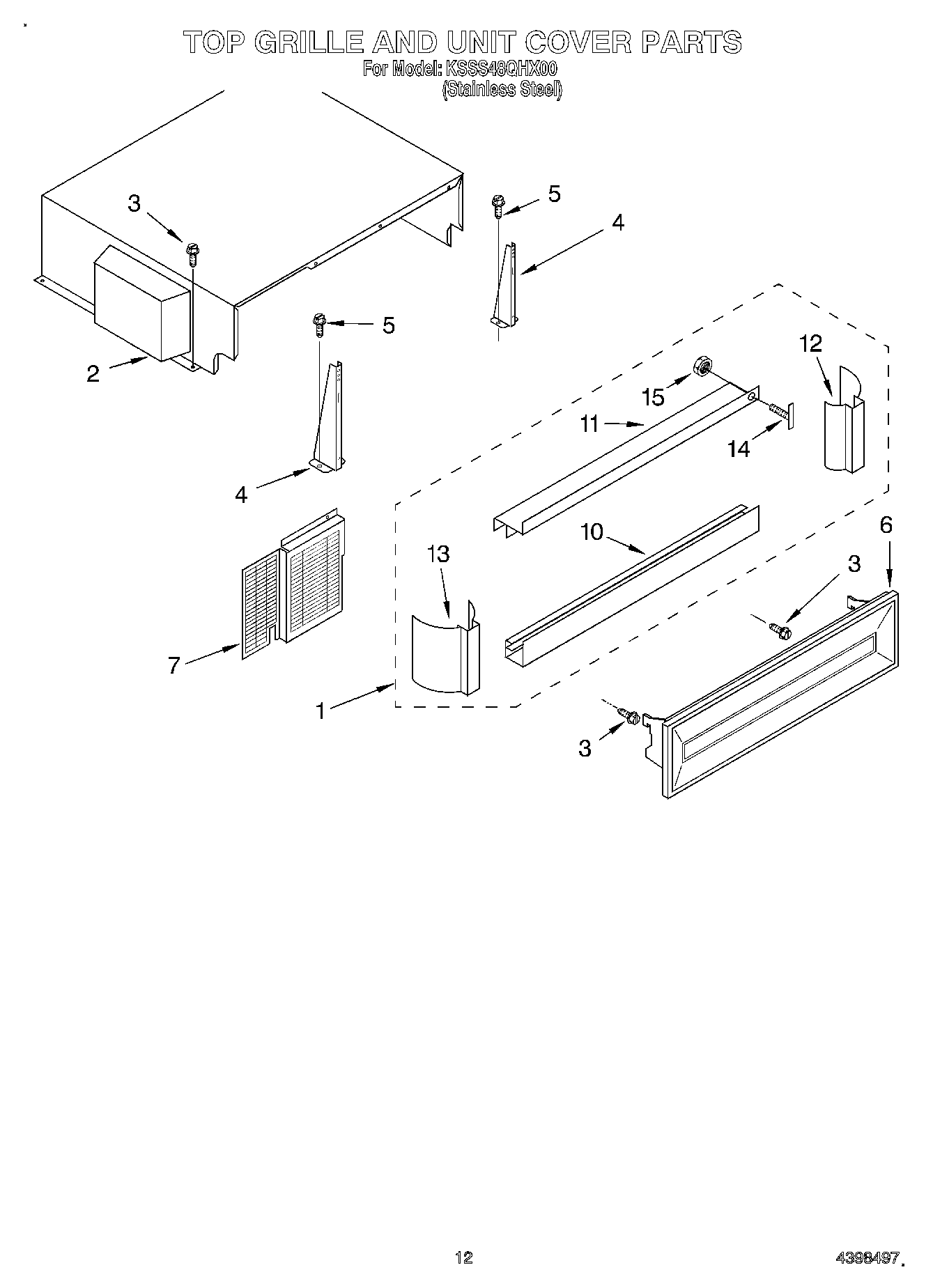

KSSS48QHX00 09 – TOP GRILLE AND UNIT COVER

KSSS48QHX00 09 – TOP GRILLE AND UNIT COVER

Written by

in

KSSS48QHX00 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Decortive Panel Assembly
7Guard, Compressor Wiring
10Trim, Grille Bottom
11Trim, Grille Top
12Trim, Grille Right Side
13Trim, Grille Left Side
142003347 Whirlpool Screw
15WP488130 Whirlpool Air Conditioner Nut
