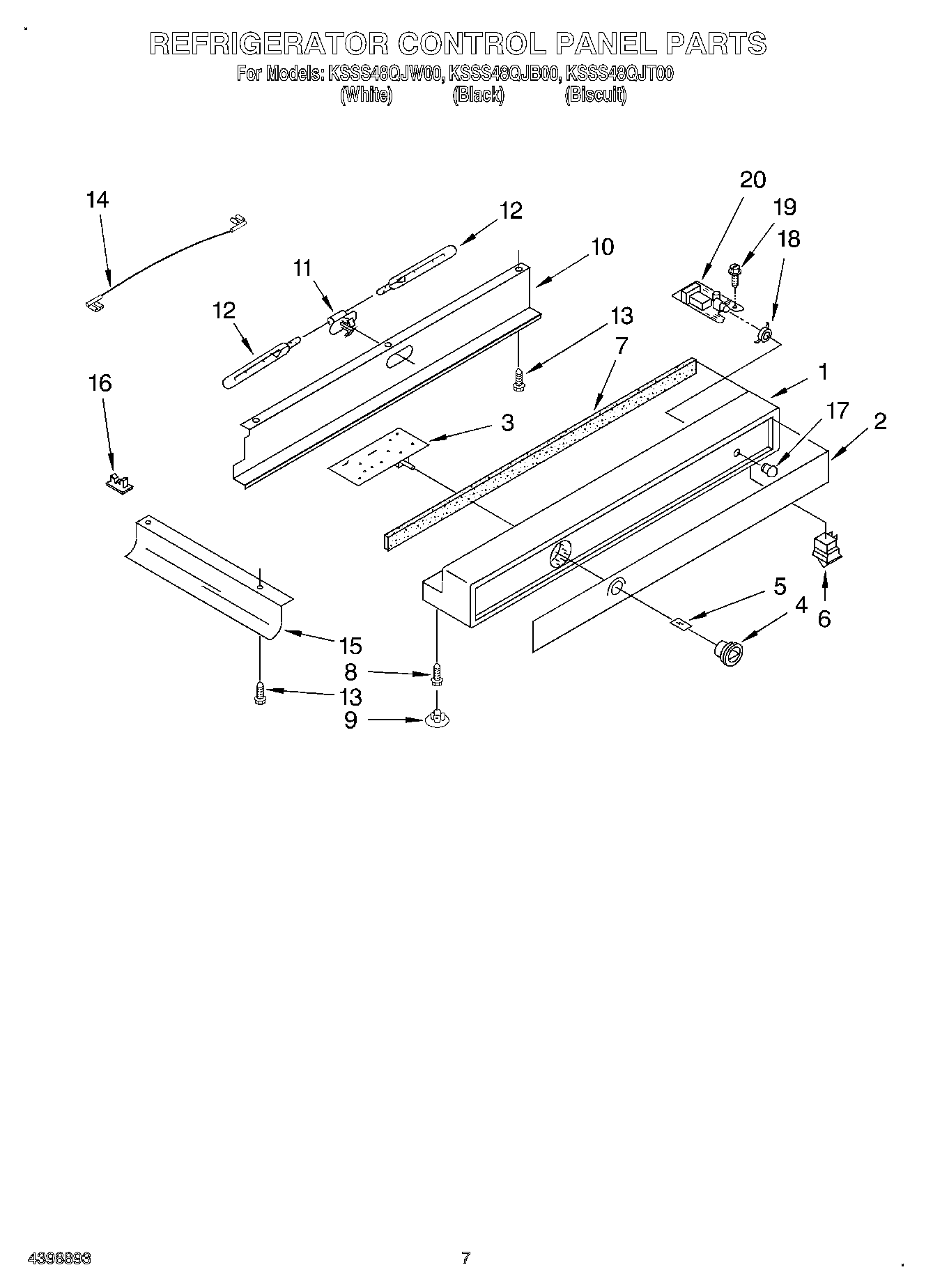

KSSS48QJB00 05 – REFRIGERATOR CONTROL PANELadmin2025-04-26T12:13:03+00:00KSSS48QJB00 05 – REFRIGERATOR CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Control Panel |
| 2 | Inlay, Control Panel |
| 3 | Circuit Board |
| 4 | Control Knob |
| 5 | Retainer, Knob |
| 6 | W11384469 Whirlpool Door Switch |
| 7 | Seal, Control Panel |
| 8 | Screw (3) |
| 9 | Hole Plug (3) |
| 10 | Shield, Control Panel |
| 11 | Socket, Light |
| 12 | WP548049 Whirlpool Refrigerator Light Bulb |
| 13 | W11624204 Whirlpool Screw |
| 14 | Wire, Light |
| 15 | Channel, Wiring |
| 16 | CLIP, WIRING |
| 17 | COVER, LIGHT LENS |
| 18 | Retainer, Light Lens |
| 19 | P.C. Board Filter Indicator |
| 20 | 2006254 Whirlpool Refrigerator Screw |
