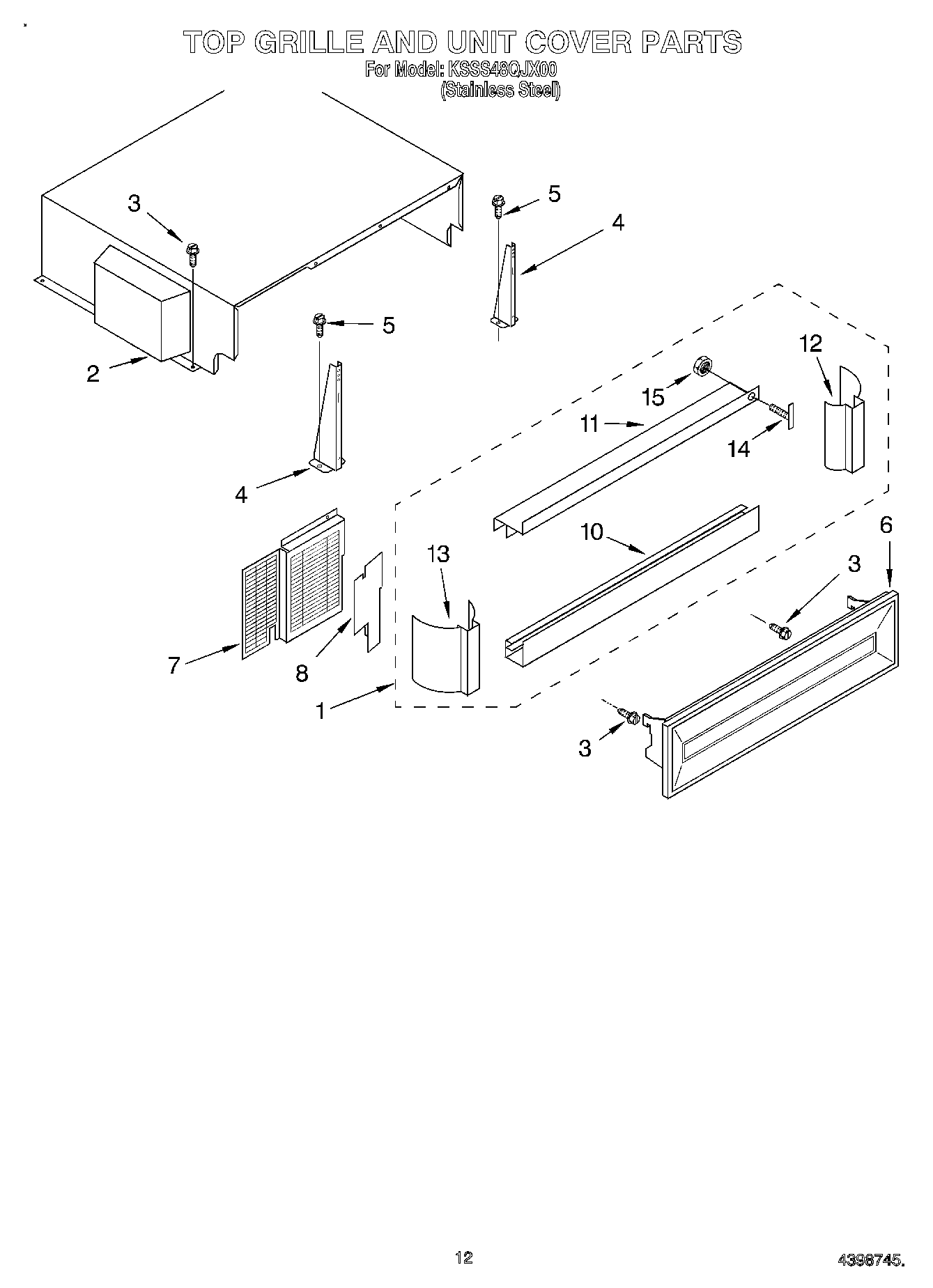

KSSS48QJX00 09 – TOP GRILLE & UNIT COVER

Written by

Products

Position	Product
1	Top Grille Assembly
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Decortive Panel Assembly
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
10	Trim, Grille Bottom
11	Trim, Grille Top
12	Trim, Grille Right Side
13	Trim, Grille Left Side
14	2003347 Whirlpool Screw
15	WP488130 Whirlpool Air Conditioner Nut
