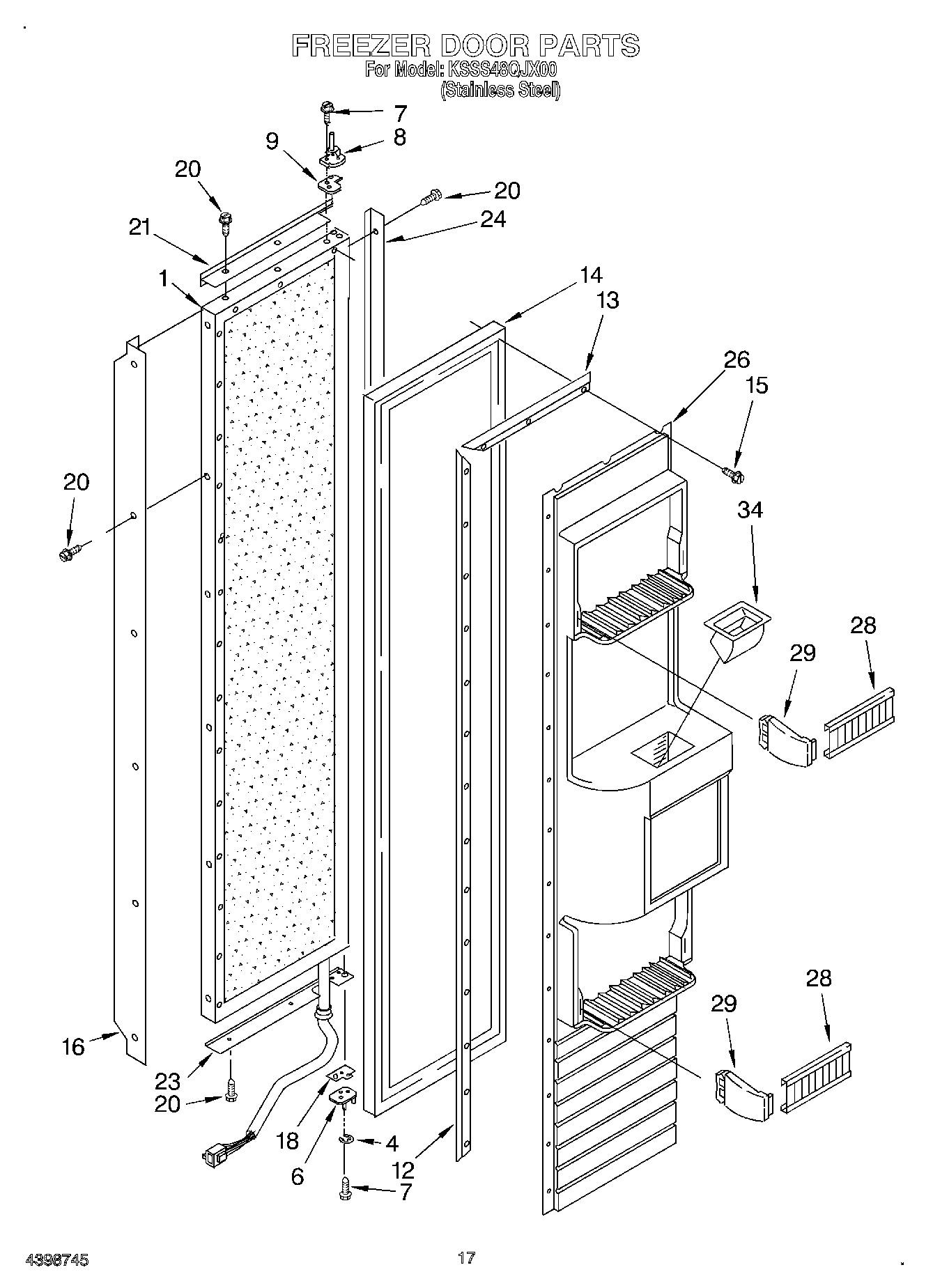

KSSS48QJX00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (Black)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188319A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Etched Aluminum)
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim (Top)
23	Trim (Bottom)
24	Trim (Side) (Etched Aluminum)
26	Panel, Interior Door
28	Trim, Door Shelf
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Ice Chute
