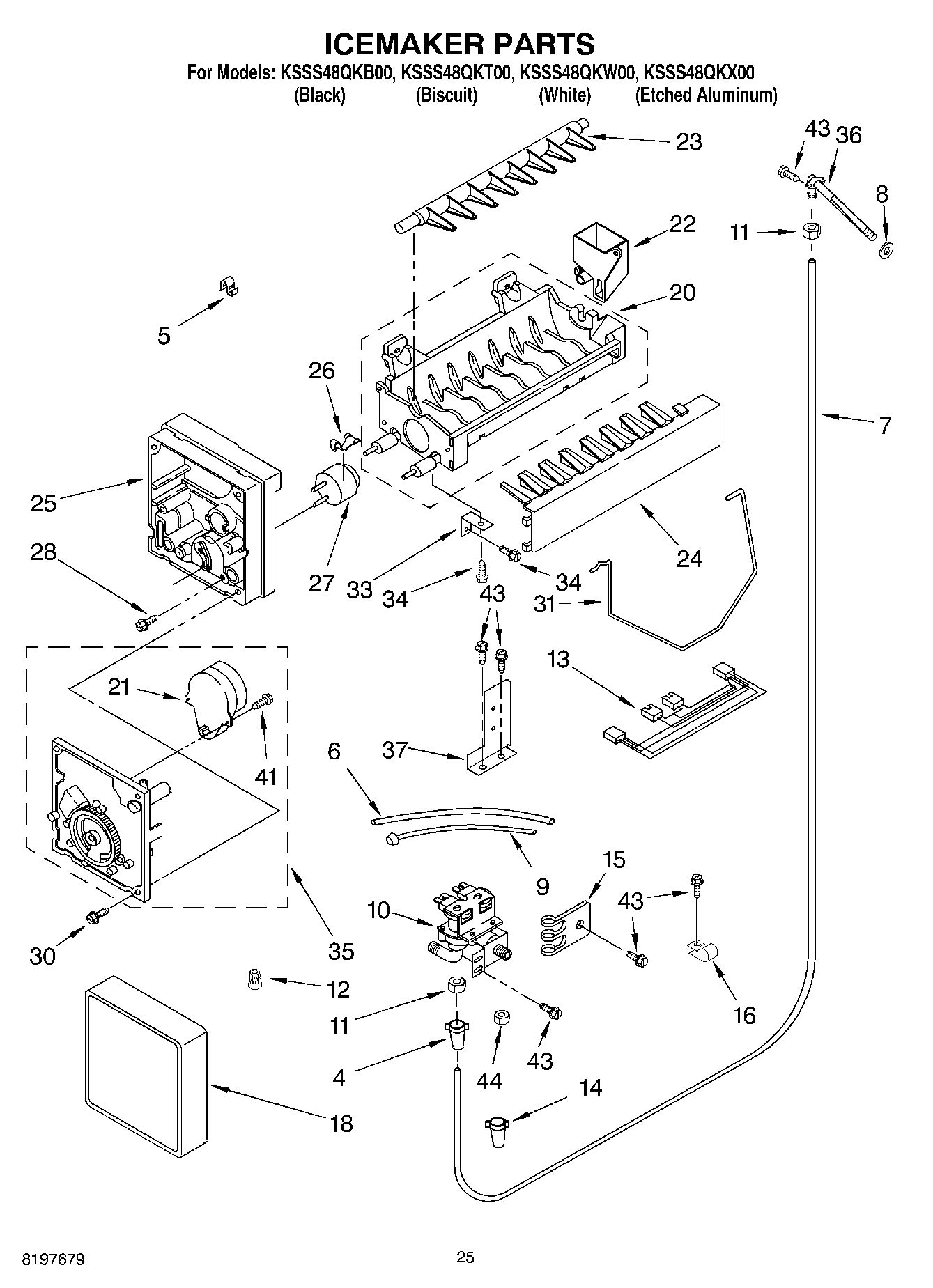

KSSS48QKB00 15 – ICEMAKER

Products

Position	Product
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	Tube, Filter Outlet
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Water Valve, Harness
14	Insert, Tube
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
18	WPW10289690 Whirlpool Ice Maker Cover
20	WP542638 Whirlpool Refrigerator Grease
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	CEMENT, ALUMILASTIC (1 1/4 OZ.)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	WP2256087 Whirlpool Refrigerator Bracket
34	WP489478 Whirlpool Refrigerator Screw
36	Fitting, Water Tube
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
44	Nut, Compression
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
100	Black Acrylic Static Cleaner
100	Front Panel Kit (White)
100	Front Panel Kit (Black)
100	Front Panel Kit Black Acrylic Static Cleaner Part No. 978849
100	Front Panel Kit (Stainless Steel)
