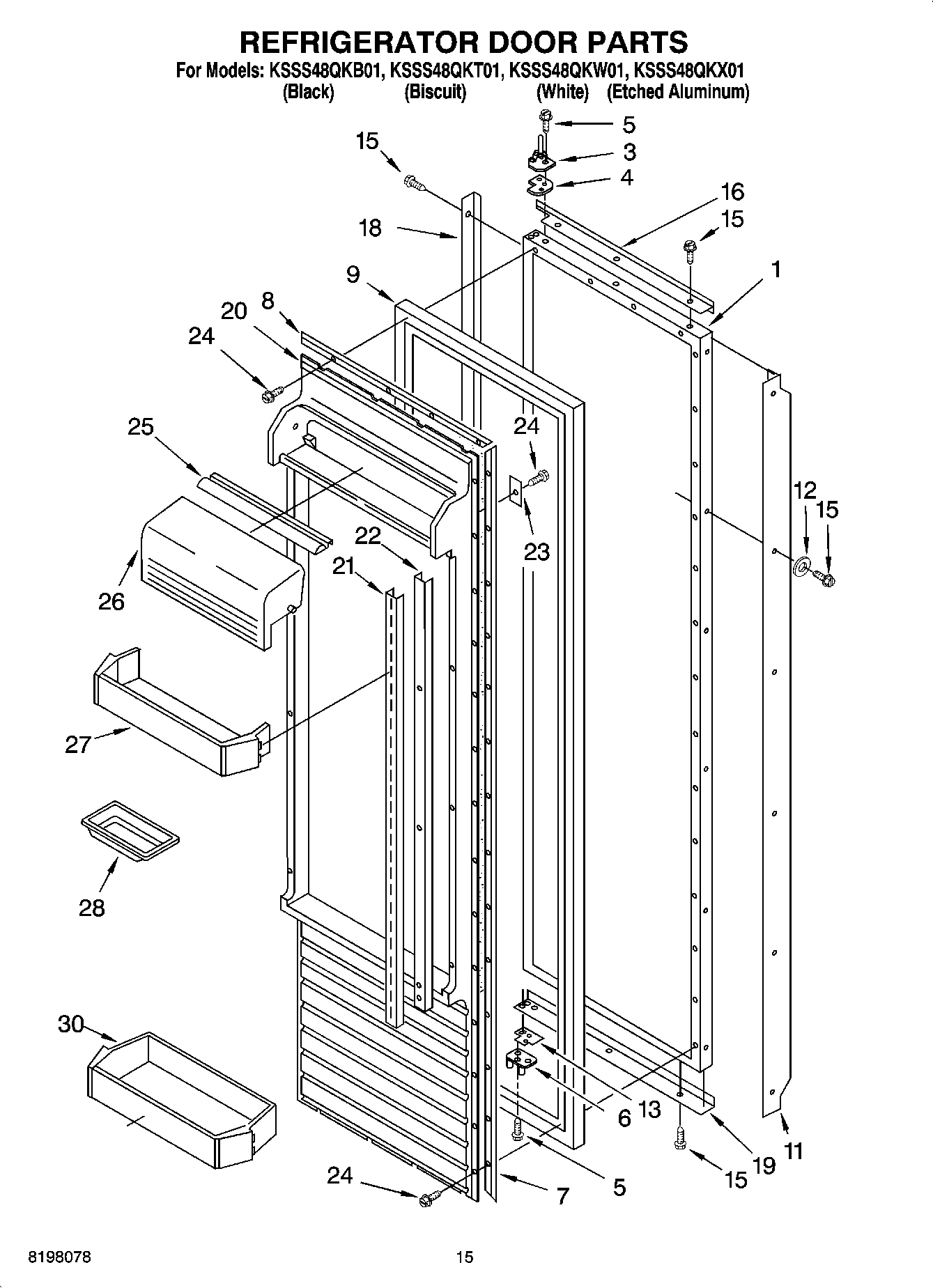

KSSS48QKB01 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel
3	Hinge, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
11	Handle, Door (White)
11	Handle, Door (Black)
11	Handle, Door (Biscuit)
11	Handle, Door (Etched Aluminum)
12	Washer
13	Door, Spacer
15	Screw 8-15 x 1/2 (Biscuit)
15	W10851443 Whirlpool Refrigerator Screw
15	WP8281250 Whirlpool Refrigerator Screw
15	Screw 8-15 x 1/2 (White)
16	Trim (Top)
16	Trim (Top) (Black)
16	Trim (Top) (White)
16	Trim (Top) (Biscuit)
18	Trim (Side) (White)
18	Trim, Side (Etched Aluminum)
18	Trim, Side (Black)
18	Trim (Side) (Biscuit)
19	Trim (Bottom) (Black)
19	Trim (Bottom) (Biscuit)
19	Trim (Bottom) (Etched Aluminum)
19	Trim (Bottom) (White)
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Gasket Utility Door
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
30	Shelf, Gallon Door
