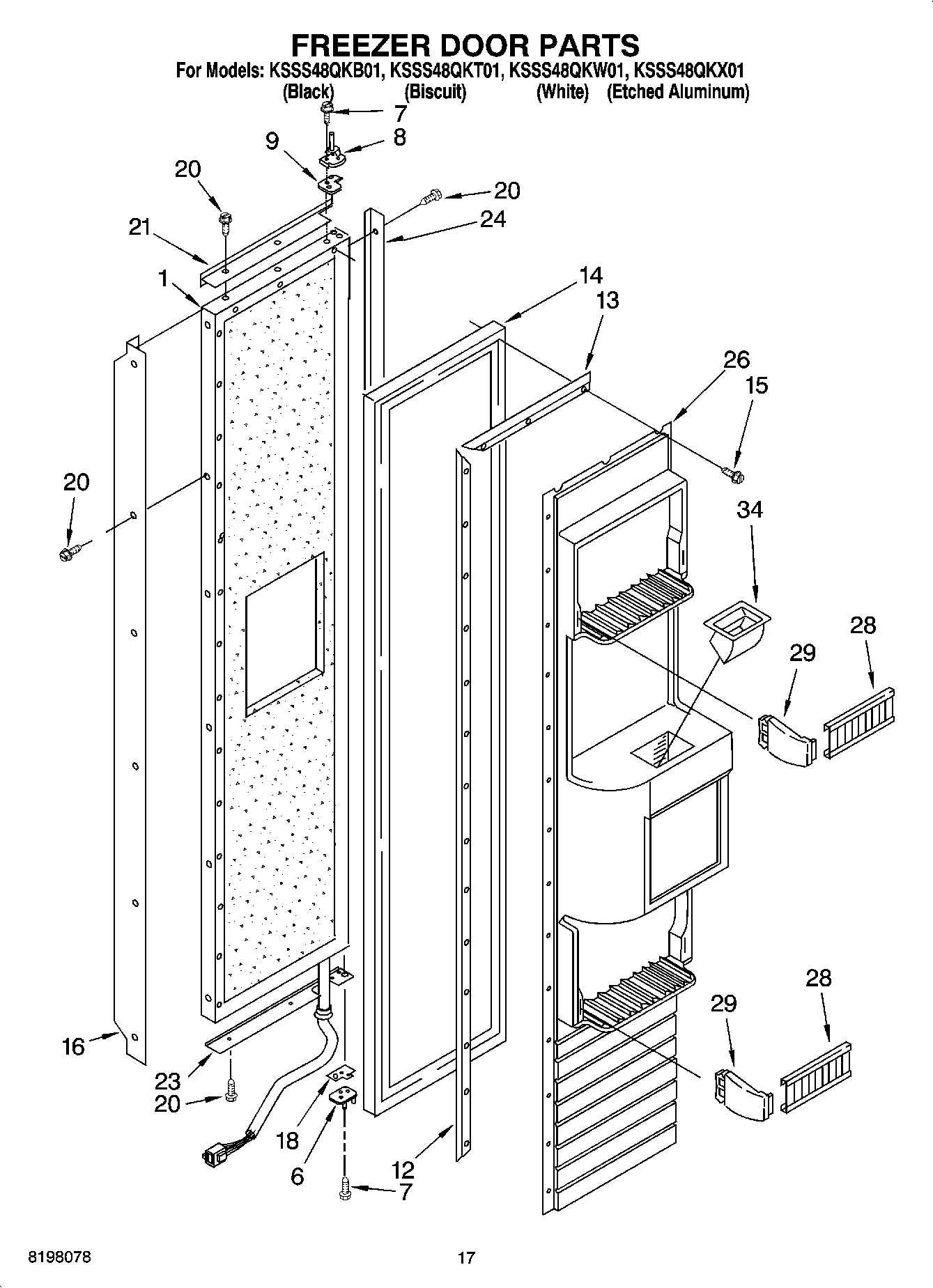

KSSS48QKB01 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation and Dispenser Housing) (White)
1Freezer Door Panel (Includes Insulation and Dispenser Housing) (Biscuit)
1Freezer Door Panel (Includes Insulation and Dispenser Housing) (Black)
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer-Hinge, Top
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15W11624204 Whirlpool Screw
16Handle, Door (Biscuit)
16Handle, Door (Etched Aluminum)
16Handle, Door (Black)
16Handle, Door (White)
18Door, Spacer
20Screw 8-15 x 1/2 (Biscuit)
20W10851443 Whirlpool Refrigerator Screw
20Screw 8-15 x 1/2 (White)
20WP8281250 Whirlpool Refrigerator Screw
21Trim (Top) (White)
21Trim (Top) (Biscuit)
21Trim (Top) (Black)
21Trim (Top)
23Trim (Bottom) (Biscuit)
23Trim (Bottom) (Etched Aluminum)
23Trim (Bottom) (White)
23Trim (Bottom) (Black)
24Trim (Side) (Biscuit)
24Trim (Side) (White)
24Trim (Side) (Etched Aluminum)
24Trim (Side) (Black)
26Panel, Interior Door
28Trim, Door Shelf
29Trim, Endcap (Left Side)
29Trim, End Cap (Right Side)
34Ice Chute
