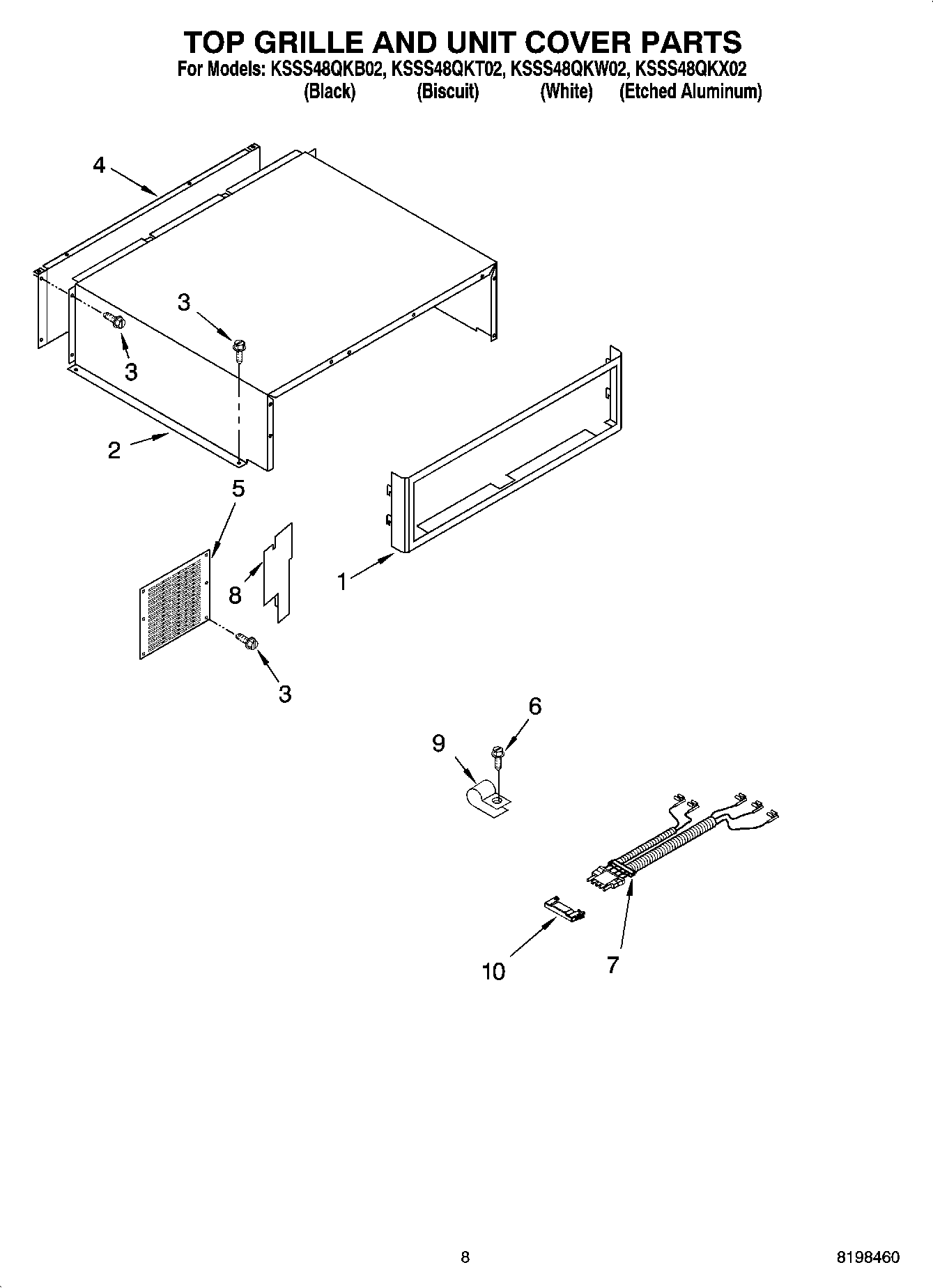

KSSS48QKT02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS48QKT02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS48QKT02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Black)
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6WP489069 Whirlpool Compactor Screw
7Wire Assembly RC/FC Light Switch
8Baffle-Air, Condenser
9489348 Whirlpool Refrigerator Tube Clamp
10Enclosure, Connector
