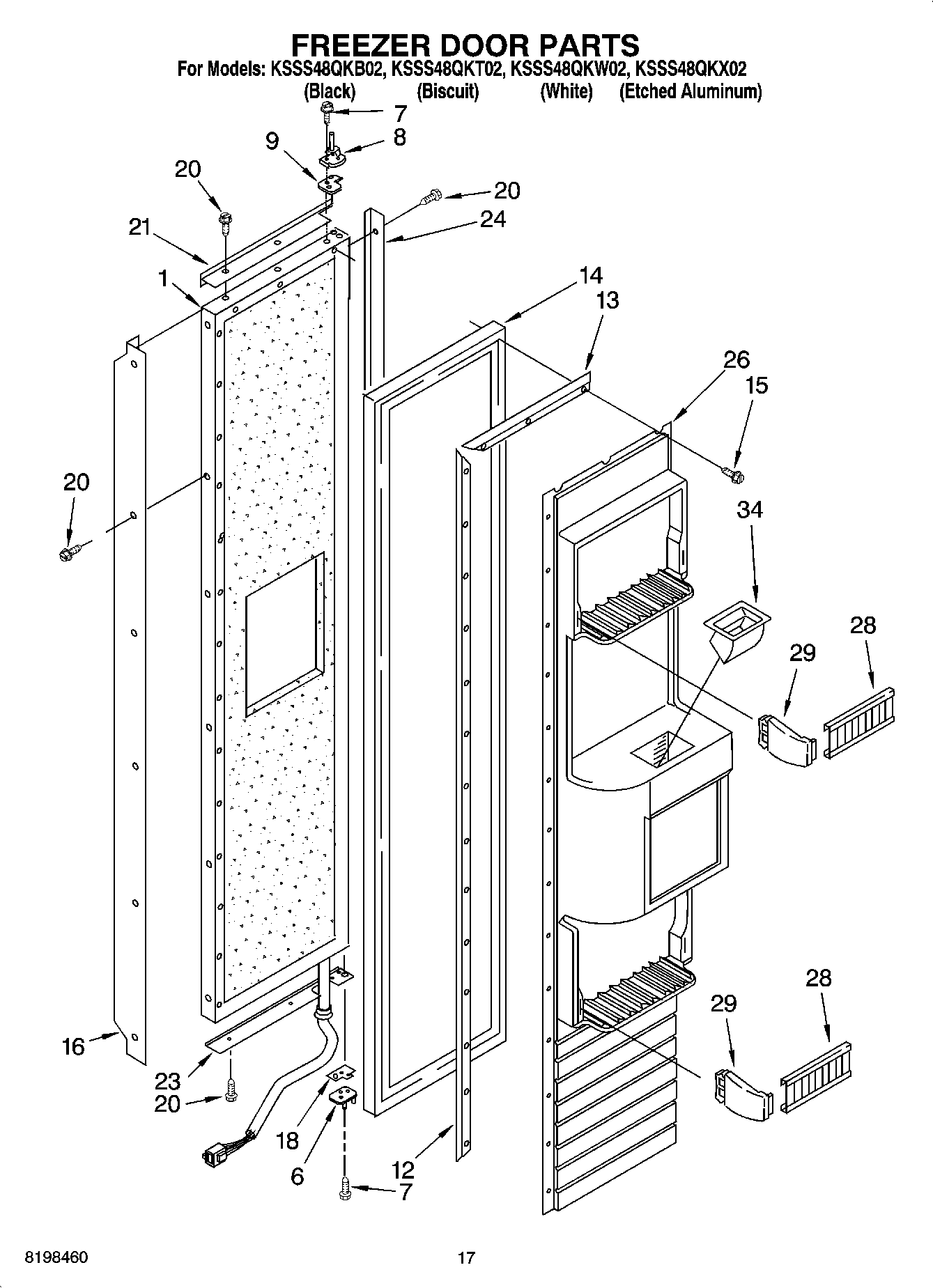

KSSS48QKW02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation and Dispenser Housing) (Black)
1	Freezer Door Panel (Includes Insulation and Dispenser Housing) (White)
1	Freezer Door Panel (Includes Insulation and Dispenser Housing) (Biscuit)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (Biscuit)
16	Handle, Door (White)
16	Handle, Door (Etched Aluminum)
16	Handle, Door (Black)
18	Door Spacer, Bottom
20	Screw 8-15 x 1/2 (Biscuit)
20	WP8281250 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (White)
20	W10851443 Whirlpool Refrigerator Screw
21	Trim (Top) (Black)
21	Trim (Top) (White)
21	Trim (Top)
21	Trim (Top) (Biscuit)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Biscuit)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (White)
24	Trim (Side) (Black)
24	Trim (Side) (Biscuit)
24	Trim (Side) (White)
24	Trim (Side) (Etched Aluminum)
26	Panel, Interior Door
28	Trim, Door Shelf
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Ice Chute
