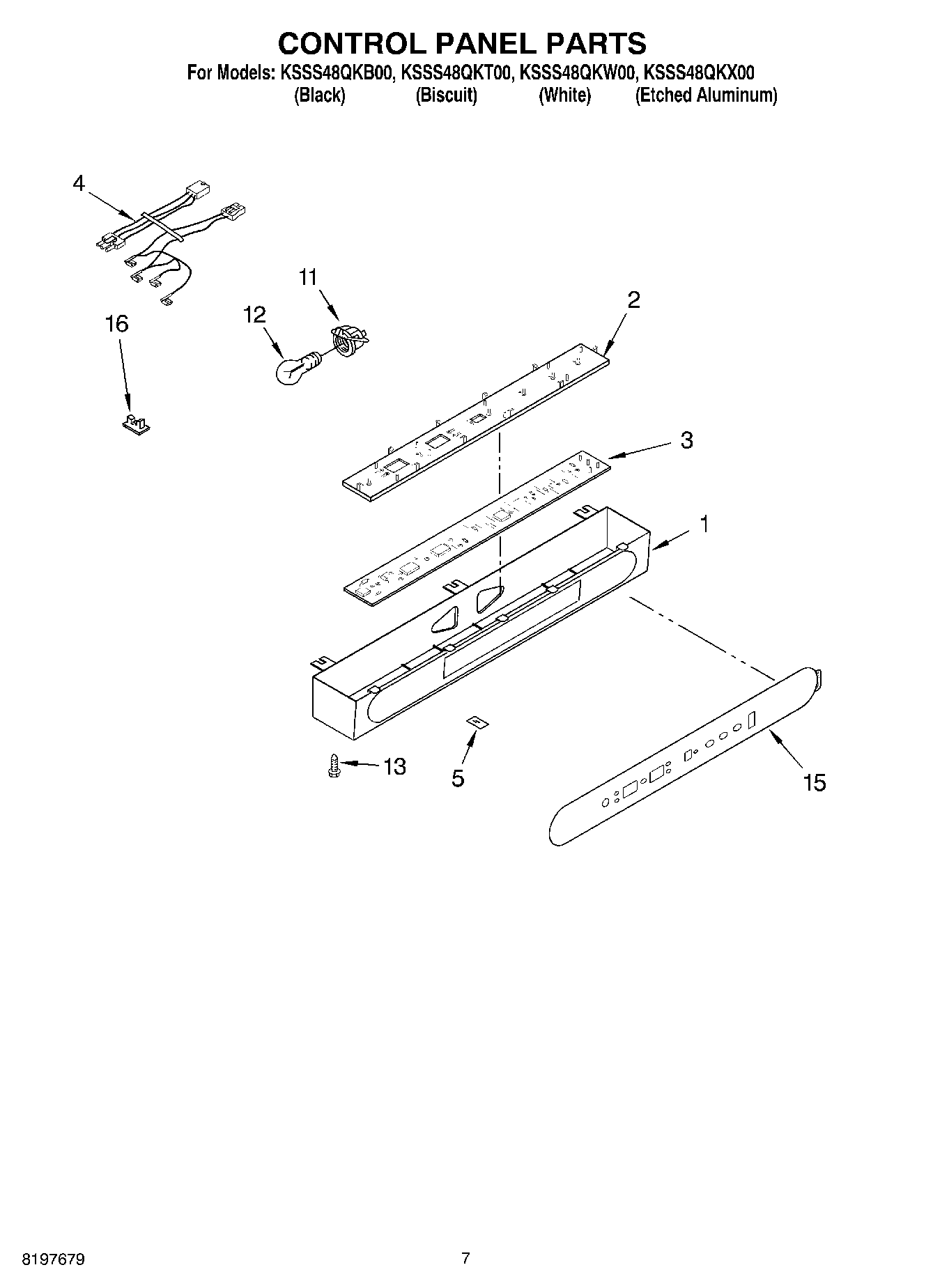

KSSS48QKX00 05 – CONTROL PANEL

Products

Position	Product
1	CONTRL-BOX
2	Insert, Control Box
3	Circuit Board (User Interface)
4	Harness, Control Box
5	Retainer, Knob
11	4387478 Whirlpool Refrigerator Light Socket
12	W10887190 Whirlpool Refrigerator Light Bulb
13	W11624204 Whirlpool Screw
15	Overlay
16	CLIP, WIRING
