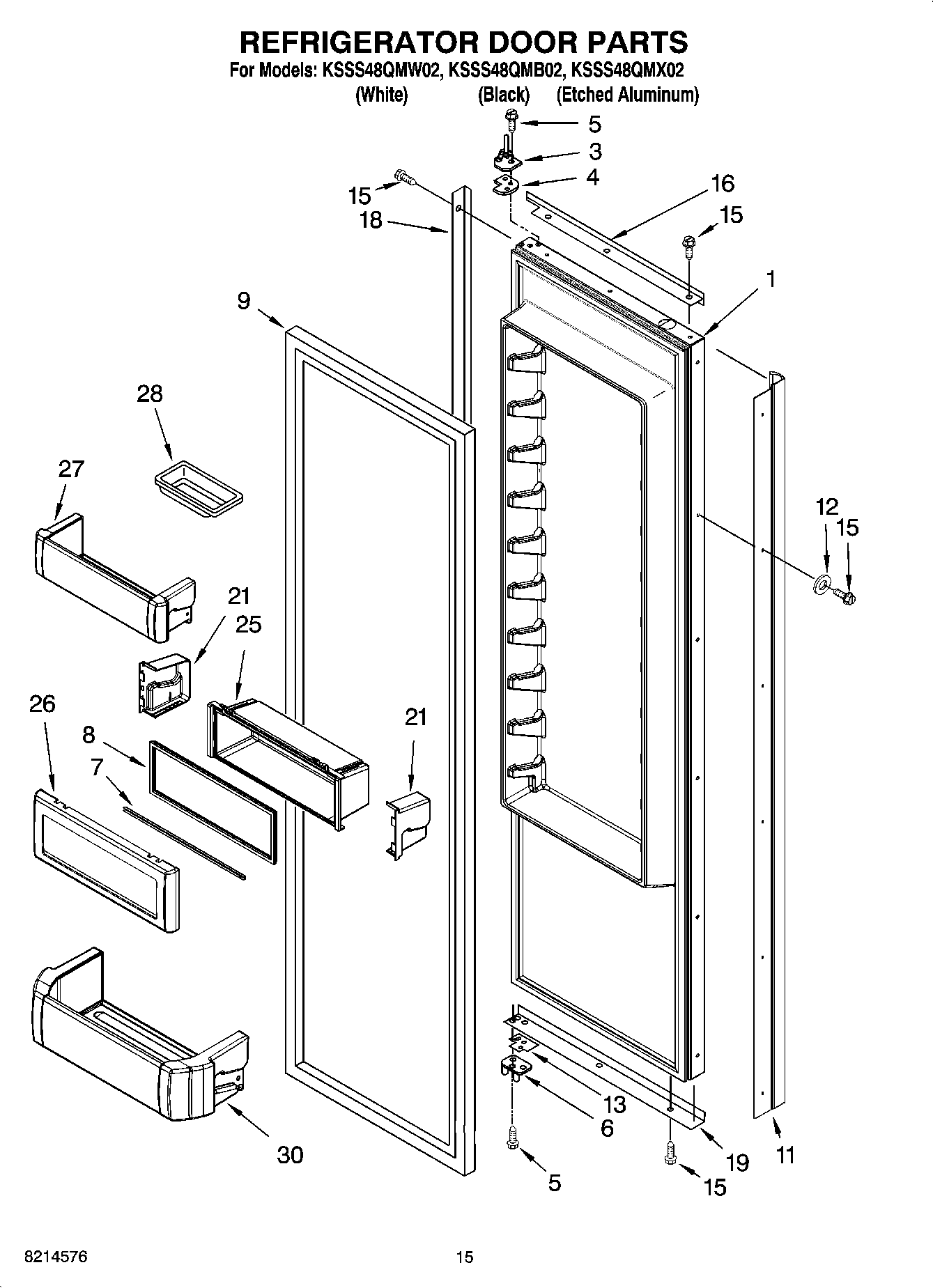

KSSS48QMB02 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
11	Handle, Door (Etched Aluminum)
11	Handle, Door (White)
11	Handle, Door (Black)
12	Washer
13	Door Spacer, Bottom
15	Screw 8-15 x 1/2 (White)
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
16	Trim (Top) (White)
16	Trim (Top)
16	Trim (Top) (Black)
18	Trim (Side) (White)
18	Trim, Side (Etched Aluminum)
18	Trim, Side (Black)
19	Trim (Bottom) (Etched Aluminum)
19	Trim (Bottom) (Black)
19	Trim (Bottom) (White)
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
27	BIN-CNTLVR
28	Butter Tray
30	W10323748 Whirlpool Refrigerator Cantilever Bin
