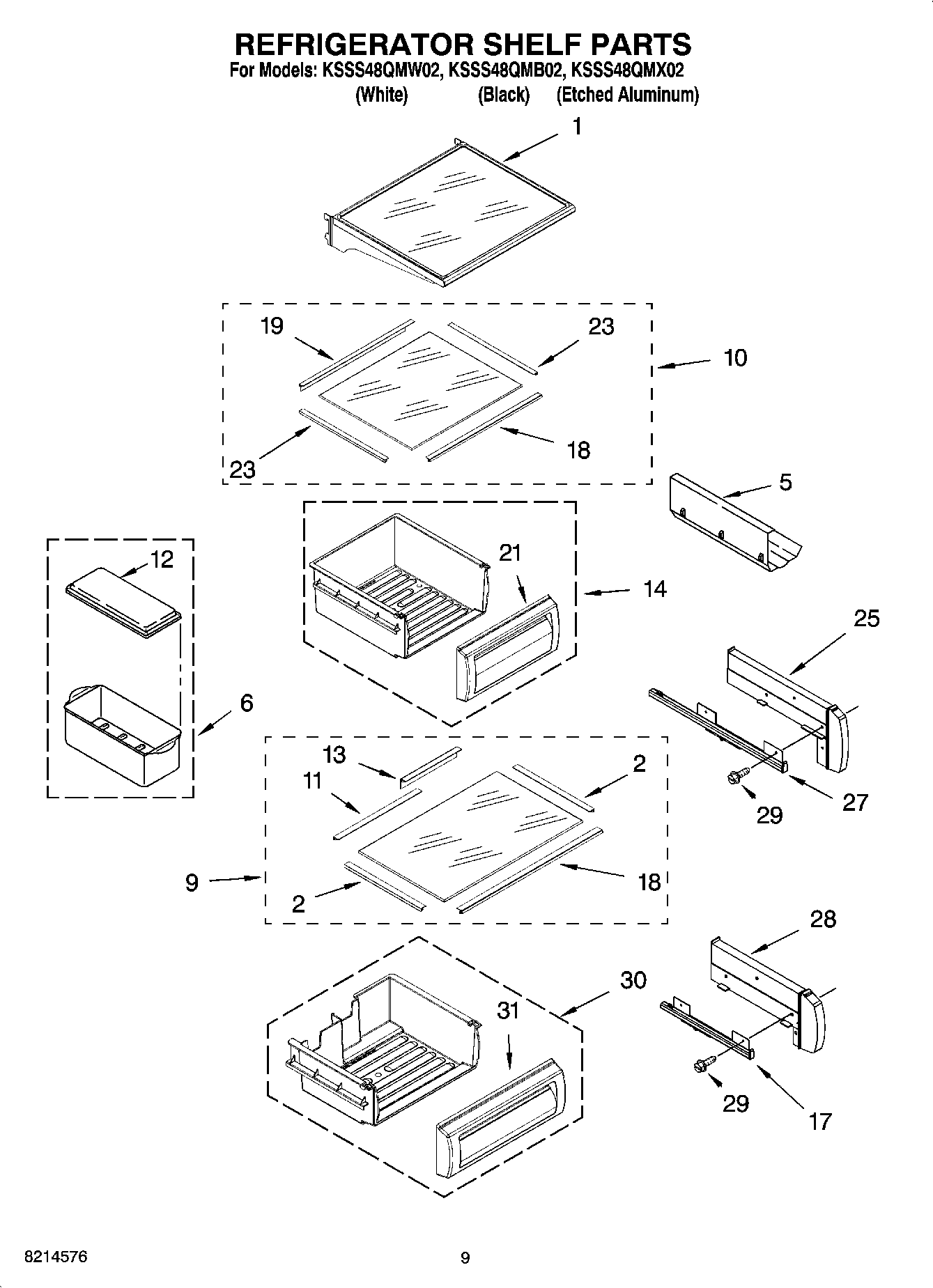

KSSS48QMW02 07 – REFRIGERATOR SHELF PARTS

KSSS48QMW02 07 – REFRIGERATOR SHELF PARTS

Written by

in

KSSS48QMW02 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WP2222593 Whirlpool Cantilever Shelf
22256250 Whirlpool Refrigerator Shelf Trim
5W10777924 Whirlpool Refrigerator Wine Rack
6Egg Bin Assembly
9Meat Pan Cover Assembly
10Crisper Cover Assembly
11Trim, Glass Rear Side
12Cover
13Trim, Glass Rear
14W10407625 Whirlpool Refrigerator Crisper Pan
172302954 Whirlpool Refrigerator Slide
172302955 Whirlpool Refrigerator Slide
18Trim, Glass Front (Not Serviceable)
19Trim, Glass Rear
23Trim, Glass Side
252256223 Whirlpool Refrigerator Track
252256222 Whirlpool Refrigerator Track
272302957 Whirlpool Refrigerator Slide
272302956 Whirlpool Refrigerator Slide
282256244 Whirlpool Refrigerator Track
282256243 Whirlpool Refrigerator Track
29WP3400886 Whirlpool Refrigerator Screw
29WP8533928 Whirlpool Refrigerator Screw
30W10407628 Whirlpool Refrigerator Meat Pan
31WP2256367 Whirlpool Refrigerator Front Pan
