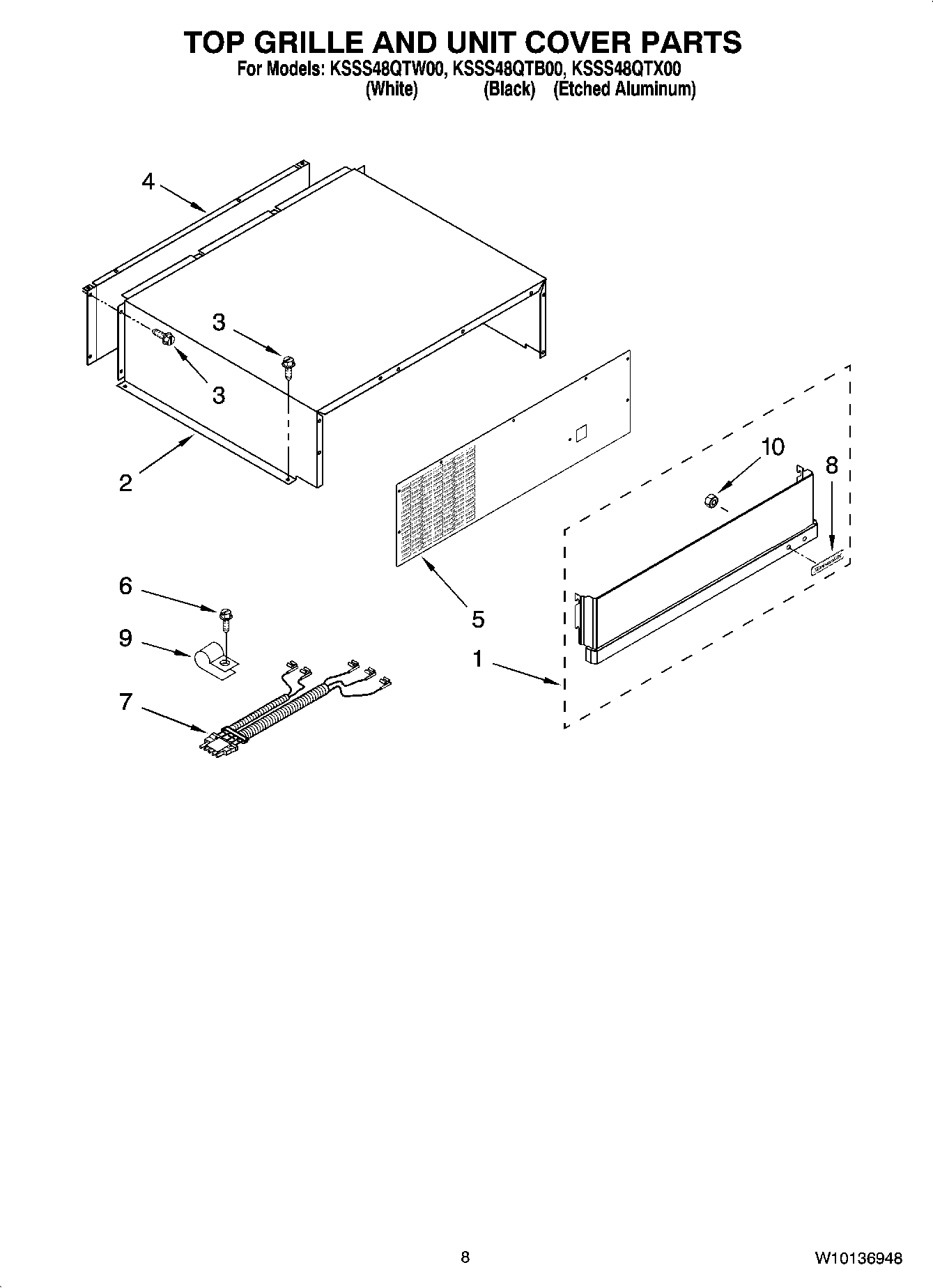

KSSS48QTB00 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS48QTB00 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS48QTB00 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly (White)
1Panel, Decorative Assembly (Black)
1Top, Grille Assy
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover, Unit Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
8NAMEPLATE
8Badge, Kitchen Aid (Black)
8Badge, Kitchen Aid (White)
9489348 Whirlpool Refrigerator Tube Clamp
10WP2004333 Whirlpool Refrigerator Nut
