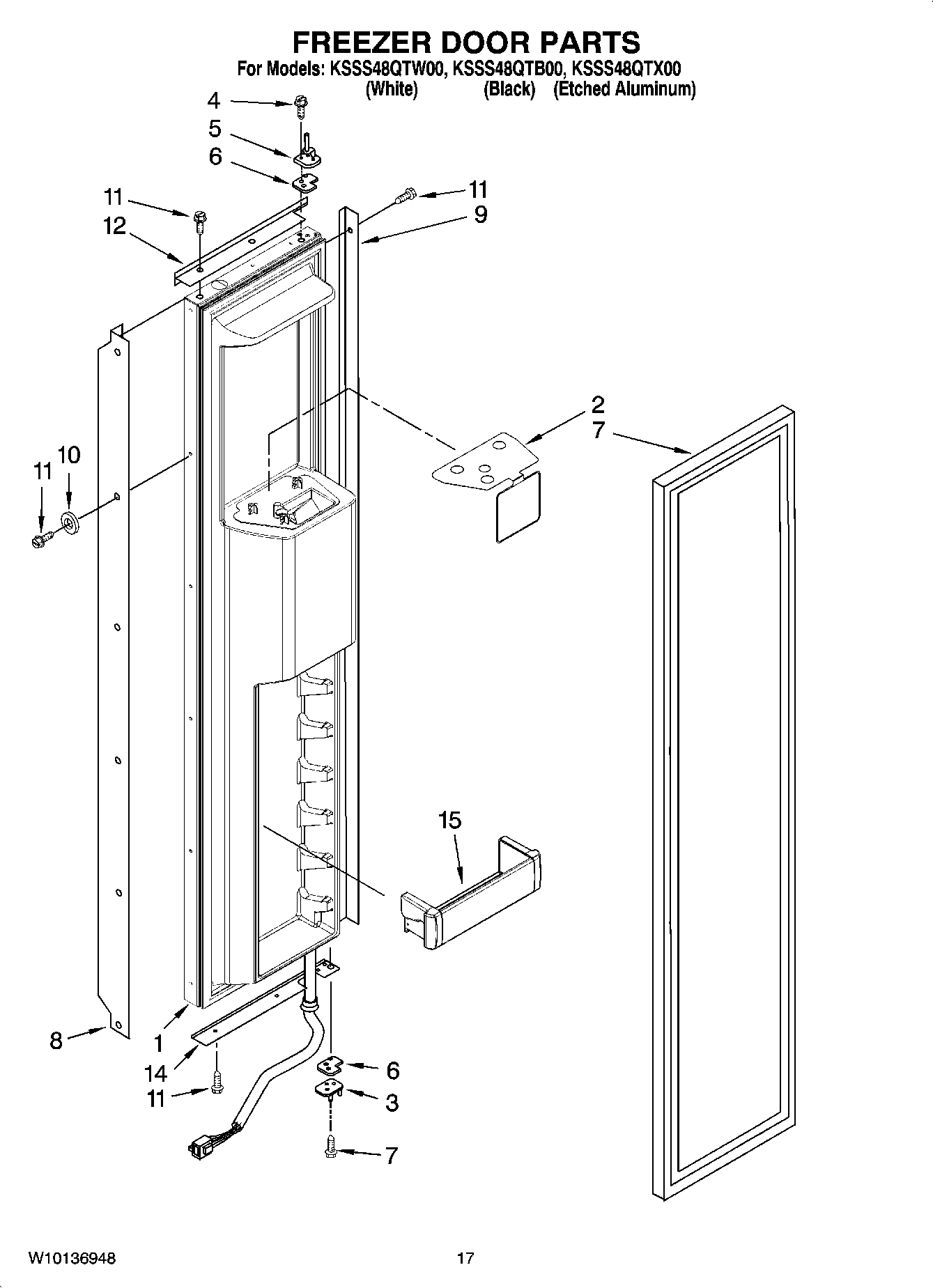

KSSS48QTB00 11 – FREEZER DOOR PARTS

KSSS48QTB00 11 – FREEZER DOOR PARTS

Written by

in

KSSS48QTB00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 14) (Universal Silver)
1Freezer Door (Includes 14) (White)
1Freezer Door (Includes 14) (Black)
2Safety Barrier
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266901 Whirlpool Door Gasket
8Handle, Door
8Handle, Door (White)
8Handle, Door (Black)
9Trim (Side) (Black)
9Trim (Side) (White)
9Trim-Door, Side
10Washer
11Screw 8-15 x 1/2 (White)
12Trim (Top) (White)
12Trim (Top) (Black)
12Trim-Door, Top
14Trim-Door, Bottom
14Trim (Bottom) (White)
14Trim (Bottom) (Black)
15W11590561 Whirlpool Refrigerator Cantilever Bin
