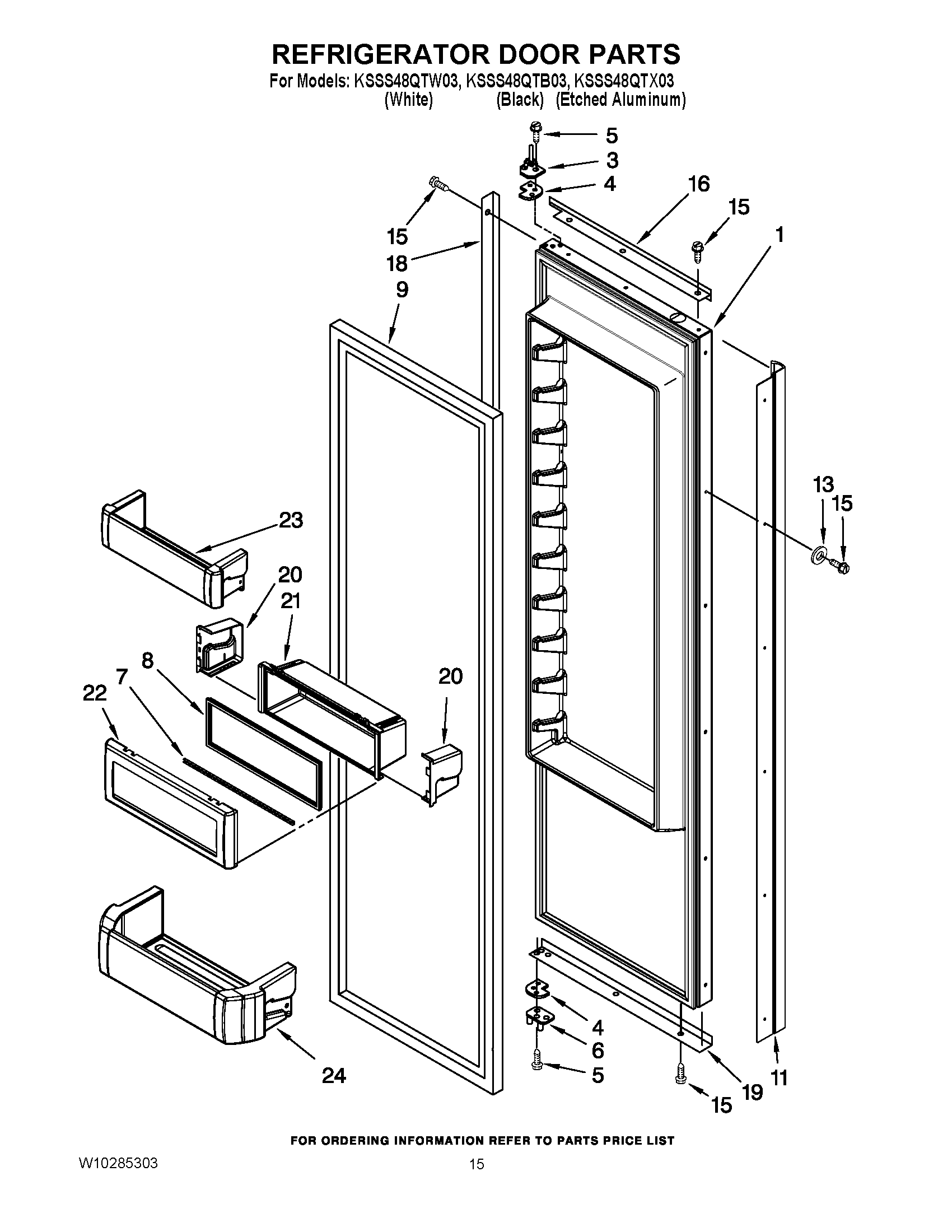

KSSS48QTB03 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
3	W11724512 Whirlpool Door Hinge
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
11	Handle, Door (White)
11	Handle, Door (Black)
11	Handle, Door
13	Washer
15	Screw 8-15 x 1/2 (White)
16	Trim (Top) (White)
16	Trim (Top) (Black)
16	Trim-Door, Top
18	Trim-Door, Side
18	Trim, Side (Black)
18	Trim (Side) (White)
19	Trim (Bottom) (Black)
19	Trim-Door, Bottom
19	Trim (Bottom) (White)
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
23	BIN-CNTLVR
24	W10323748 Whirlpool Refrigerator Cantilever Bin
