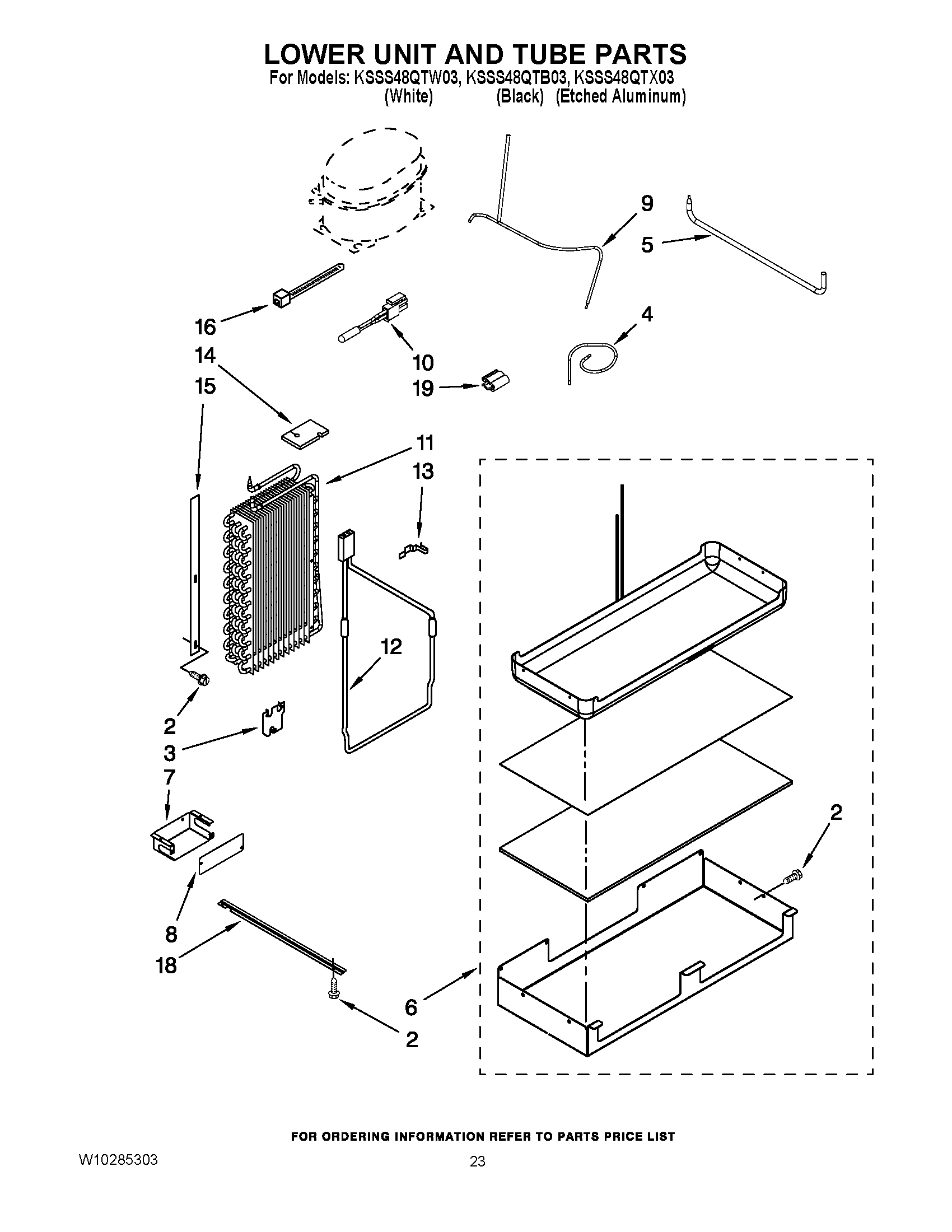

KSSS48QTW03 14 – LOWER UNIT AND TUBE PARTS

KSSS48QTW03 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSS48QTW03 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
2W11624204 Whirlpool Screw
3W10157752 Whirlpool Bracket
4Tube, Suction
5W10388653 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7Cover, Wiring
8Cover, Wiring
9Tube, Discharge
10WP2188820 Whirlpool Refrigerator Thermistor
11WPW10205102 Whirlpool Evaporator
12WPW10140162 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14Seal, Return Air
15Gasket, Evaporator
16Wire Tie
182320554 Whirlpool Bracket
199791833 Whirlpool Refrigerator Clip
