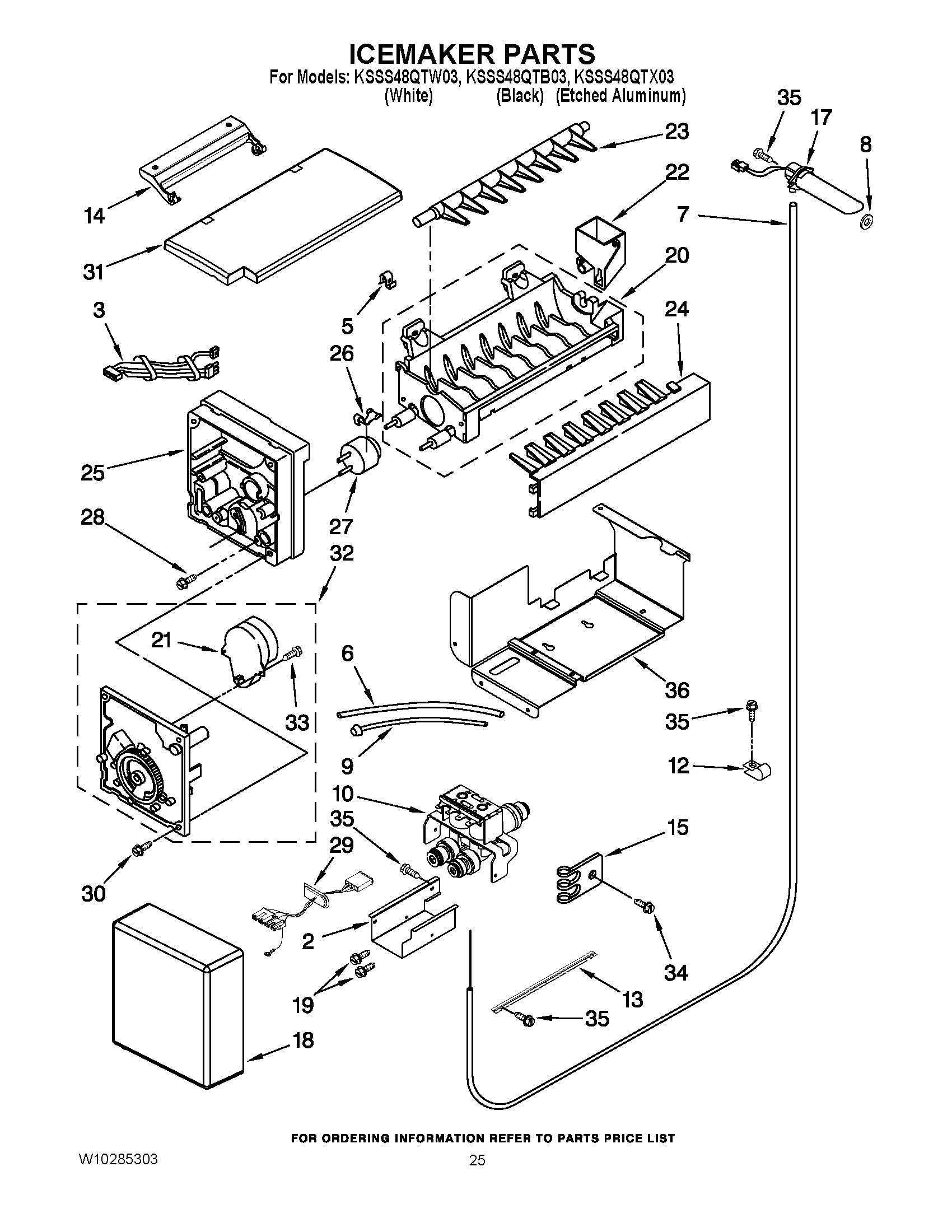

KSSS48QTW03 15 – ICEMAKER PARTS

Products

Position	Product
NI	Cleaner, Stainless Steel
NI	Ice Container Assembly
NI	W10129081 Whirlpool Refrigerator Handle
2	2320601 Whirlpool Refrigerator Shield
3	Wire Assembly, Icemaker
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	Water Tube
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WPW10159842 Whirlpool Refrigerator Inlet Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Support, Valve
14	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15	WP488366 Whirlpool Refrigerator Clamp
17	W10460127 Whirlpool Refrigerator Inlet Tube
18	Cover
19	WP489128 Whirlpool Refrigerator Screw
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	CABINET (NOT A SERVICEABLE PART)
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	W10139199 Whirlpool Refrigerator Wire Harness
30	WP681249 Whirlpool Screw Assembly
31	WPW10504754 Whirlpool Refrigerator Ice Door
32	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
33	489136 Whirlpool Refrigerator Screw
34	WP489464 Whirlpool Refrigerator Screw
35	W11624204 Whirlpool Screw
36	2252228 Whirlpool Refrigerator Bracket
100	WPW10277448 Whirlpool Icemaker Assembly
