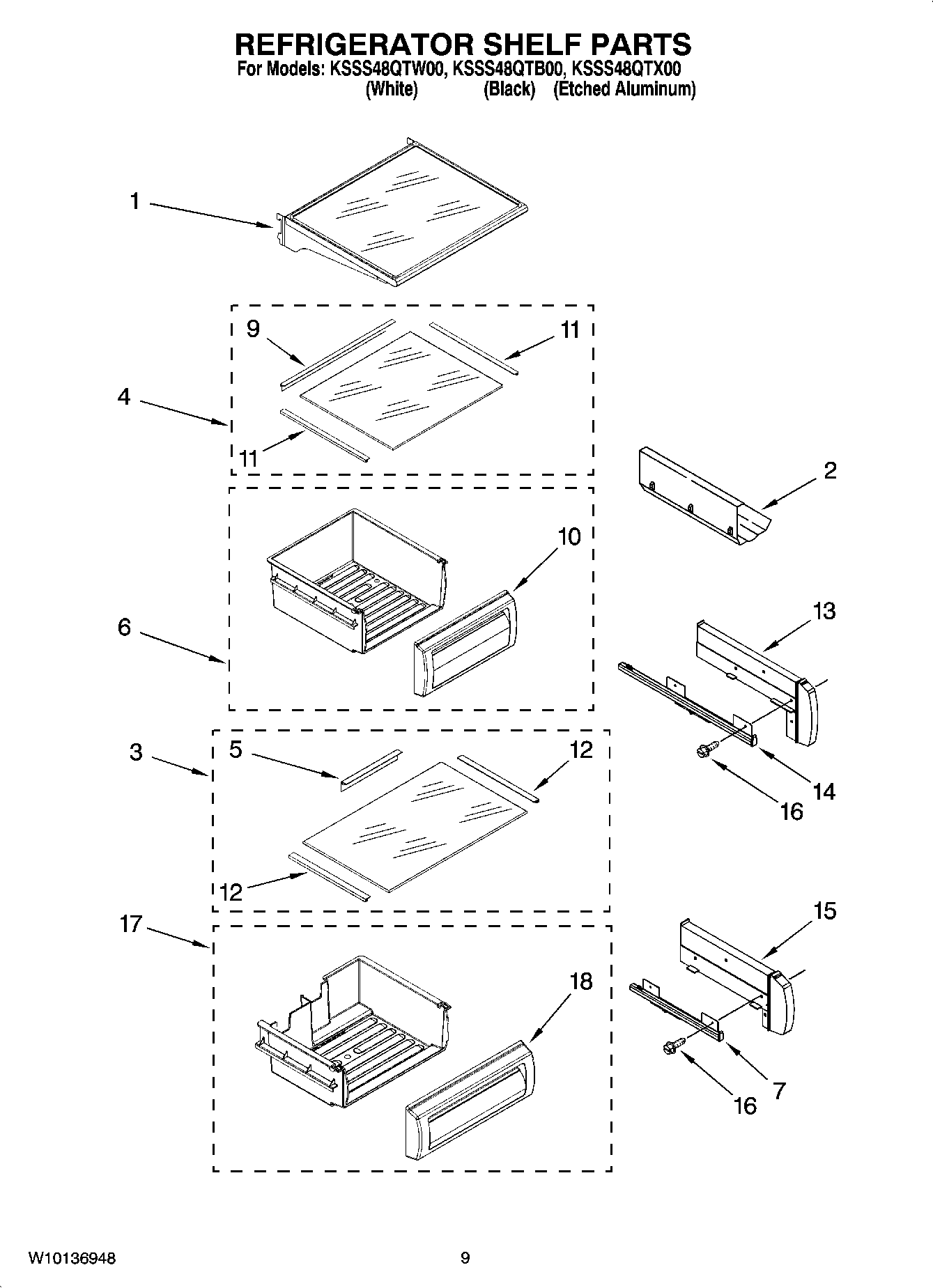

KSSS48QTX00 07 – REFRIGERATOR SHELF PARTS

KSSS48QTX00 07 – REFRIGERATOR SHELF PARTS

Written by

in

KSSS48QTX00 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WP2222593 Whirlpool Cantilever Shelf
2W10777924 Whirlpool Refrigerator Wine Rack
3Meat Pan Cover Assembly
4Crisper Cover Assembly
5Trim, Glass Rear
6W10407625 Whirlpool Refrigerator Crisper Pan
72302954 Whirlpool Refrigerator Slide
72302955 Whirlpool Refrigerator Slide
9Trim, Glass Rear
11Trim, Glass Side
122256250 Whirlpool Refrigerator Shelf Trim
132256223 Whirlpool Refrigerator Track
132256222 Whirlpool Refrigerator Track
142302957 Whirlpool Refrigerator Slide
142302956 Whirlpool Refrigerator Slide
152256243 Whirlpool Refrigerator Track
152256244 Whirlpool Refrigerator Track
16WP3400886 Whirlpool Refrigerator Screw
16WP8533928 Whirlpool Refrigerator Screw
17W10407628 Whirlpool Refrigerator Meat Pan
18WP2256367 Whirlpool Refrigerator Front Pan
