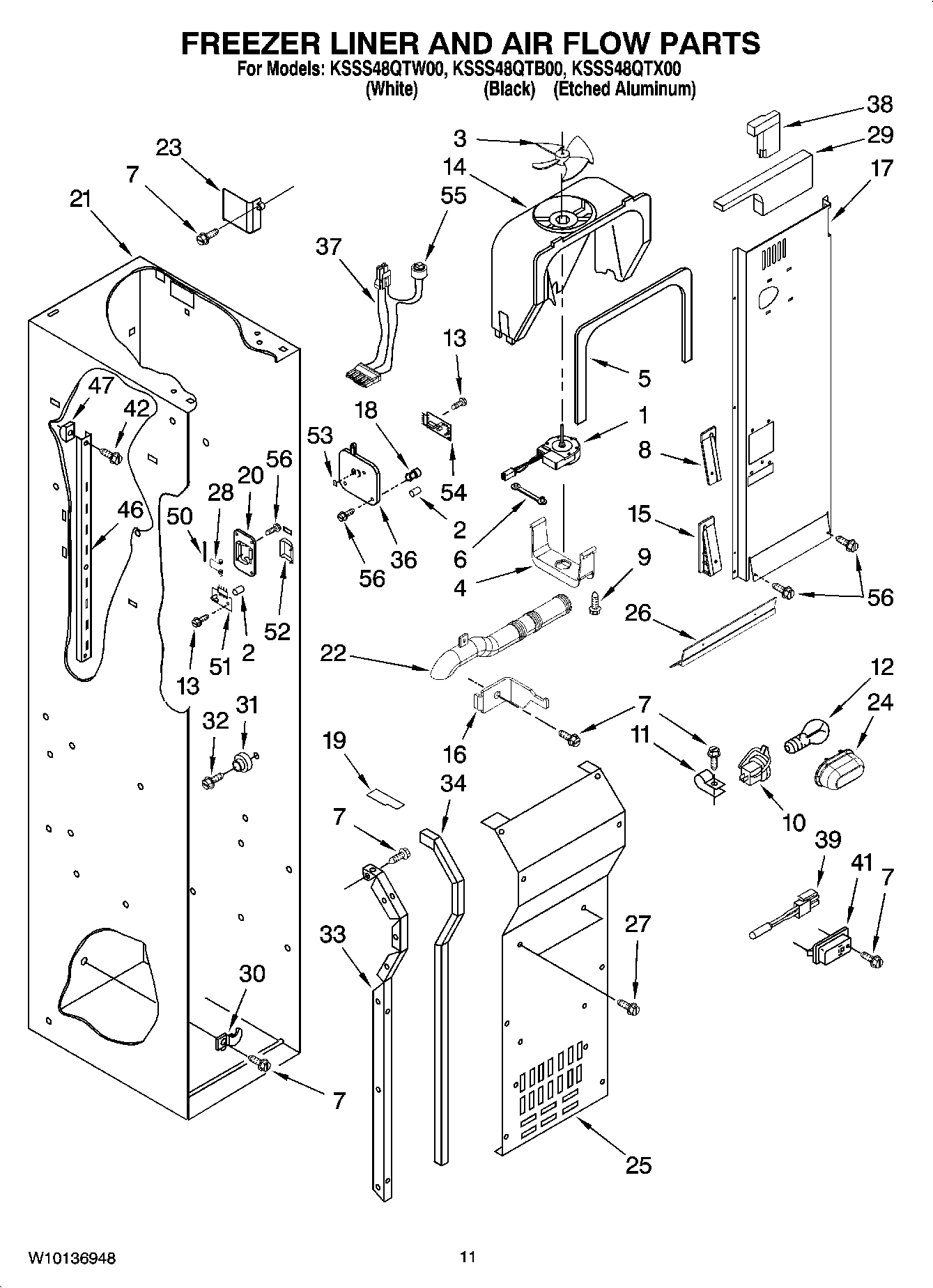

KSSS48QTX00 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	Tube, P.C. Board
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WP489128 Whirlpool Refrigerator Screw
10	WPW10191429 Whirlpool Refrigerator Socket
11	Clamp, Tube
12	WPA3073101 Whirlpool Light Bulb
13	2006254 Whirlpool Refrigerator Screw
14	WP2182120 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Bracket, Vent Tube
17	Air Duct
18	WP2198643 Whirlpool Refrigerator Lens
19	8201798 Whirlpool Refrigerator Fan Block
19	2209066 Whirlpool Refrigerator Fan Block
20	WP2215650 Whirlpool Refrigerator Cover
21	Liner (Not A Serviceable Part)
22	Tube, Vent
23	2259025 Whirlpool Refrigerator Air Cover
24	Light Shield
25	Cover, Evaporator
26	2302851 Whirlpool Support
27	WP488729 Whirlpool Refrigerator Door Screw
28	WP2198635 Whirlpool Refrigerator Spring
29	Deflector, Air Duct
30	1112260 Whirlpool EV Support
31	WP2196483 Whirlpool Refrigerator Shelf Stud
32	WP3400806 Whirlpool Screw
33	2259355 Whirlpool Refrigerator Evaporator Rail
33	Evaporator, Cover Rail (Left Side)
34	2220904 Whirlpool Refrigerator Gasket
36	2259493 Whirlpool Refrigerator Cover
37	Harness, Evap Fan (Includes Item 42)
39	WP2306010 Whirlpool Refrigerator Thermistor
41	WP2317844 Whirlpool Refrigerator Cover
42	2006475 Whirlpool Refrigerator Screw
46	WP2259032 Whirlpool Ladder
47	2259445 Whirlpool Support Assembly
50	WP2198634 Whirlpool Door Pin
51	W10757851-includeCORE Whirlpool Electronic Control+Core
52	WP2198633 Whirlpool Refrigerator Flipper
53	2255563 Whirlpool Refrigerator Slide
55	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
56	WPW10142283 Whirlpool Refrigerator Screw
