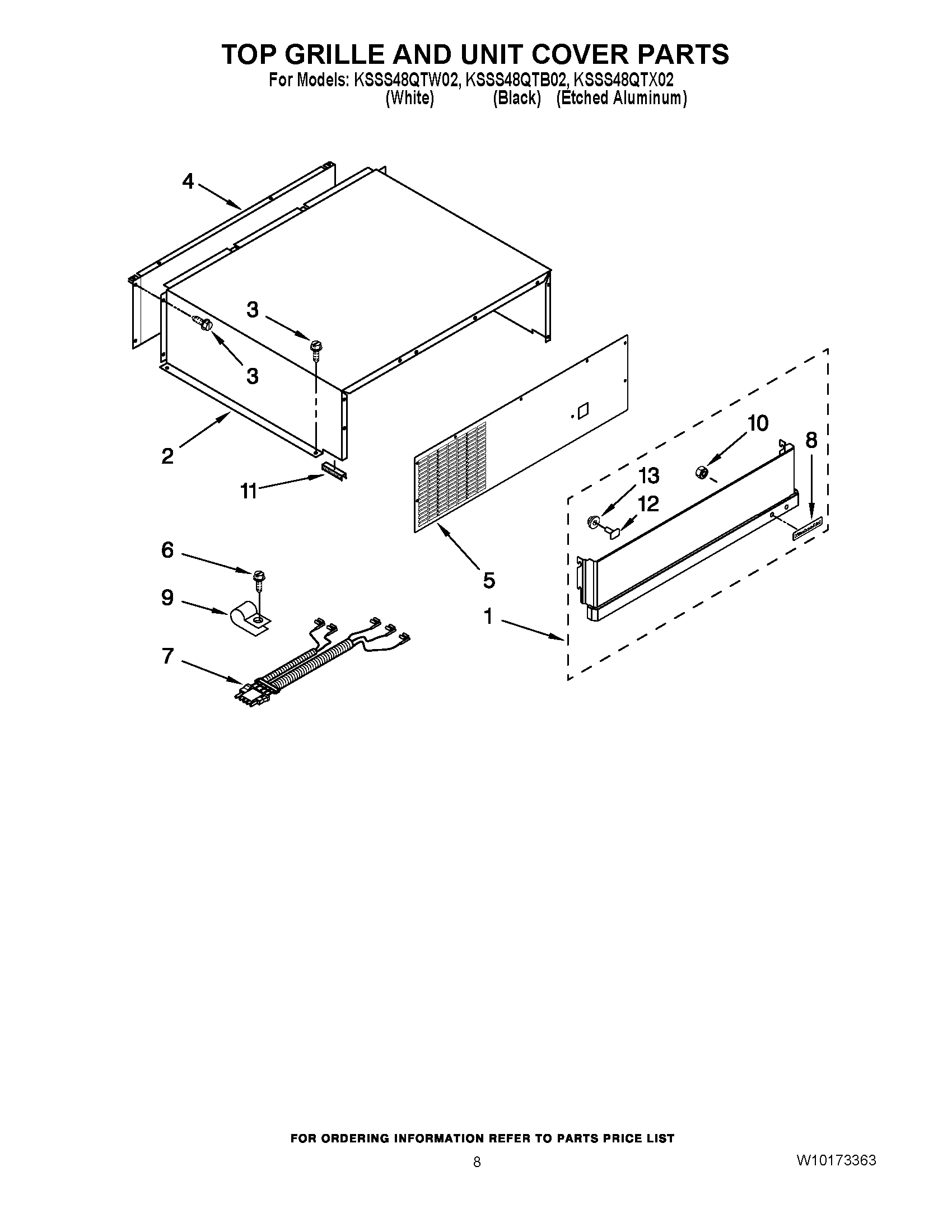

KSSS48QTX02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly (White)
1Panel, Decorative Assembly (Black)
1Top, Grille Assy
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover, Unit Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
8Badge, Kitchen Aid (White)
8Badge, Kitchen Aid (Black)
8NAMEPLATE
9489348 Whirlpool Refrigerator Tube Clamp
10WP2004333 Whirlpool Refrigerator Nut
112215910 Whirlpool Refrigerator Grommet
122003347 Whirlpool Screw
13WP488130 Whirlpool Air Conditioner Nut
