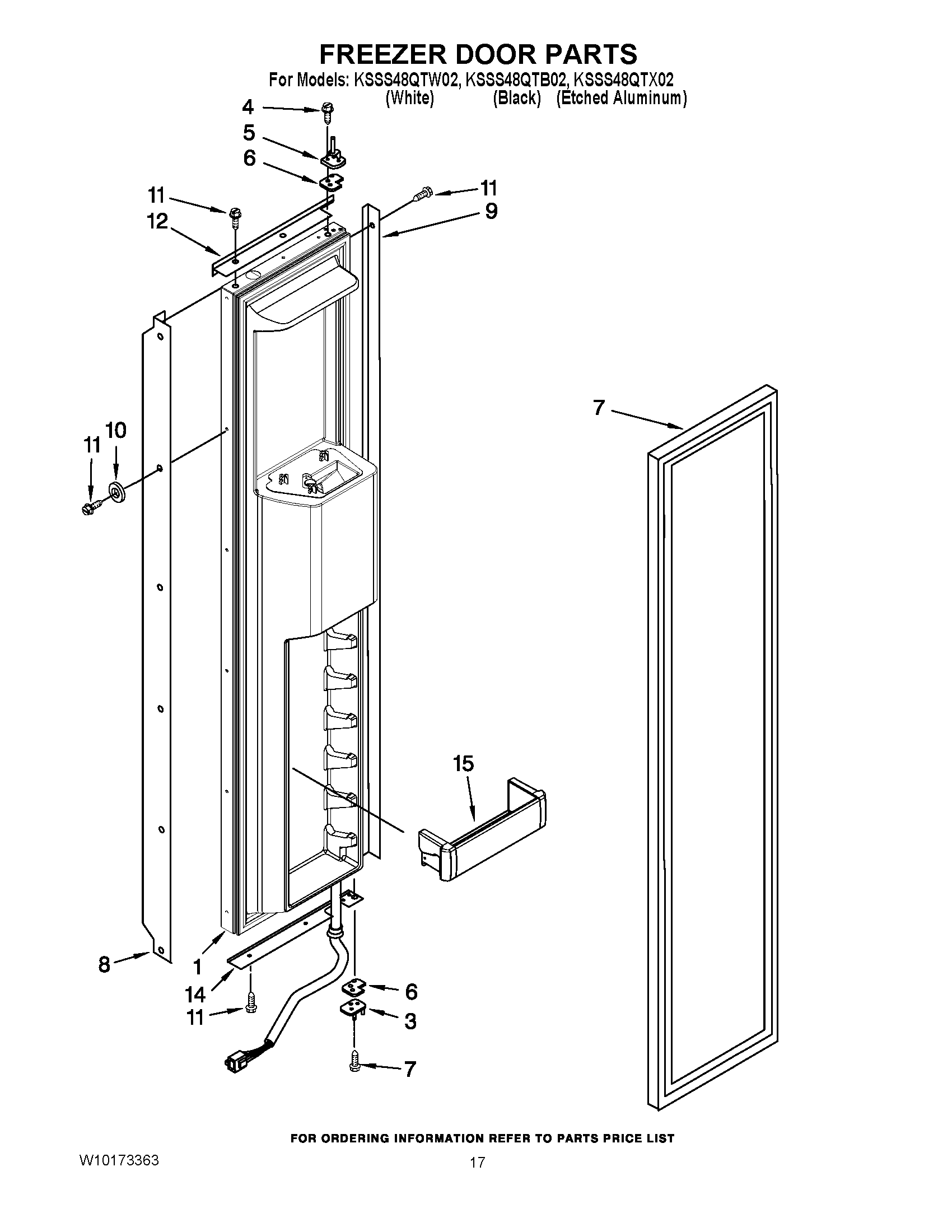

KSSS48QTX02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.14) (WHITE)
1	FREEZER DOOR (INCLUDES No.14) (BLACK)
1	FREEZER DOOR (INCLUDES No.14) (UNIVERSAL SILVER)
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
5	W11724512 Whirlpool Door Hinge
6	W11673500 Whirlpool Door Hinge
7	Door Gasket, Magnetic
8	Handle, Door (Black)
8	Handle, Door
8	Handle, Door (White)
9	Trim-Door, Side
9	Trim (Side) (White)
9	Trim (Side) (Black)
10	Washer
11	Screw 8-15 x 1/2 (White)
12	Trim-Door, Top
12	Trim (Top) (Black)
12	Trim (Top) (White)
14	Trim (Bottom) (White)
14	Trim-Door, Bottom
14	Trim (Bottom) (Black)
15	W11590561 Whirlpool Refrigerator Cantilever Bin
