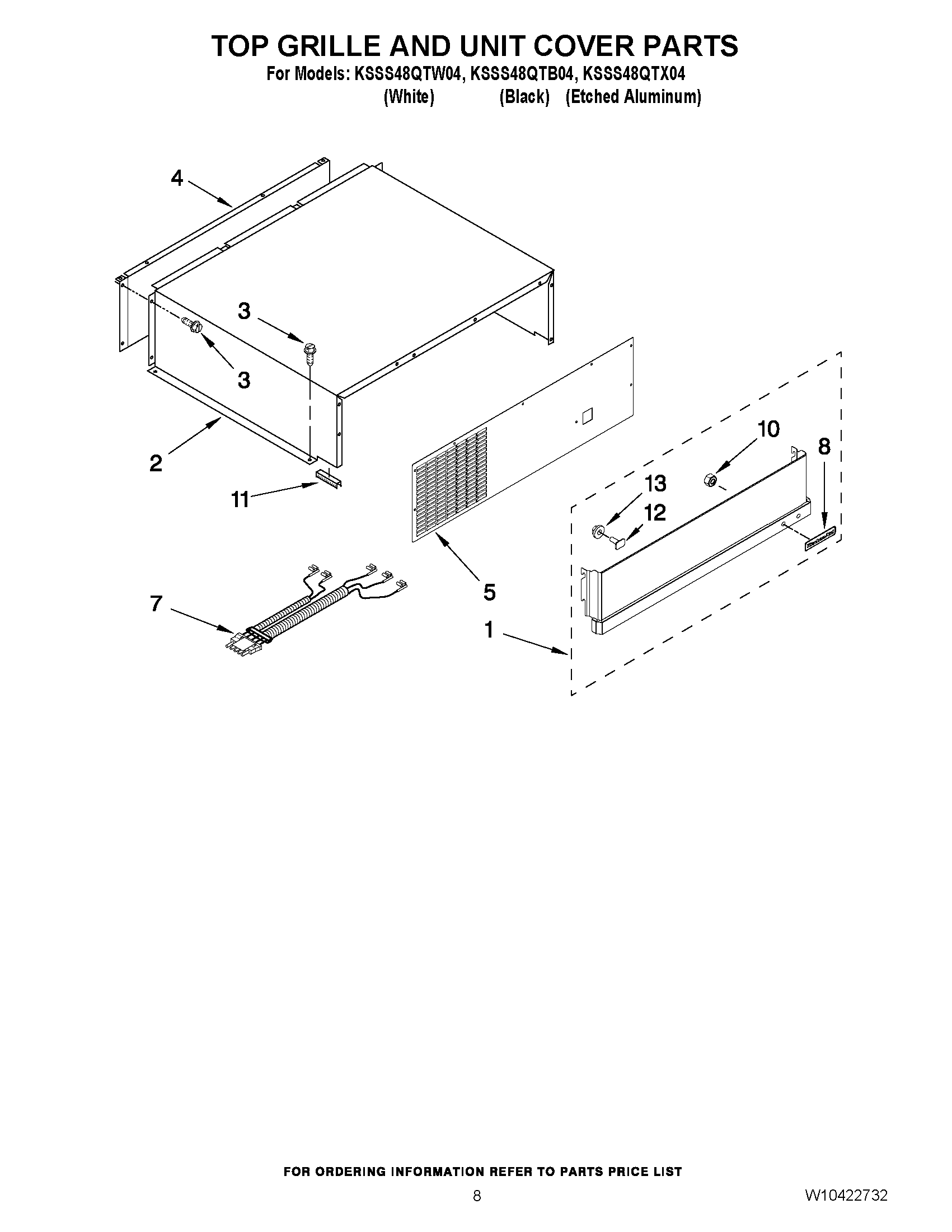

KSSS48QTX04 06 – TOP GRILLE AND UNIT COVER PARTS

KSSS48QTX04 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSS48QTX04 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorative Assembly (White)
1Panel, Decorative Assembly (Black)
1Top, Grille Assy
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5FRONT, UNIT COVER
7W10167456 Whirlpool Harness Switch
8NAMEPLATE
8Badge, Kitchen Aid (Black)
8Badge, Kitchen Aid (White)
10WP2004333 Whirlpool Refrigerator Nut
112215910 Whirlpool Refrigerator Grommet
122003347 Whirlpool Screw
13WP488130 Whirlpool Air Conditioner Nut
