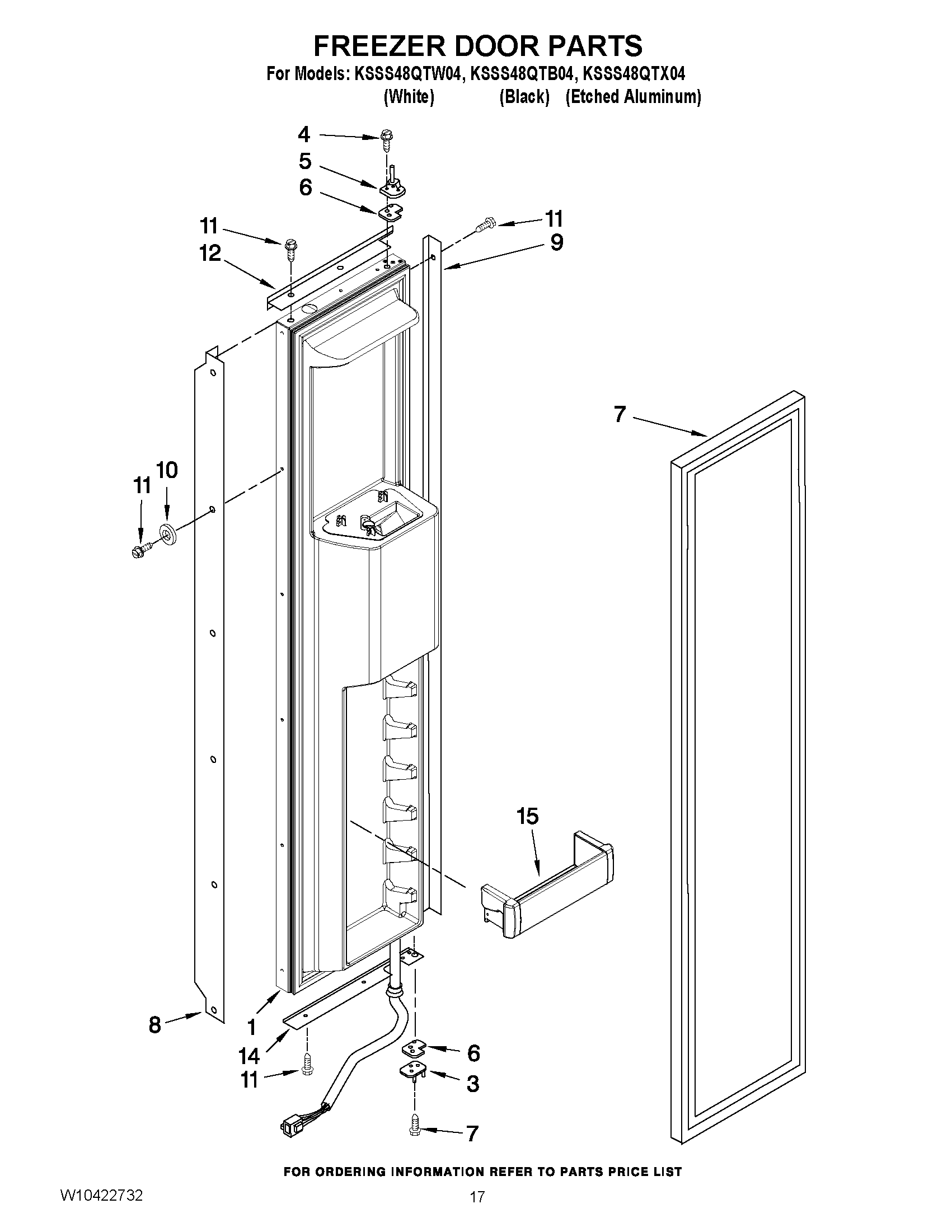

KSSS48QTX04 11 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.7) (WHITE)
1FREEZER DOOR (INCLUDES No.7) (BLACK)
1FREEZER DOOR (INCLUDES No.7) (UNIVERSAL SILVER)
1FREEZER DOOR (INCLUDES No.7)
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266901 Whirlpool Door Gasket
8Handle, Door (Black)
8Handle, Door (White)
8Handle, Door
9Trim (Side) (Black)
9Trim (Side) (White)
9Trim-Door, Side
10Washer
11Screw 8-15 x 1/2 (White)
12Trim-Door, Top
12Trim (Top) (Black)
12Trim (Top) (White)
14Trim-Door, Bottom
14Trim (Bottom) (Black)
14Trim (Bottom) (White)
15W11590561 Whirlpool Refrigerator Cantilever Bin
