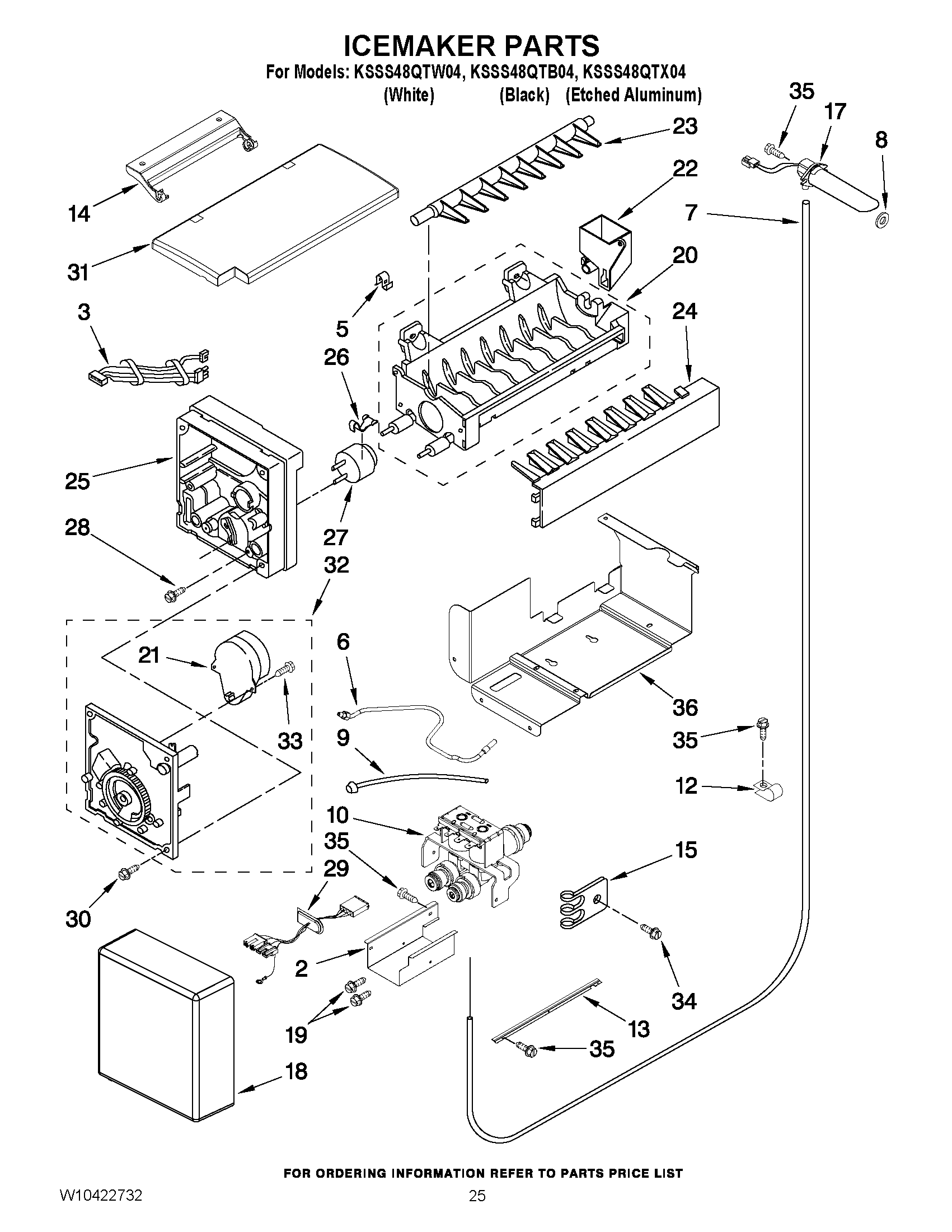

KSSS48QTX04 15 – ICEMAKER PARTS

Products

Position	Product
NI	WPW10395656 Whirlpool Refrigerator Ice Container
NI	W10129081 Whirlpool Refrigerator Handle
NI	Cleaner, Stainless Steel
2	2320601 Whirlpool Refrigerator Shield
3	Wire Assembly, Icemaker
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	Water Tube
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WPW10159842 Whirlpool Refrigerator Inlet Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Support, Valve
14	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15	WP488366 Whirlpool Refrigerator Clamp
17	W10460127 Whirlpool Refrigerator Inlet Tube
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141604 Whirlpool Screw
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	CABINET (NOT A SERVICEABLE PART)
22	W10122561 Whirlpool Refrigerator Cup Fill
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WPW10272161 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	W10279391 Whirlpool Refrigerator Wire Harness
30	WP681249 Whirlpool Screw Assembly
31	WPW10504754 Whirlpool Refrigerator Ice Door
32	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
33	489136 Whirlpool Refrigerator Screw
34	WP489464 Whirlpool Refrigerator Screw
35	W11624204 Whirlpool Screw
36	2252228 Whirlpool Refrigerator Bracket
100	WPW10277448 Whirlpool Icemaker Assembly
