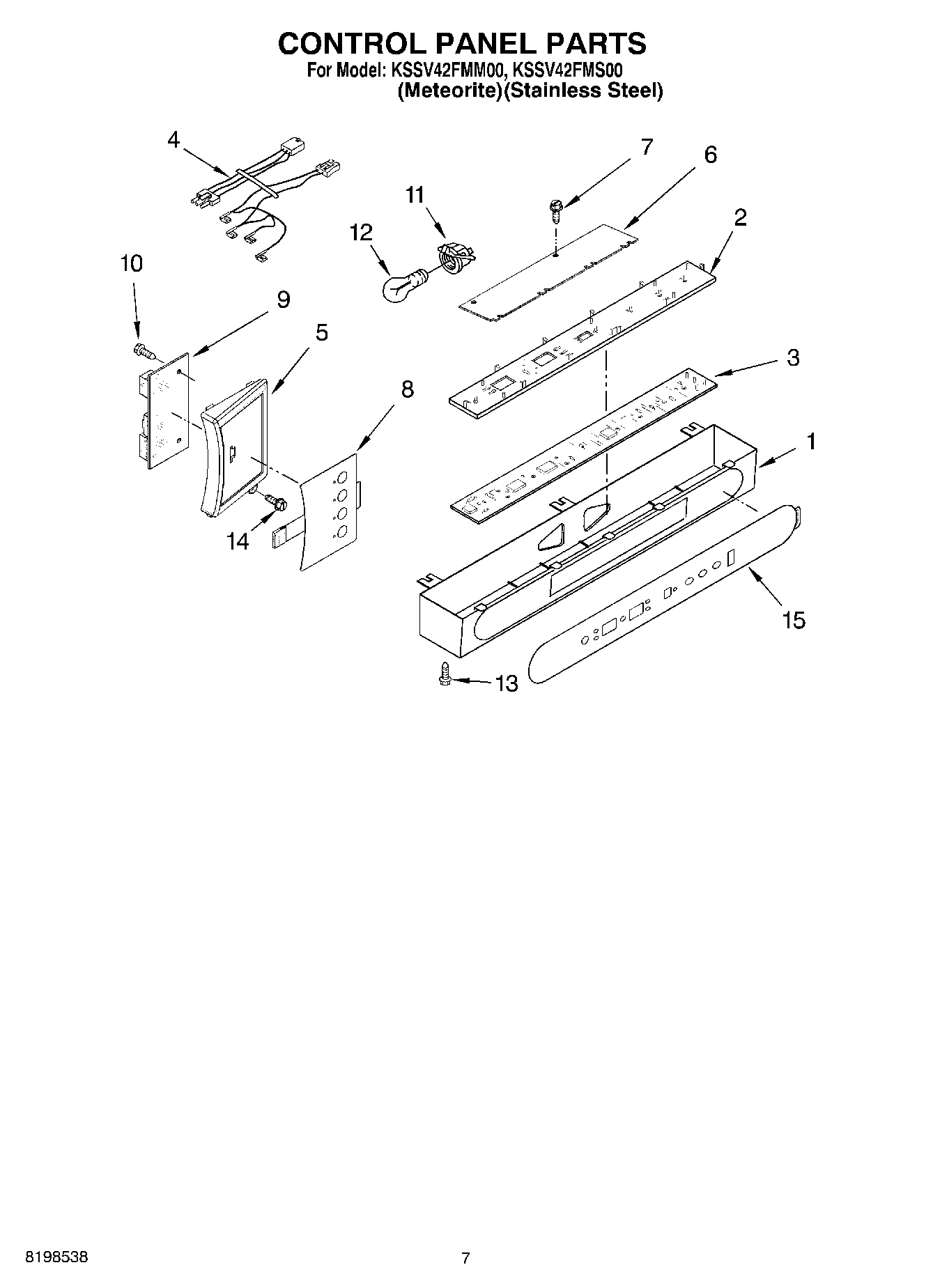

KSSV42FMM00 05 – CONTROL PANEL PARTS

KSSV42FMM00 05 – CONTROL PANEL PARTS

Written by

in

KSSV42FMM00 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Box
2Insert, Control Box
3Circuit Board, Housing Control
4Harness, Control Box
5Panel Control, Meat Pan
62221121 Whirlpool Refrigerator Support
7WP488920 Whirlpool Refrigerator Screw
9WP2306086 Whirlpool Refrigerator Electronic Control Board
102006254 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12RANGE ONLY 40W 120V APPL BULB
13W11624204 Whirlpool Screw
14WPW10142283 Whirlpool Refrigerator Screw
15OVERLAY
