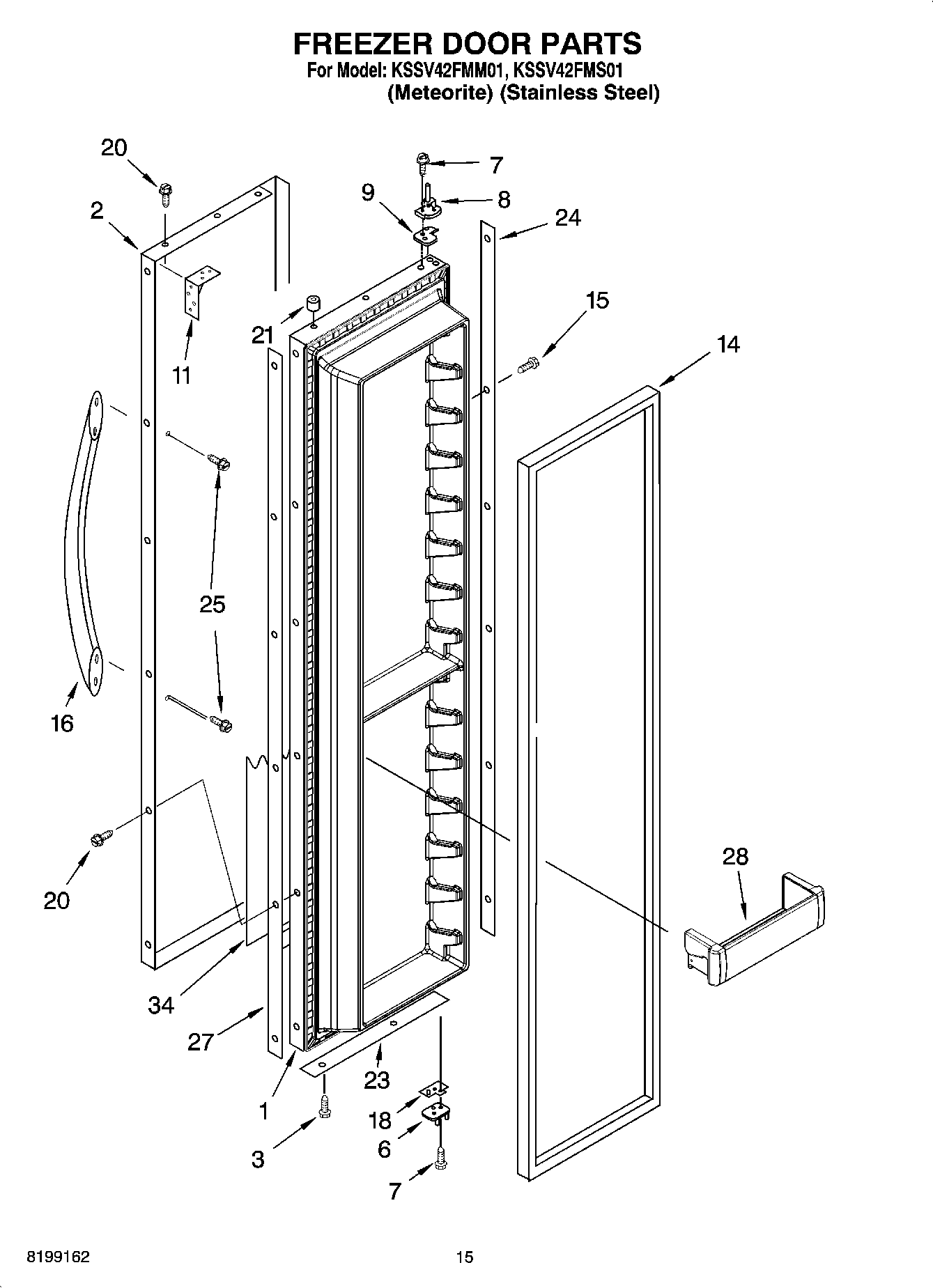

KSSV42FMM01 10 – FREEZER DOOR PARTS

KSSV42FMM01 10 – FREEZER DOOR PARTS

Written by

in

KSSV42FMM01 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
2Skin, Door (Stainless Steel)
2Skin, Door (Meteorite)
3W10759522 Whirlpool Screw
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
11BRACE, DOOR CORNER
14WP2266905 Whirlpool Refrigerator Door Gasket
15W11624204 Whirlpool Screw
16Handle, Door (Stainless Steel)
18Door Spacer, Bottom
20WP8281250 Whirlpool Refrigerator Screw
212005433 Whirlpool Refrigerator Spacer
23Spacer, Door Bottom
24Spacer, Hinge Side
25WP308544 Whirlpool Screw
27Spacer, Handle Side
28W10323602 Whirlpool Refrigerator Cantilever Bin
34Filler, Door
