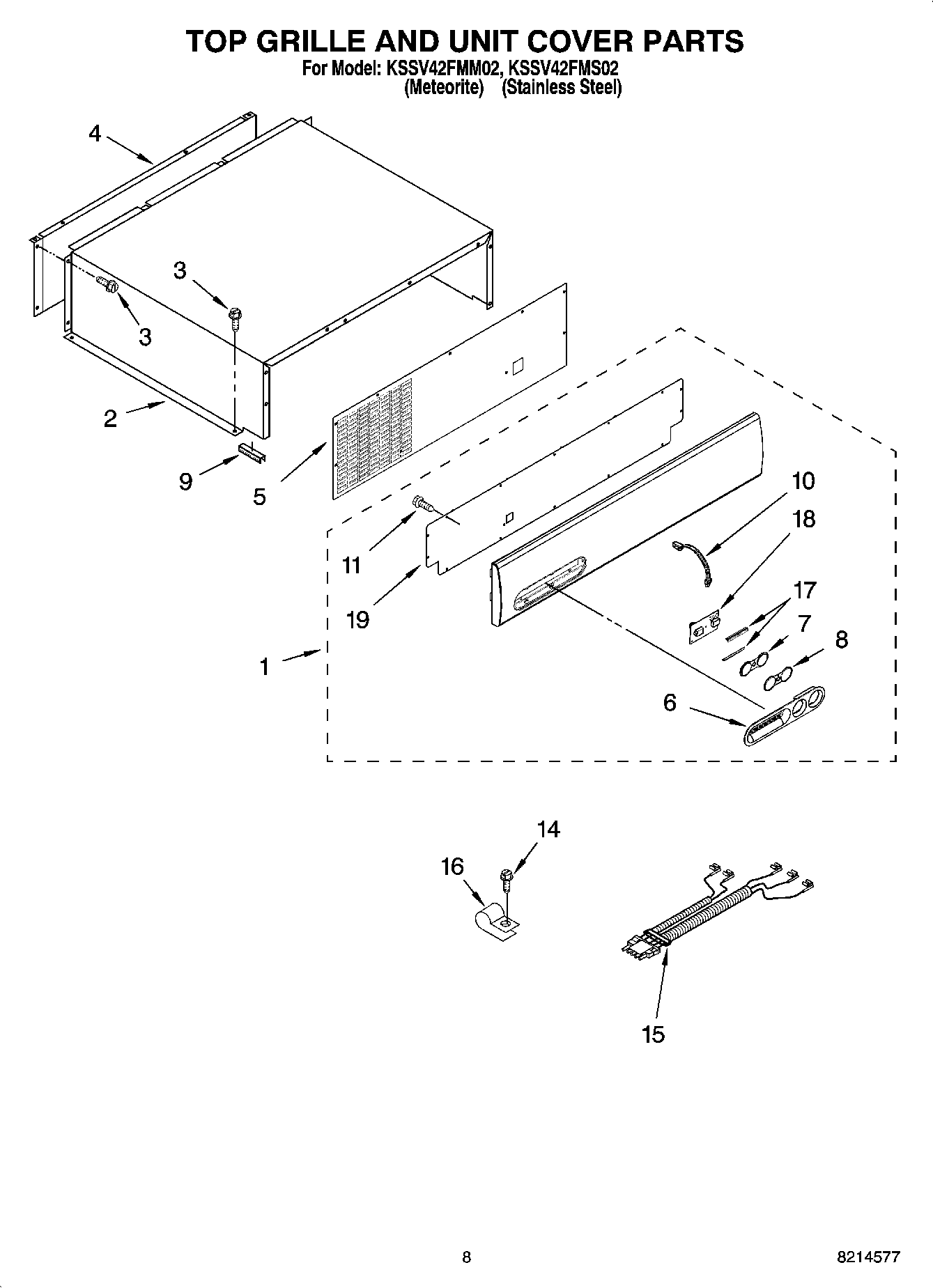

KSSV42FMM02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSV42FMM02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSV42FMM02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorator (Meteorite)
1Panel, Decorator (Stainless steel)
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6Insert, Temp-Guage (Meteorite)
6Insert, Temp-Guage (Stainless Steel)
7Cover, Temp-Guage
8Bezel, Temp-Guage
92215910 Whirlpool Refrigerator Grommet
10Jumper Harness, Temp-Display
11WP489128 Whirlpool Refrigerator Screw
14WP965173 Whirlpool Dishwasher Screw
15Wire Assembly RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
17Edging Panel
18Board, Control
19Rear Panel, Top Grille
