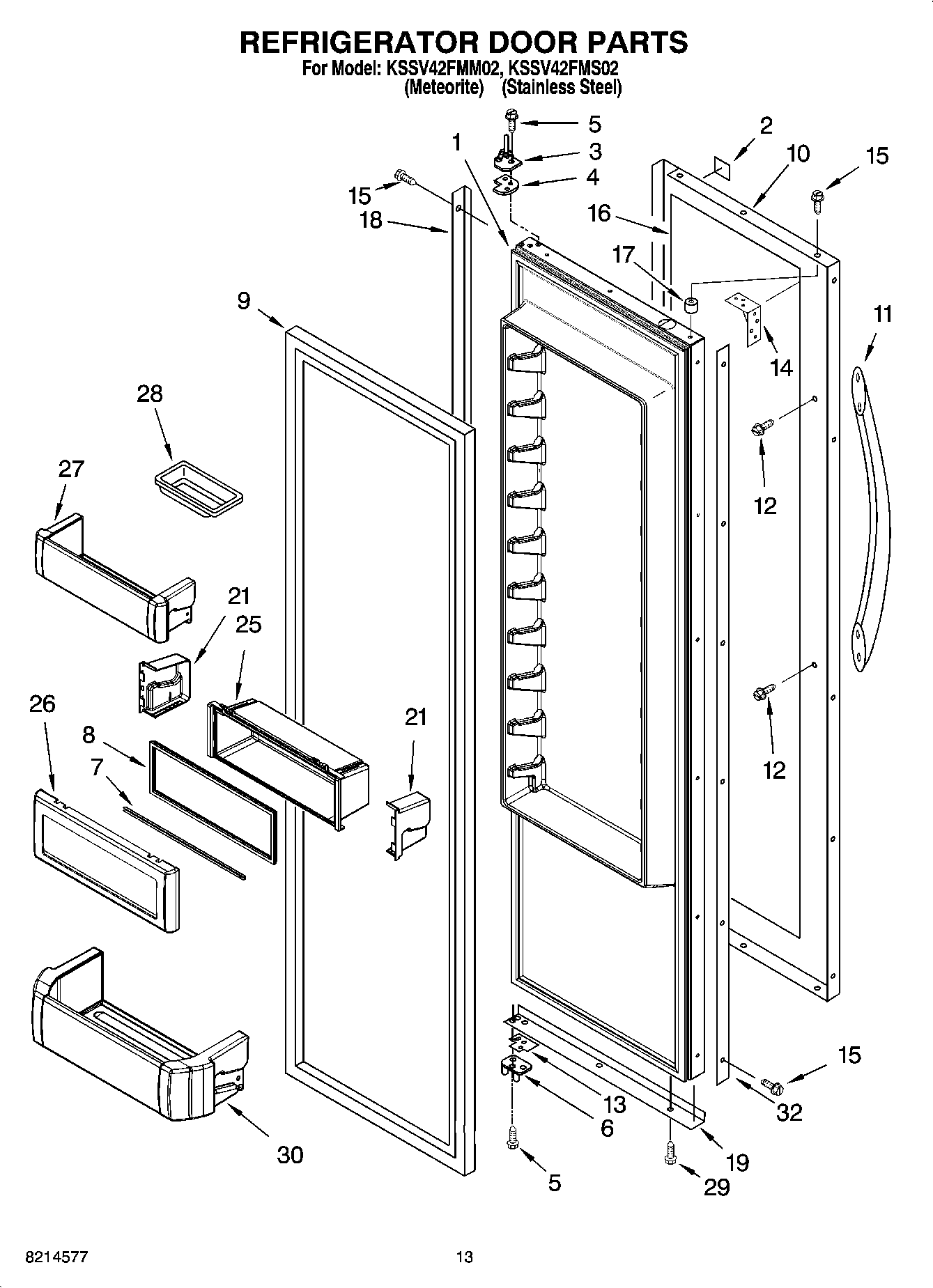

KSSV42FMM02 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Nameplate
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	Gasket, Utility Bin
9	WP2266902 Whirlpool Refrigerator Door Gasket
10	Door Skin (Stainless Steel)
10	Door Skin (Meteorite)
11	Handle, Door (Stainless Steel)
12	WP308544 Whirlpool Screw
13	Door Spacer, Bottom
14	BRACE, DOOR CORNER
15	WP8281250 Whirlpool Refrigerator Screw
16	Filler, Door
17	2005433 Whirlpool Refrigerator Spacer
18	Spacer, Hinge Side
19	Spacer, Door Bottom
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
25	W10323042 Whirlpool Cantilever Bin
26	W11553221 Whirlpool Refrigerator Door Compressor
27	W10323599 Whirlpool Refrigerator Cantilever Bin
28	Butter Tray
29	W10759522 Whirlpool Screw
30	W10323747 Whirlpool Refrigerator Cantilever Bin
32	Spacer, Handle Side
