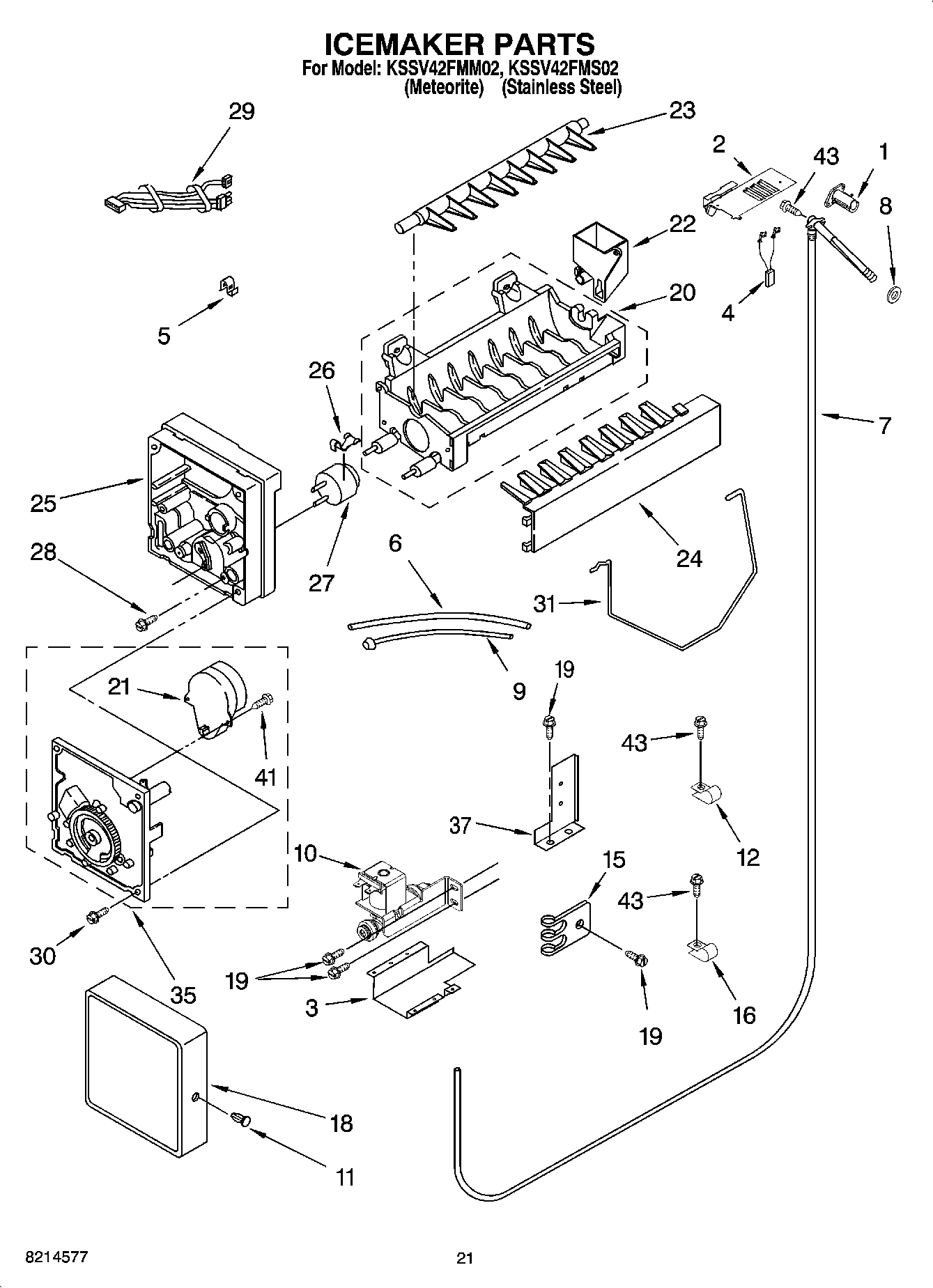

KSSV42FMM02 13 – ICEMAKER PARTS

Products

Position	Product
1	WP2221240 Whirlpool Refrigerator Heater
2	WP2221231 Whirlpool Refrigerator Shield
3	Cover, Bottom
4	Jumper, Heater Fill Tube
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	W11662302 Whirlpool Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WP2313917 Whirlpool Refrigerator Inlet Valve
11	WP489115 Whirlpool Refrigerator Rivet
12	W10833902 Whirlpool Refrigerator Clamp
15	WP488366 Whirlpool Refrigerator Clamp
16	488946 Whirlpool Air Conditioner Clamp
18	Cover
19	WP489464 Whirlpool Refrigerator Screw
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	Wire Harness, Icemaker
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
100	WPW10277450 Whirlpool Refrigerator Icemaker
100	Cleaner, Stainless Steel
100	FOLLOWING PARTS NOT ILLUSTRATED
100	(Optional Parts Only)
