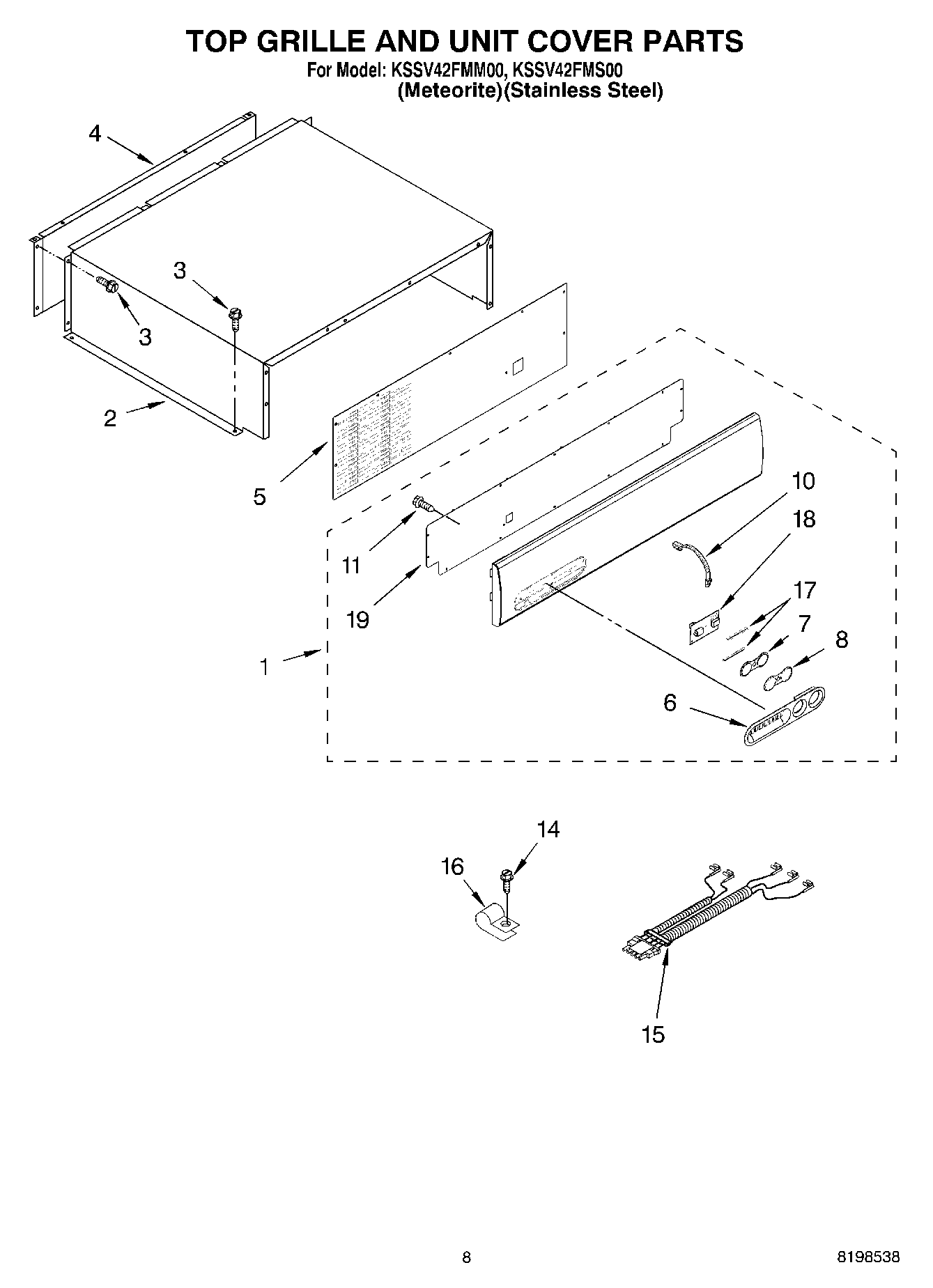

KSSV42FMS00 06 – TOP GRILLE AND UNIT COVER PARTS

Products

Position	Product
1	Panel, Decorator (Meteorite)
1	Panel, Decorator (Stainless steel)
2	Cover, Unit
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	Insert, Temp-Guage (Meteorite)
6	Insert, Temp-Guage (Stainless Steel)
7	Cover, Temp-Guage
8	Bezel, Temp-Guage
10	Jumper Harness, Temp-Display
11	WP489128 Whirlpool Refrigerator Screw
14	WP965173 Whirlpool Dishwasher Screw
15	Wire Assembly RC/FC Light Switch
16	489348 Whirlpool Refrigerator Tube Clamp
17	Edging Panel
18	Board, Control
19	Rear Panel, Top Grille
