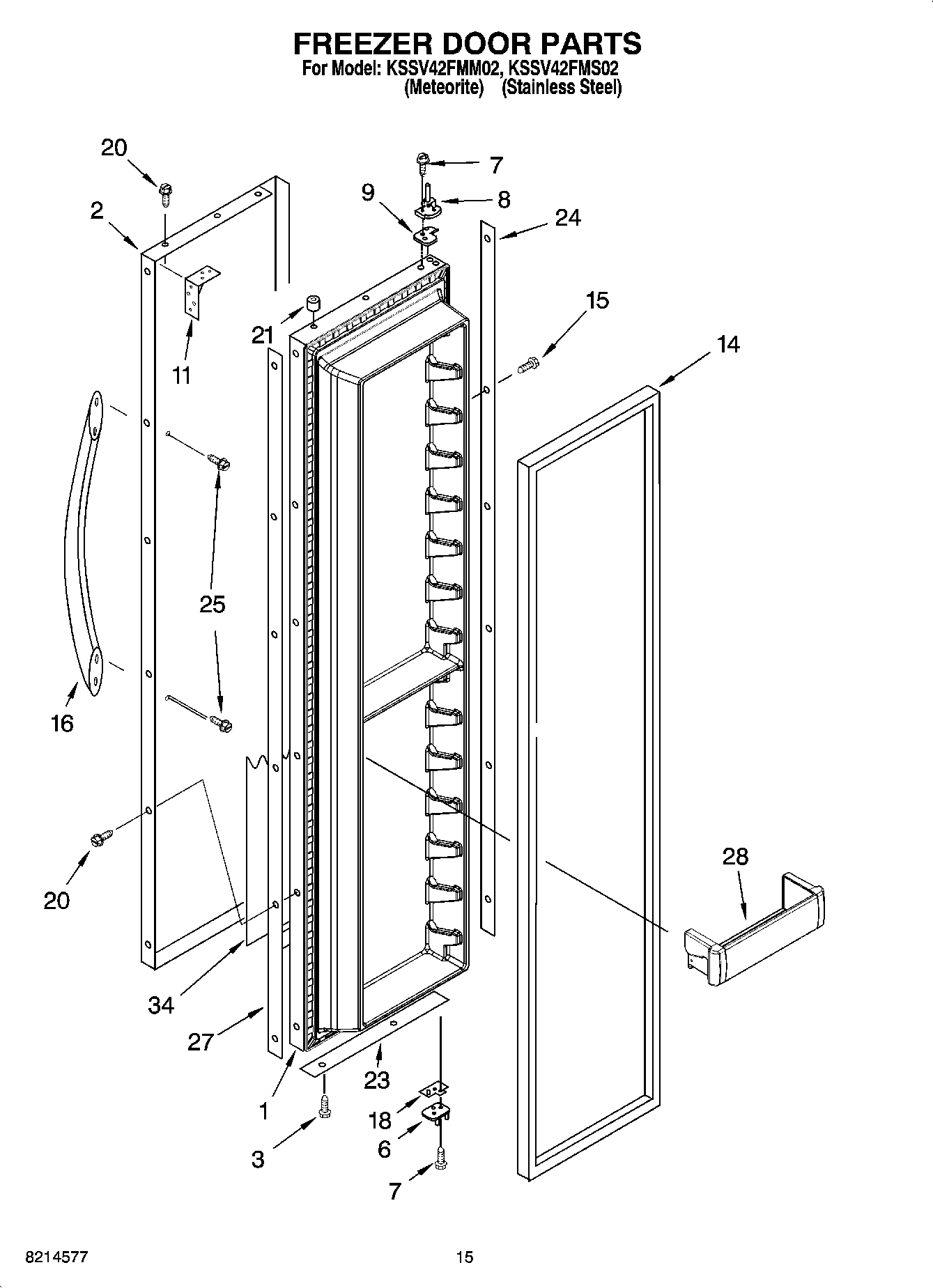

KSSV42FMS02 10 – FREEZER DOOR PARTS

Products

Position	Product
1	LW10193486 Whirlpool Refrigerator FIP Stainless Steel Door
2	Skin, Door (Stainless Steel)
2	Skin, Door (Meteorite)
3	W10759522 Whirlpool Screw
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
11	BRACE, DOOR CORNER
14	WP2266905 Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door (Stainless Steel)
18	Door Spacer, Bottom
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
23	Spacer, Door Bottom
24	Spacer, Hinge Side
25	WP308544 Whirlpool Screw
27	Spacer, Handle Side
28	W10323602 Whirlpool Refrigerator Cantilever Bin
34	Filler, Door
