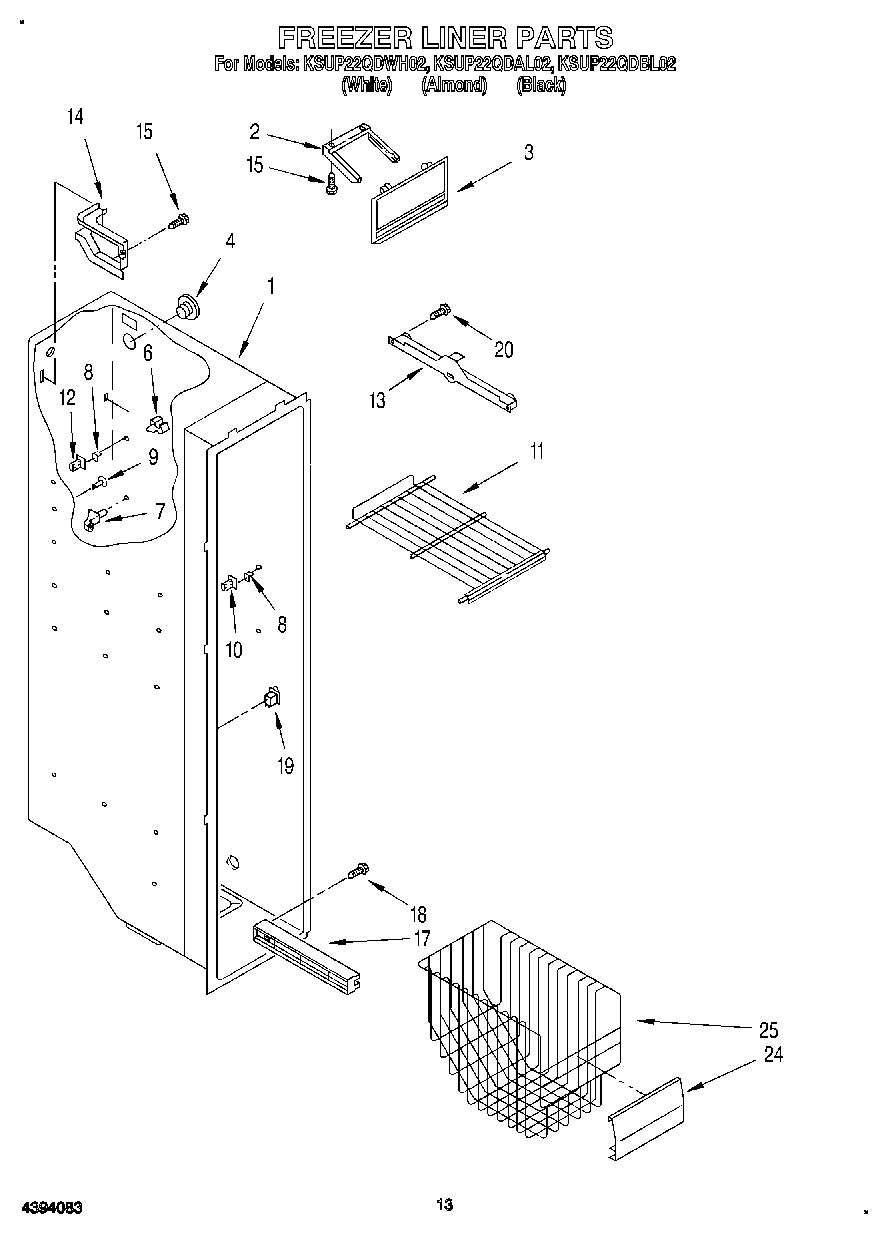

KSUP22QDBL02 08 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4940014 Whirlpool Refrigerator Primary Button Plug
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Stud, Support
9Grommet
10Stud, Front R.S.
11WP2174249K Whirlpool Refrigerator Wire Shelf
11Shelf (2)
12Stud, Rear R.S.
13W10845583 Whirlpool Refrigerator Track
13W10845585 Whirlpool Refrigerator Track
14Cover, Wiring
15SCREW
17Slide, Basket (Right Side (2))
17Slide, Basket (Left Side (2))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
24Basket, Front
25Freezer Bin
