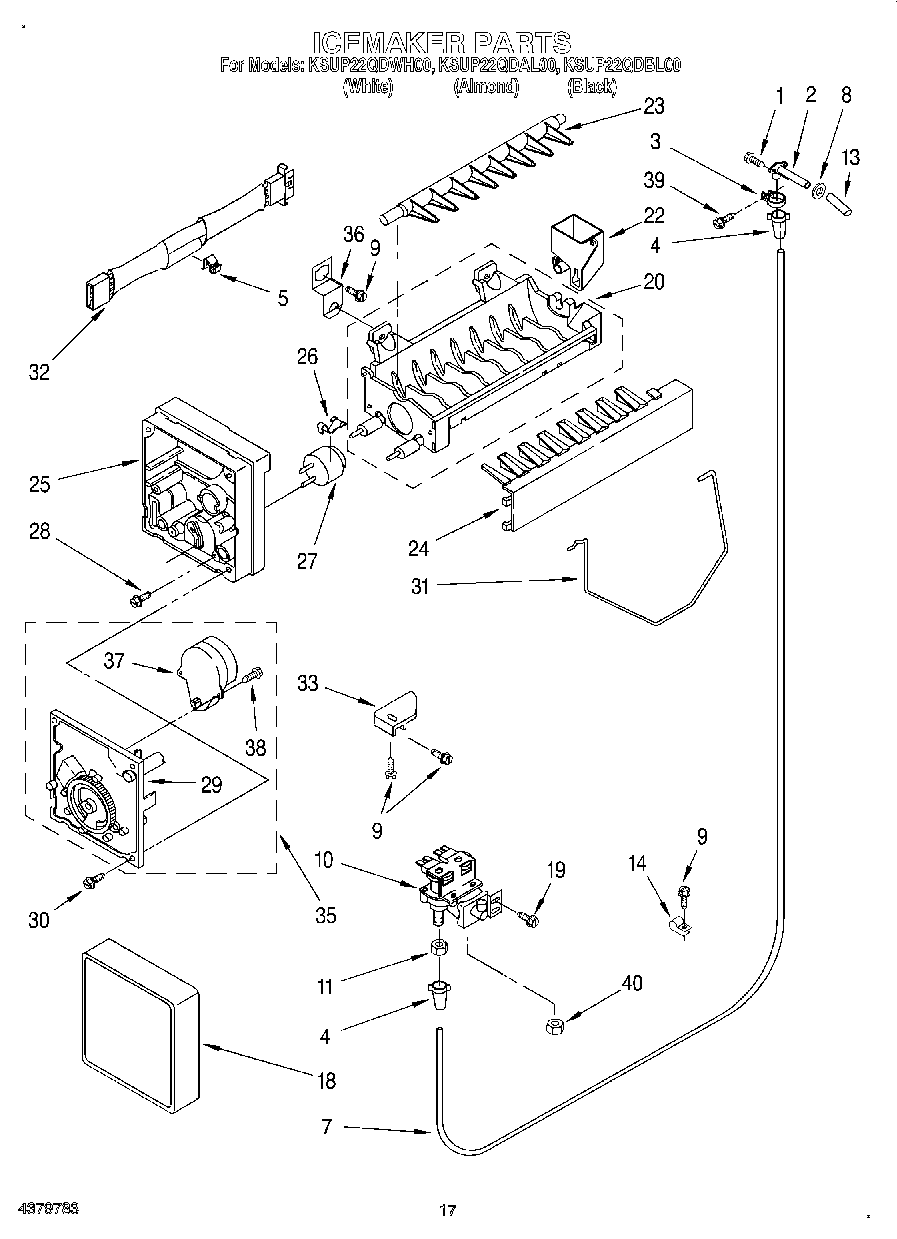

KSUP22QDWH00 11 – ICEMAKERadmin2025-04-26T12:15:07+00:00KSUP22QDWH00 11 – ICEMAKER ProductsPositionProduct2WP2196157 Whirlpool Fill Tube3WP488878 Whirlpool Refrigerator Tube Clamp44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip7W10823511 Whirlpool Refrigerator Water Tube8WP1106508 Whirlpool Refrigerator Gasket9WP489478 Whirlpool Refrigerator Screw10W10853654 Whirlpool Water Inlet Valve11WP627018 Whirlpool Refrigerator Nut13Tube, Water Inlet14WP488366 Whirlpool Refrigerator Clamp18WPW10289690 Whirlpool Ice Maker Cover19WPW10141625 Whirlpool Refrigerator Screw Assembly20WP542638 Whirlpool Refrigerator Grease20WPW10190929 Whirlpool Refrigerator Ice Maker Mold22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat27Cement Alumilastic)288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm32WP2187464 Whirlpool Refrigerator Wire Harness33W11500948 Whirlpool Refrigerator Bracket35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly36Clip, Support (2)38489136 Whirlpool Refrigerator Screw39WP488787 Whirlpool Refrigerator Screw40Nut, Compression1004317943 Whirlpool Refrigerator Ice Maker Assembly
