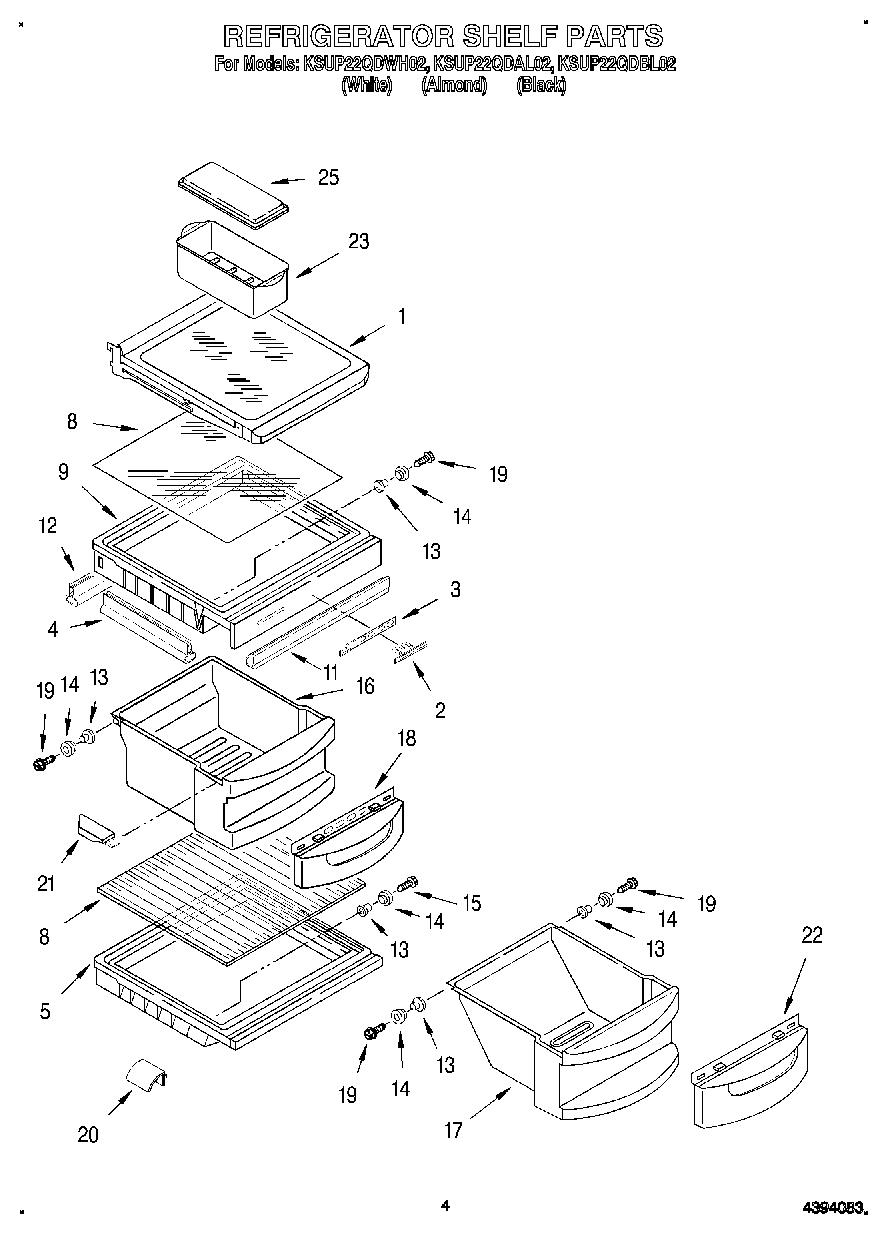

KSUP22QDWH02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (3)
2Button, Humidity Control
32174252 Whirlpool Refrigerator Slide
4Gasket, Side (2)
5WP2161491 Whirlpool Crisper Drawer Cover
8Glass, Cover
9Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, (Rear)
13Eyelet, Roller
14Roller
15WPW10272364 Whirlpool Refrigerator Screw
16WP2179227 Whirlpool Refrigerator Crisper Pan
17Meat Pan (Includes 13, 14, 19, & 22)
18Window, Crisper
19WP489261 Whirlpool Refrigerator Screw
202176095 Whirlpool Refrigerator Deflector
21Cap, Crisper (Right Side)
21Cap, Crisper (Left Side)
22Window, Meat Pan
23W10136387A Whirlpool Refrigerator Egg Container
25Cover
