KSUP25QDWH05 06 – REFRIGERATOR DOOR
Written by
in

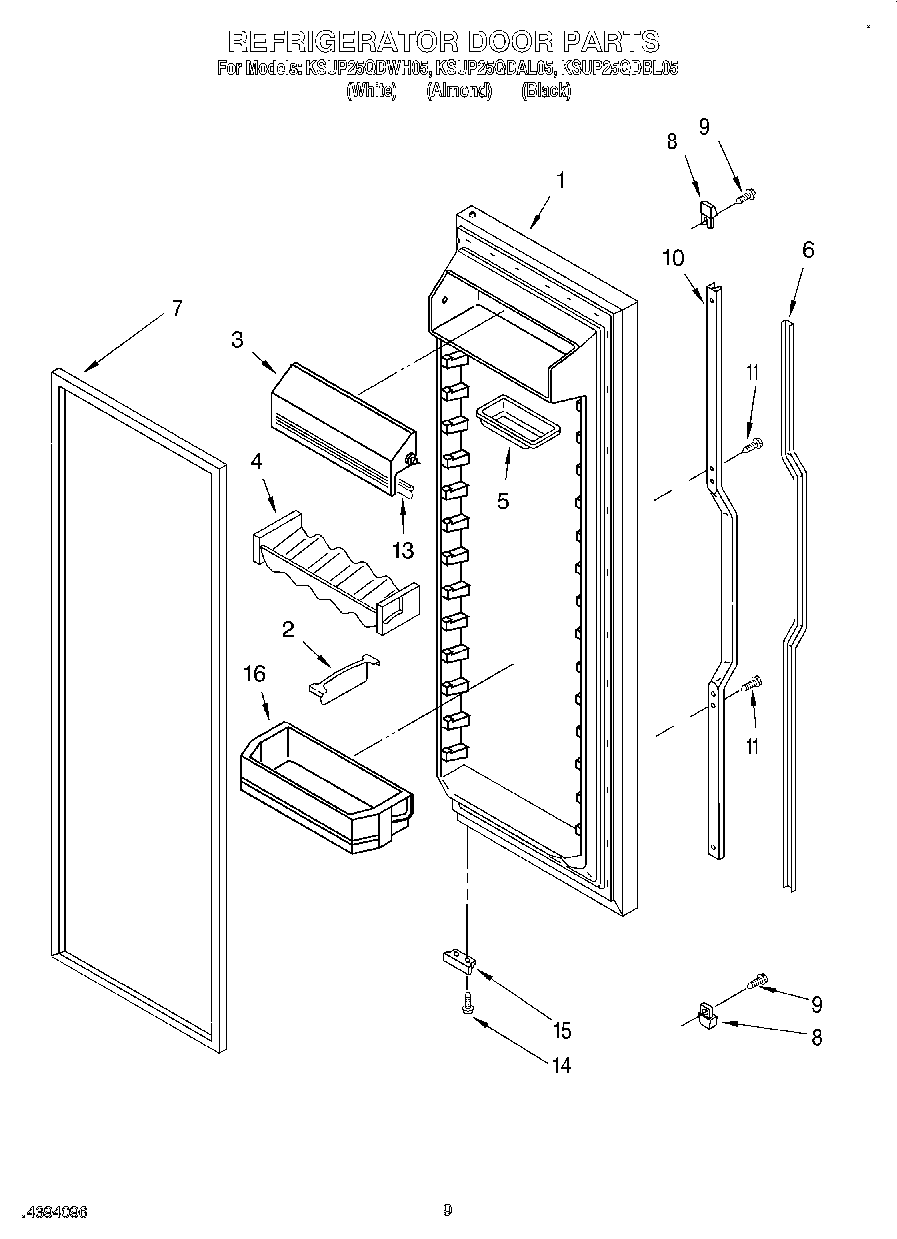

KSUP25QDWH05 06 – REFRIGERATOR DOOR
Products
Position
Product
1
Refrigerator Door (Includes No.7) (Black)
1
Refrigerator Door (Includes No.7) (Almond)
1
Refrigerator Door (Includes No.7) (White)
2
Divider, Door Bin (2)
3
Door, Compartment
4
WPL 1125981
5
Butter, Tray
6
Handle, Insert (Black)
6
Insert, Handle (Biscuit)
6
Insert, Handle
7
2159075 Whirlpool Door Gasket Seal
7
2159083 Whirlpool Gasket Door
8
End Cap (2)
9
Screw
10
Retainer, Insert
11
WP489463 Whirlpool Refrigerator Screw
13
Gasket, Door Compartment
14
WP999367 Whirlpool Refrigerator Screw
15
Bracket, Door Stop
15
Bracket, Door Stop
16
Bin, Door Shelf
16
Black Glass
16
Acrylic Panel Kit (White)
16
Handle Inserts (Black Grille Kit)
16
Handle Inserts (Woodgrain)
16
Handle Inserts (Black)
16
Trim Kit
16
Acrylic Panel Kit (Almond)
←
