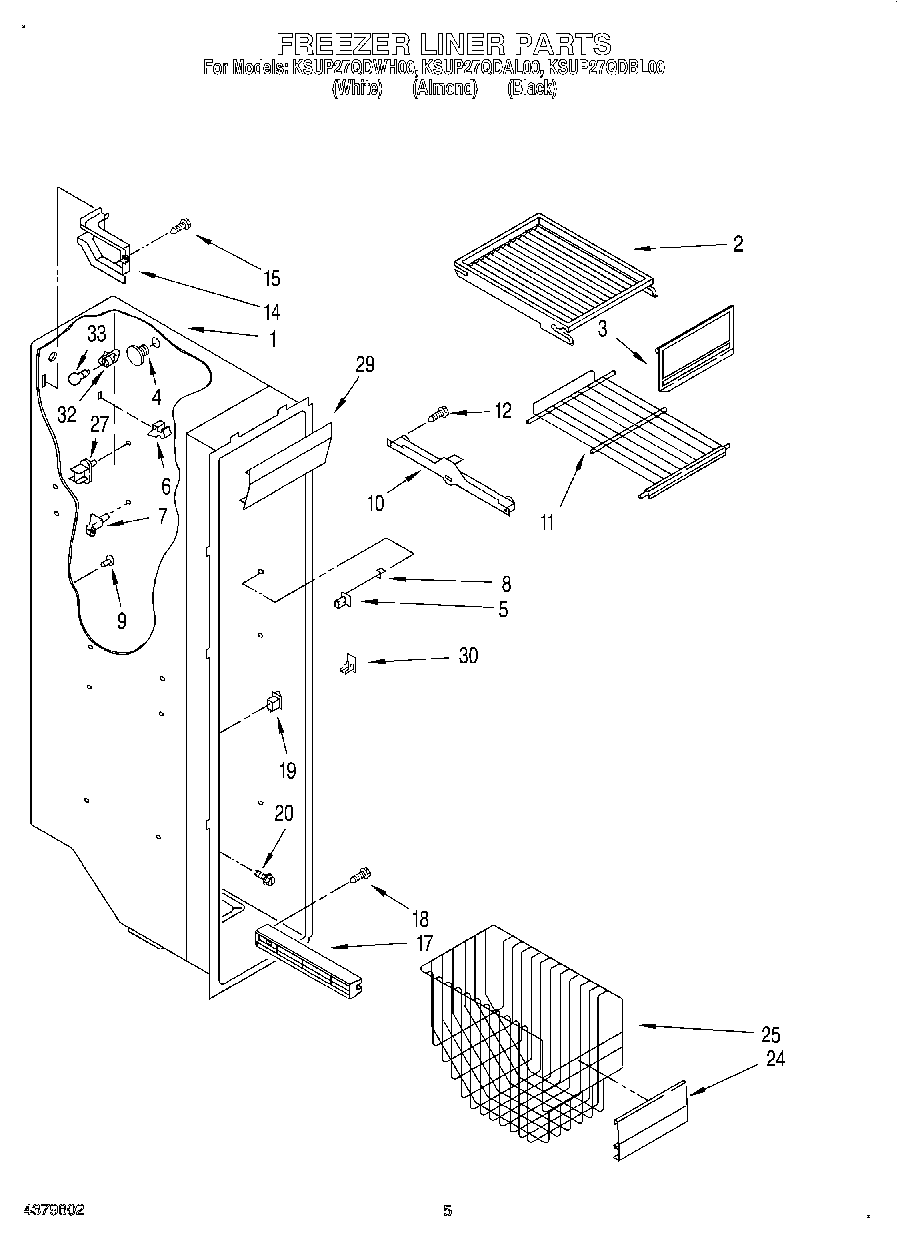

KSUP27QDAL00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shelf, Top Compartment
3	WP2171713 Whirlpool Refrigerator Ice Door
4	940014 Whirlpool Refrigerator Primary Button Plug
5	Stud, Front R.S.
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet
10	W10845585 Whirlpool Refrigerator Track
10	W10845583 Whirlpool Refrigerator Track
11	Shelf (2)
11	WP2174267 Whirlpool Refrigerator Wire Shelf
12	718257 Whirlpool Dishwasher Screw
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
17	Slide, Basket (Right Side)
17	Slide, Basket (Left Side)
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WP489478 Whirlpool Refrigerator Screw
24	2305580K Whirlpool Refrigerator Basket Trim
25	Basket, Slope
27	Stud, Shelf (4)
29	2171705 Whirlpool Refrigerator Light Lens
30	Stud, Rear R.S.
32	4387478 Whirlpool Refrigerator Light Socket
33	RANGE ONLY 40W 120V APPL BULB
