KSVD060BWH0 01 – SECTION

KSVD060BWH0 01 – SECTION

Written by

in

KSVD060BWH0 01 – SECTION

Products

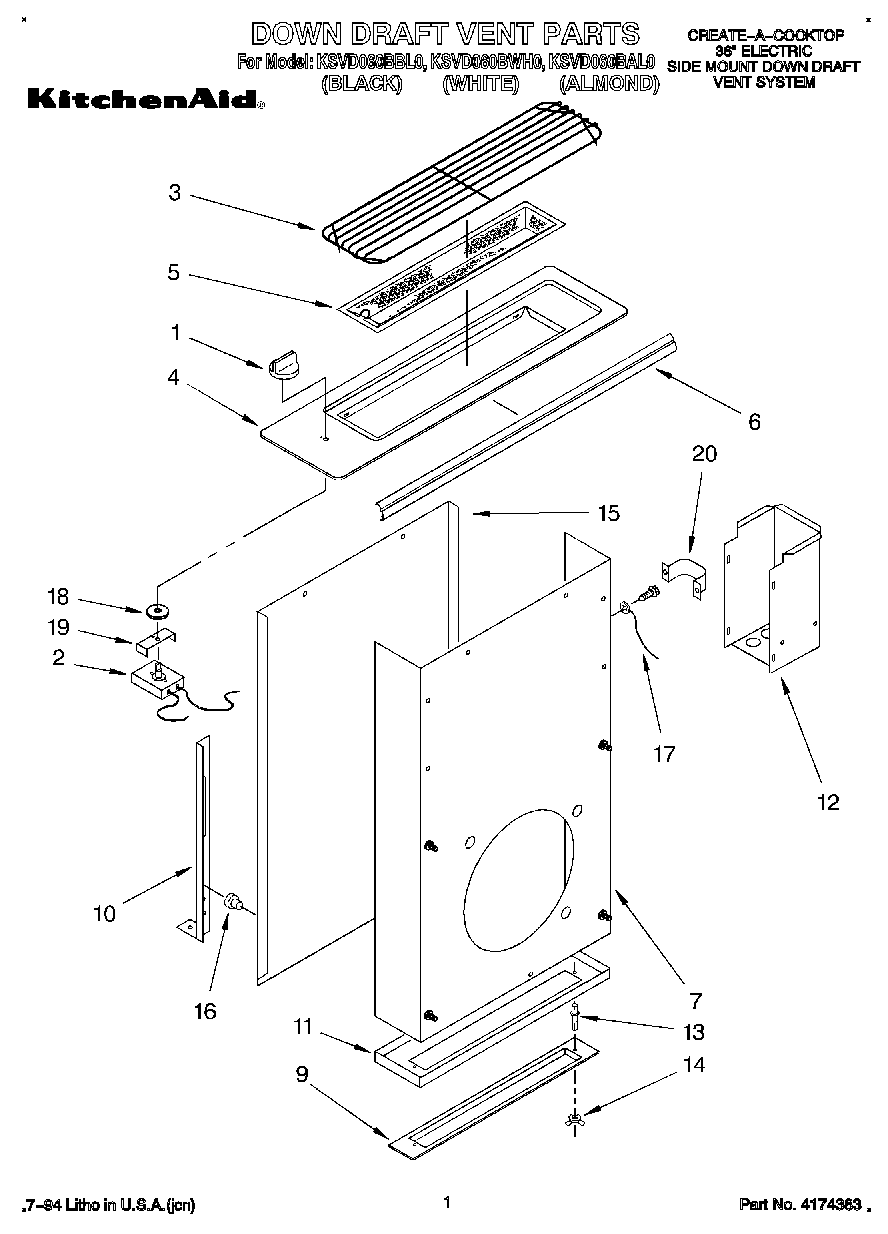

Position	Product
	Installation Instructions
	Use & Care Guide
1	Knob, Control (Black)
1	Knob, Control (White)
1	Knob, Control (Almond)
2	Switch, Control
3	Grate, Vent (Stainless Steel)
3	Grate, Vent (Black Porcelin)
4	Top, Vent (Black)
4	Top, Vent (Almond)
4	Top, Vent (White)
5	Filter, Grease (Aluminum)
5	Filter, Grease (Black)
6	Trim, Extrusion (White)
6	Trim, Extrusion (Almond)
6	Trim, Extrusion (Black)
7	Panel, Front
9	Trap, Grease
10	Leg, Mounting (Right Hand)
10	WPL 312318
10	Leg, Mounting (Left Hand)
11	Cover, Bottom
12	Cover, Capacitor
13	Stud, Mounting
14	Wingnut
15	Cover, Back
16	Insert, Rear
16	Screw (6)
17	Lockwasher (3)
17	Wire, Grounding
17	Screw
18	WP3188425 Whirlpool Seal Switch
19	Plate, Mounting
20	Bracket, Capacitor
