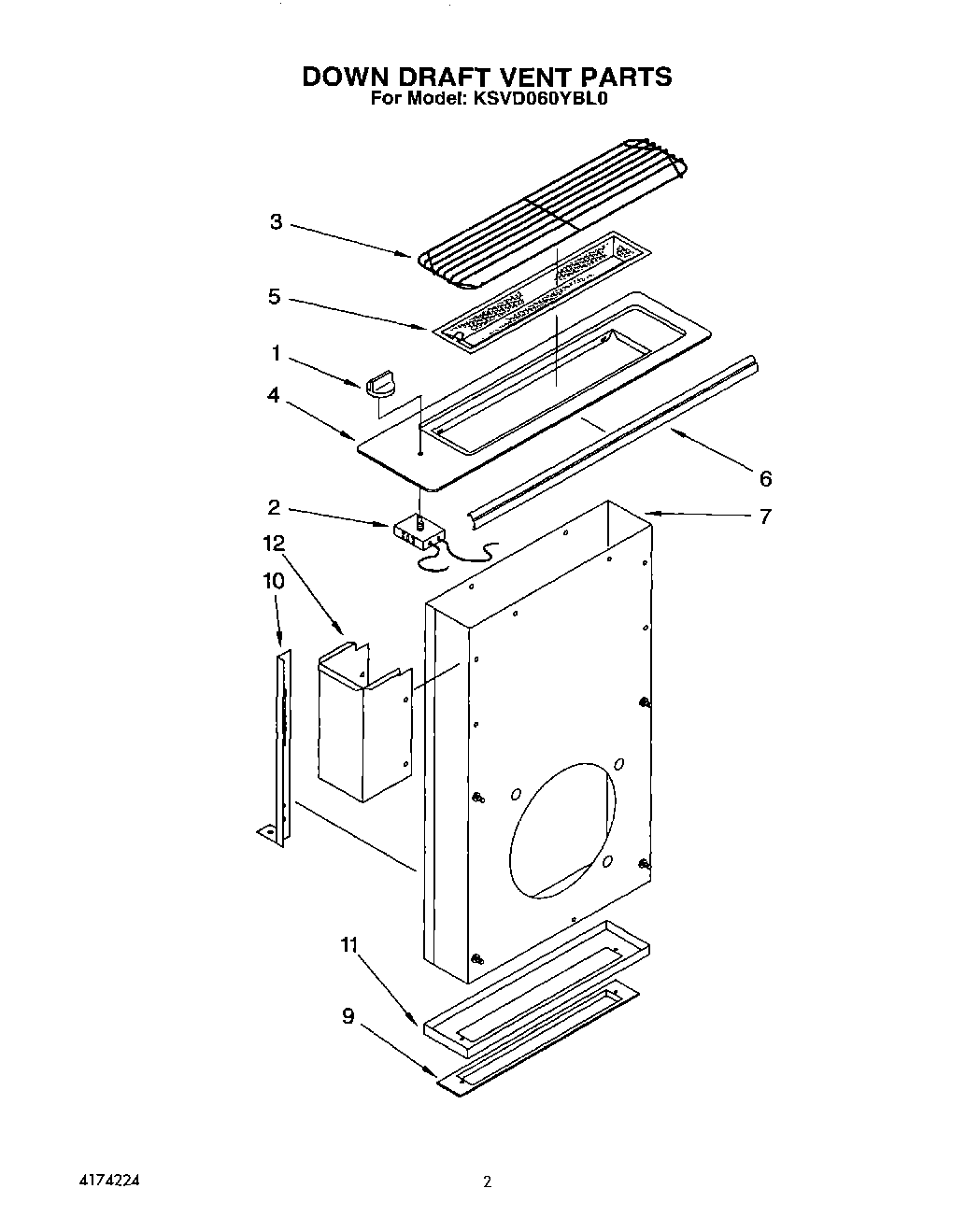

KSVD060YBL0 02 – SECTION

KSVD060YBL0 02 – SECTION

Written by

in

KSVD060YBL0 02 – SECTION

Products

PositionProduct
1Knob, Control (Almond)
1Knob, Control (White)
1Knob, Control (Black)
2Switch, Control
3Grate, Vent (Stainless Steel)
3Grate, Vent (Black Porcelin)
4Top, Vent (Black)
4Top, Vent (White)
4Top, Vent (Almond)
5Filter, Grease (Black)
5Filter, Grease (Aluminum)
6Trim, Extrusion (Black)
6Trim, Extrusion (White)
6Trim, Extrusion (Almond)
7Housing
9Trap, Grease
10Leg – LH
10Leg – RH
11Cover, Bottom
12Cover, Capacitor
