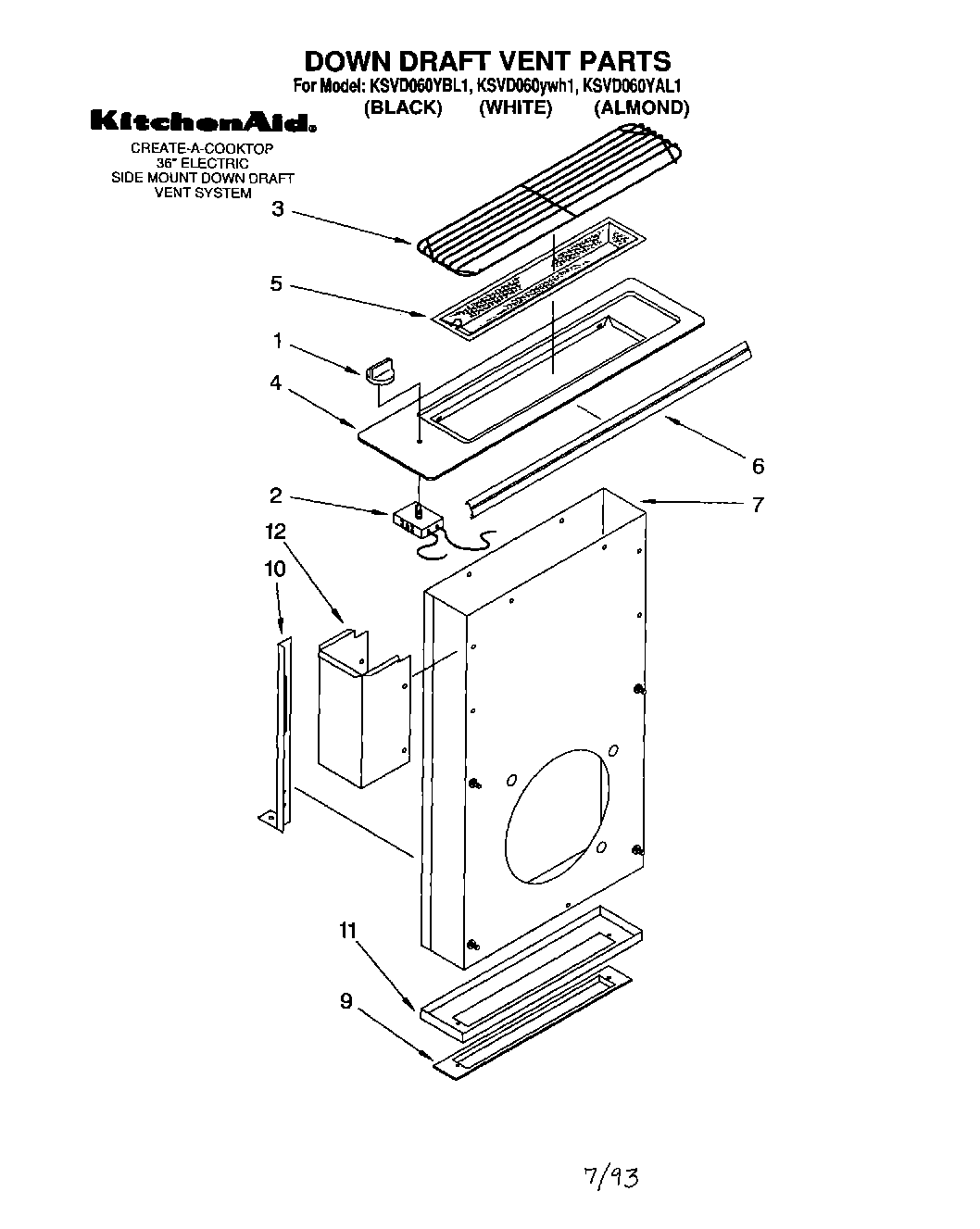

| 1 | Knob, Control (Almond) |
| 1 | Knob, Control (White) |
| 1 | Knob, Control (Black) |
| 2 | Switch, Control |
| 3 | Grate, Vent (Stainless Steel) |
| 3 | Grate, Vent (Black Porcelin) |
| 4 | Top, Vent (Black) |
| 4 | Top, Vent (White) |
| 4 | Top, Vent (Almond) |
| 5 | Filter, Grease (Black) |
| 5 | Filter, Grease (Aluminum) |
| 6 | Trim, Extrusion (Black) |
| 6 | Trim, Extrusion (White) |
| 6 | Trim, Extrusion (Almond) |
| 7 | Housing |
| 9 | Trap, Grease |
| 10 | Leg - LH |
| 10 | Leg - RH |
| 11 | Cover, Bottom |
| 12 | Cover, Capacitor |
