KSVD060YWH0 02 – SECTION

Products

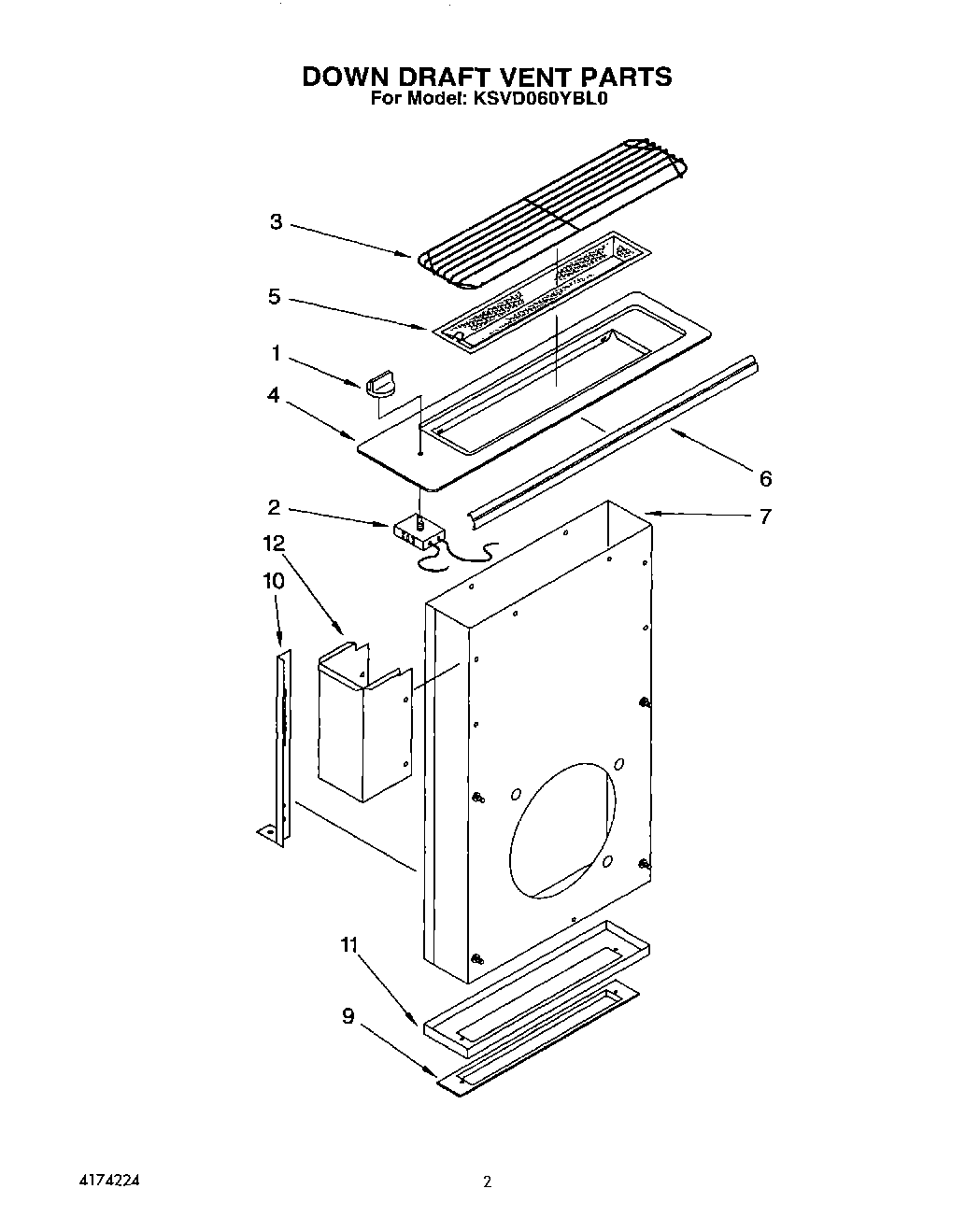

Position	Product
1	Knob, Control (Almond)
1	Knob, Control (White)
1	Knob, Control (Black)
2	Switch, Control
3	Grate, Vent (Stainless Steel)
3	Grate, Vent (Black Porcelin)
4	Top, Vent (Black)
4	Top, Vent (White)
4	Top, Vent (Almond)
5	Filter, Grease (Black)
5	Filter, Grease (Aluminum)
6	Trim, Extrusion (Black)
6	Trim, Extrusion (White)
6	Trim, Extrusion (Almond)
7	Housing
9	Trap, Grease
10	Leg – LH
10	Leg – RH
11	Cover, Bottom
12	Cover, Capacitor
