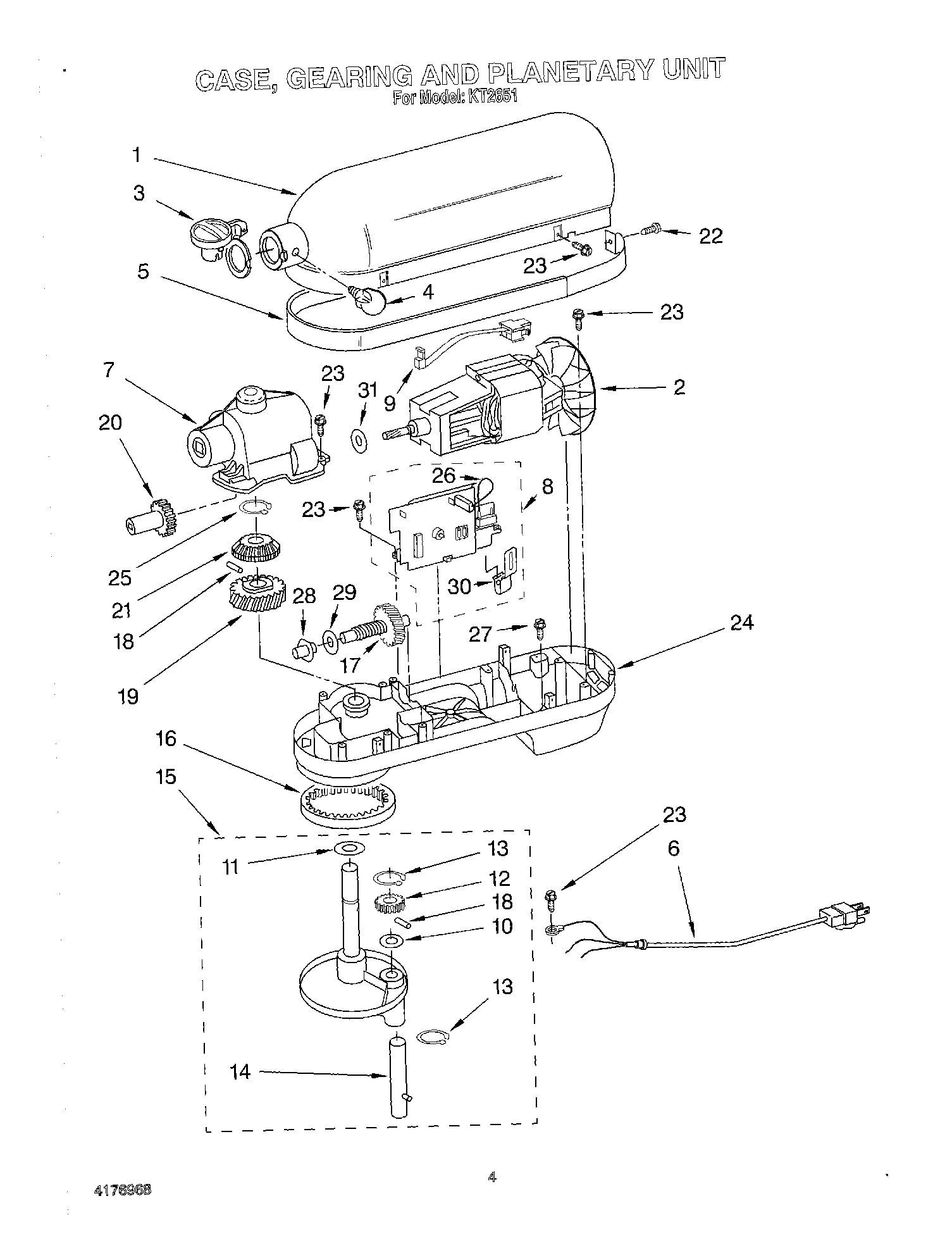

KT2651 04 – CASE, GEARING AND PLANETARY UNIT

KT2651 04 – CASE, GEARING AND PLANETARY UNIT

Written by

in

KT2651 04 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1MOTOR HOUSING (ALMOND CREAM/CREME)
1Motor Housing (Navy Blue)
1MOTOR HOUSING (CAVIAR)
1Motor Housing (Hunter Green)
19703532 Whirlpool Housing Assembly
1Motor Housing (Cobalt Blue)
1Motor Housing (Imperial Grey)
19705300 Whirlpool Housing Assembly
19705296 Whirlpool Housing
1Motor Housing (Majestic Yellow)
19703433 Whirlpool Housing
19703311 Whirlpool Housing Assembly
2Motor
3WP9703315 Whirlpool Hub Cap
4WP9709196 Whirlpool Screw
5Trim Band KD “Custom“ (Gray & White)
5Trim Band KD “Custom“ (Buff & Almond Creme)
59708323 Whirlpool Trim Band
6Power Cord (White)
6Power Cord (Black)
78212396 Whirlpool Housing
8Control Assembly (Buff Knob)
8Control Assembly (Grey Knob)
8Control Assembly (Black Knob)
9WP9706648 Whirlpool Speed Control
10Washer
11W11084660 Whirlpool Washer
12W11133646 Whirlpool Gear
13WP9703438 Whirlpool Snap Retaining Ring
14Agitator Shaft
15PLANETARY-Cobalt Blue
15PLANETARY-Caviar
15PLANETARY-Navy Blue
159708181 Whirlpool Planetary
15PLANETARY-Hunter Green
15WP9708174 Whirlpool Planetary
15WP9708175 Whirlpool Planetary Gear
159708178 Whirlpool Planetary
15WP9708180 Whirlpool Planetary Gear
15WP9708176 Whirlpool Planetary Mixer
15WP9708172 Whirlpool Planetary Assembly
15WP9708173 Whirlpool Planetary Gear
16W11181966 Whirlpool Gear
17WP9709231 Whirlpool Gear Assembly
18WP9707223 Whirlpool Dowel Pin
19GEAR
21W11192795 Whirlpool Gear
22W10853069 Whirlpool Screw
23WP3400814 Whirlpool Screw
24WP9706047 Whirlpool Gearcase
249706311 Whirlpool Gearcase
24LOWER GEARCASE-Caviar
249706301 Whirlpool Gearcase
249706321 Whirlpool Gearcase
24WPL 9705331
24WPL 9703427
24WPL 9705327
24WPL 9705329
24WPL 9705330
24LOWER GEARCASE-Imperial Gray
25WP9703680 Whirlpool Retainer Ring
26Jumper Wire
27W10913677 Whirlpool Screw
28Bearing, Worm Gear (2)
29Thrust Washer
30Clip
31FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
31PASTA MAKER PLATES (SNPA)
31PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
31W11200218 Whirlpool Grease Filter
31Food Tray (FT)
31SAUSAGE STUFFER KIT (SSA)
31CAN OPENER (CO)
31JUICER (JE)
31FOOD GRINDER (FG-A)
31FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
31Grain Mill (GM-A)
31ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
3167500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
31WPL 9705607
