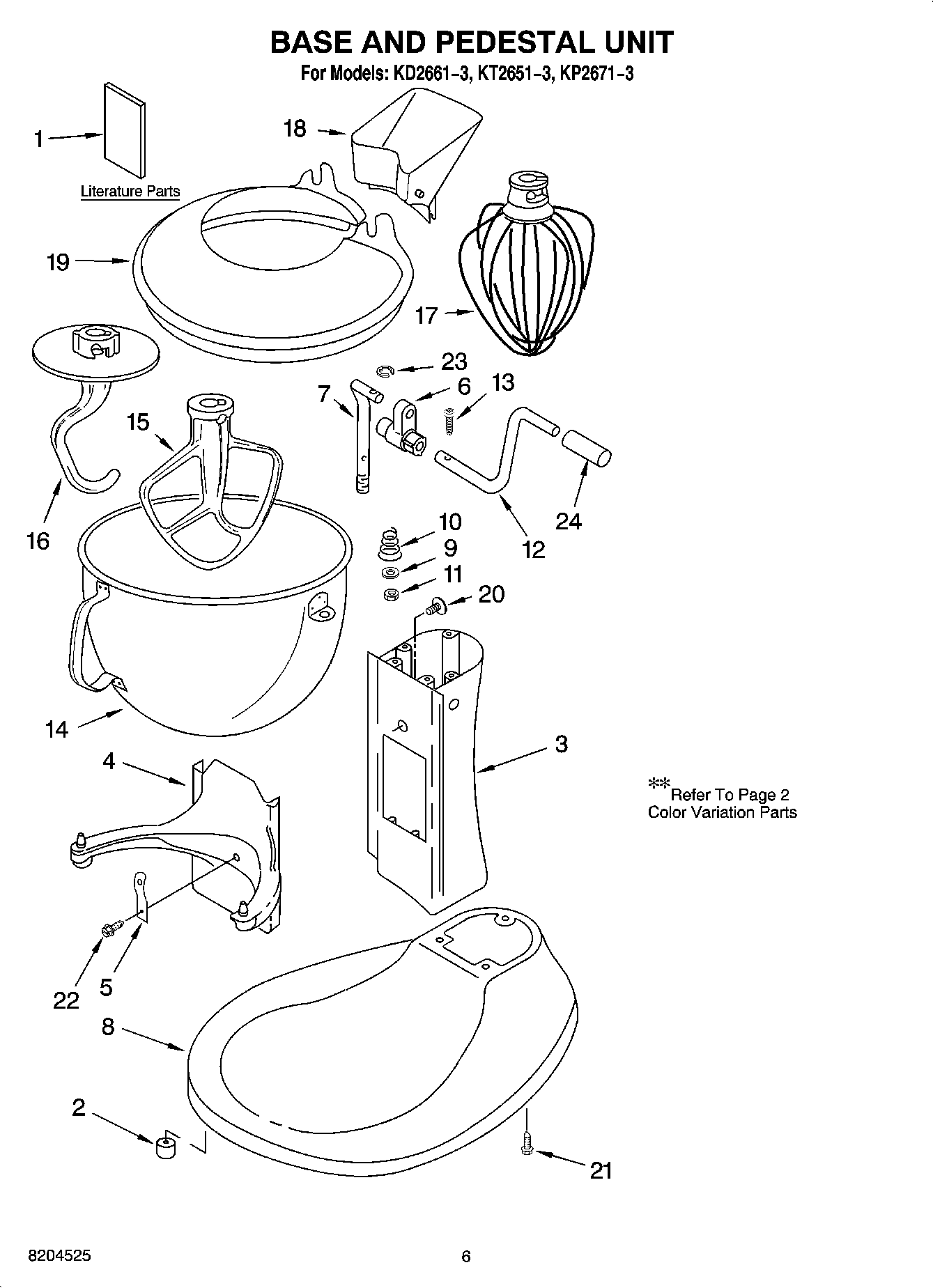

KT2651-3 03 – BASE AND PEDESTAL UNIT ACCESSORY PARTS

KT2651-3 03 – BASE AND PEDESTAL UNIT ACCESSORY PARTS

Written by

in

KT2651-3 03 – BASE AND PEDESTAL UNIT ACCESSORY PARTS

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Use & Care Guide)
28211628 Whirlpool Foot Assembly
3Column Assembly
4Bowl Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
8Base And Foot Supports
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP3400814 Whirlpool Screw
14WPW10245251 Whirlpool Mixer Bowl
15W11646967 Whirlpool Mixer Beater
15WPW10672616 Whirlpool Mixer Beater
16WPW10674620 Whirlpool Dough Hook
16W11319616 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
19WPW10617049 Whirlpool Pour Shelf
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24W11501449 Whirlpool Handle Assembly
24FOOD GRINDER (FG-A)
24JUICER (JE)
2467500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
24ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
24Grain Mill (GM-A)
24PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
24FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
24SAUSAGE STUFFER KIT (SSA)
24PASTA MAKER PLATES (SNPA)
24W11200218 Whirlpool Grease Filter
24Food Tray (FT)
24CAN OPENER (CO)
24FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
