KTHC18KBWH00 04 – SHELF, LIT/OPTIONAL

KTHC18KBWH00 04 – SHELF, LIT/OPTIONAL

Written by

in

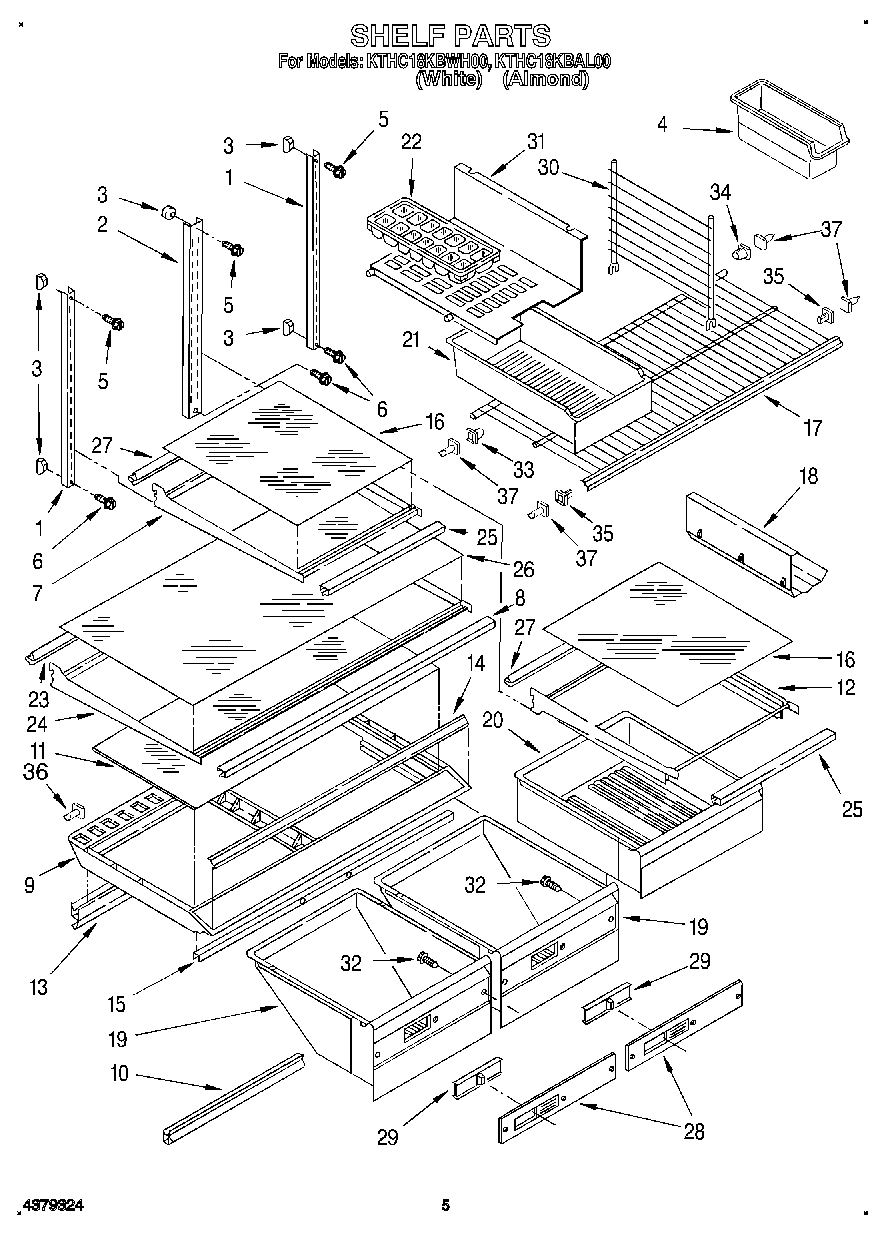

KTHC18KBWH00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2168910
	WPL LIT2162463
	WPL LIT2161833
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Gasket, Shelf
9	Crisper Cover
10	Crisper, Gasket Front (2)
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Crisper, Gasket Rear (2)
14	Trim, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Wine & Egg Rack
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Shelf
24	Shelf, Full Cantilever
25	Gasket
26	Glass, Full Shelf
27	Retainer, Glass
28	Front, Pan
29	Slide, Front
30	Divider
31	Shelf, Ice Tray
32	Screw (6)
34	819091 Whirlpool Refrigerator Shelf Stud
35	Stud, Front R.S.
36	W10854959 Whirlpool Refrigerator Shelf Stud
37	606755 Whirlpool Refrigerator Bag
37	511873 Whirlpool Refrigerator Paint
37	350930 Whirlpool White Spray Paint
37	350942 Whirlpool Spray Paint
37	212643 Whirlpool Refrigerator Permagum Sealer
37	Almond (Uncut)
37	Leveler (Thinner)
37	WP72107 Whirlpool Touchup
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	833938 Whirlpool Refrigerator Terminal
37	876370 Whirlpool Refrigerator Insulation
37	WP503695 Whirlpool Refrigerator Sealer
37	285006 Whirlpool Spray
37	Stud, Support
37	72032 Whirlpool Touch Up Paint Black
37	WPL 876029
37	WPL 799833
37	Door Reversal Instructions
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	TAPE, VINYL (3/4 X 108“)
37	WP542638 Whirlpool Refrigerator Grease
37	WP505587 Whirlpool Refrigerator Sealer
37	350956 Whirlpool Spray Assembly
