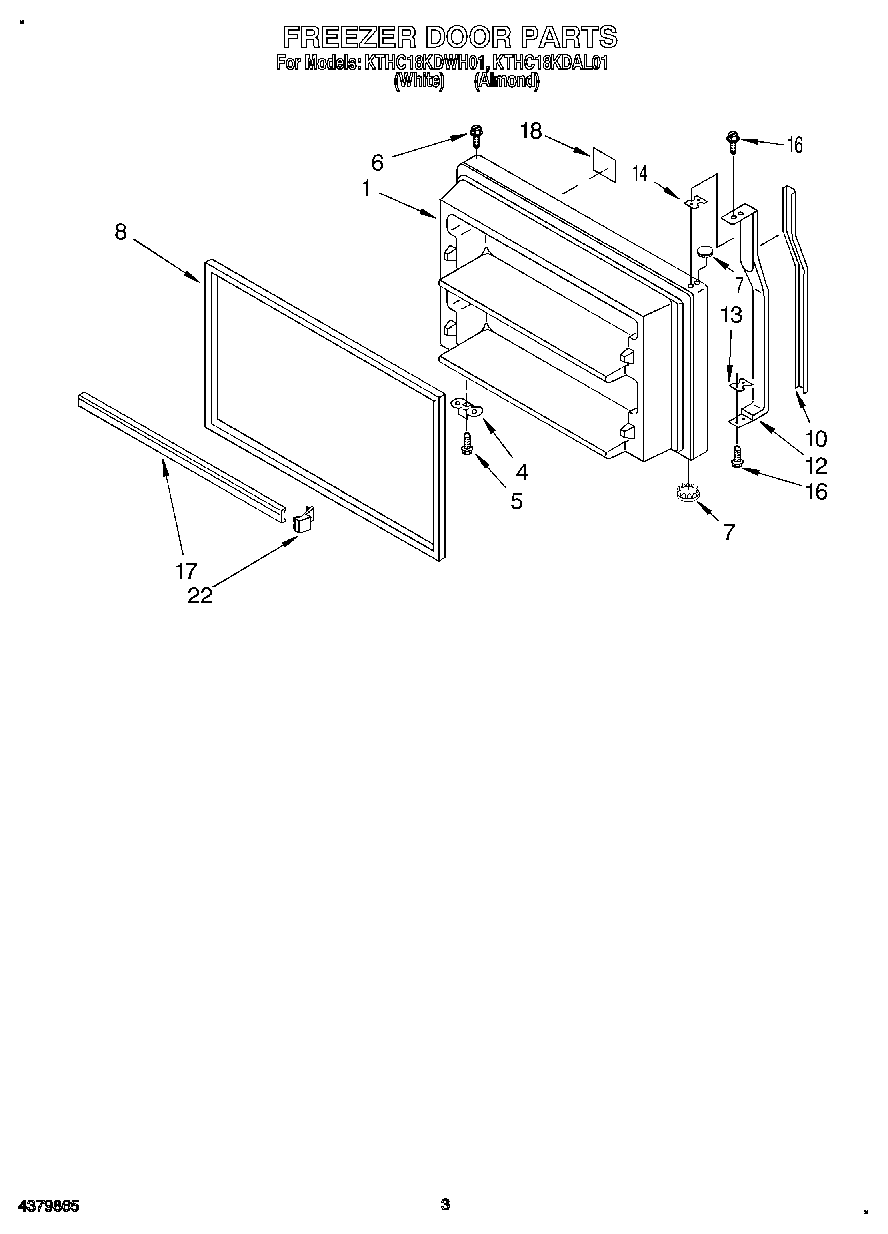

KTHC18KDAL01 02 – FREEZER DOOR

Products

Position	Product
1	Panel, Freezer Door (Includes Item 8) (Almond)
1	Panel, Freezer Door (Includes Item 8) (White)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic (Service)
10	Insert, Handle (Almond)
10	Insert, Handle (White)
12	Handle
13	Shim, Bottom
14	Spacer, Handle
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate (Almond Model)
18	Nameplate (White Model)
22	ENDCAP
