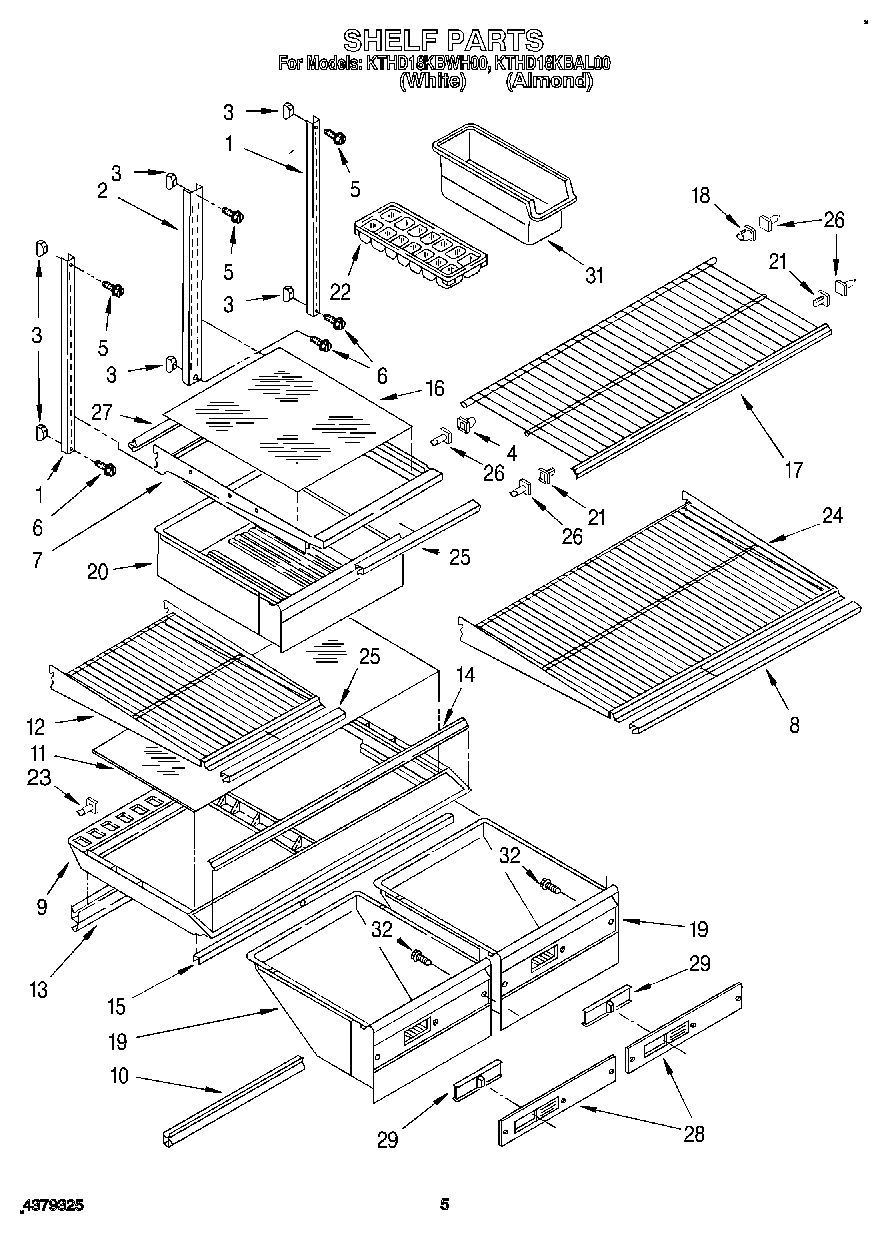

KTHD18KBAL00 04 – SHELF, LIT/OPTIONAL

KTHD18KBAL00 04 – SHELF, LIT/OPTIONAL

Written by

in

KTHD18KBAL00 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	WPL LIT1126439
	WPL LIT2168910
	WPL LIT2162463
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Pan Shelf, Cantilever
8	Trim, Shelf
9	Crisper Cover
10	Crisper, Gasket Front (2)
11	Glass, Crisper Cover
12	Shelf, Cantilever
13	Crisper, Gasket Rear (2)
14	Trim, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	819091 Whirlpool Refrigerator Shelf Stud
19	Pan, Crisper
20	Pan, Meat
21	Stud, Front R.S.
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	W10854959 Whirlpool Refrigerator Shelf Stud
24	Shelf, Full Cantilever
25	Trim, Shelf
26	Stud, Support
27	Retainer, Glass
28	Front, Pan
29	Slide, Front
31	WP982704 Whirlpool Refrigerator Container
32	511873 Whirlpool Refrigerator Paint
32	350942 Whirlpool Spray Paint
32	Almond (Uncut)
32	212643 Whirlpool Refrigerator Permagum Sealer
32	Leveler (Thinner)
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	350956 Whirlpool Spray Assembly
32	350930 Whirlpool White Spray Paint
32	606755 Whirlpool Refrigerator Bag
32	833938 Whirlpool Refrigerator Terminal
32	Door Reversal Instructions
32	72032 Whirlpool Touch Up Paint Black
32	285006 Whirlpool Spray
32	WPL 876029
32	WPL 799833
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	TAPE, VINYL (3/4 X 108“)
32	WP542638 Whirlpool Refrigerator Grease
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	876370 Whirlpool Refrigerator Insulation
32	Screw (6)
